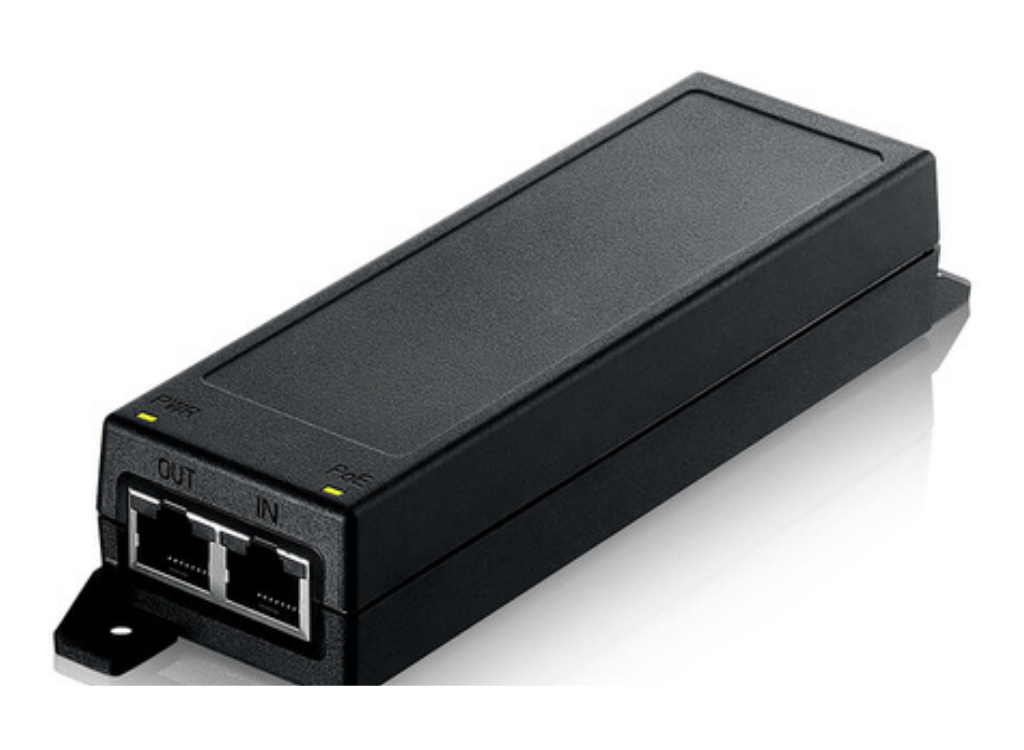

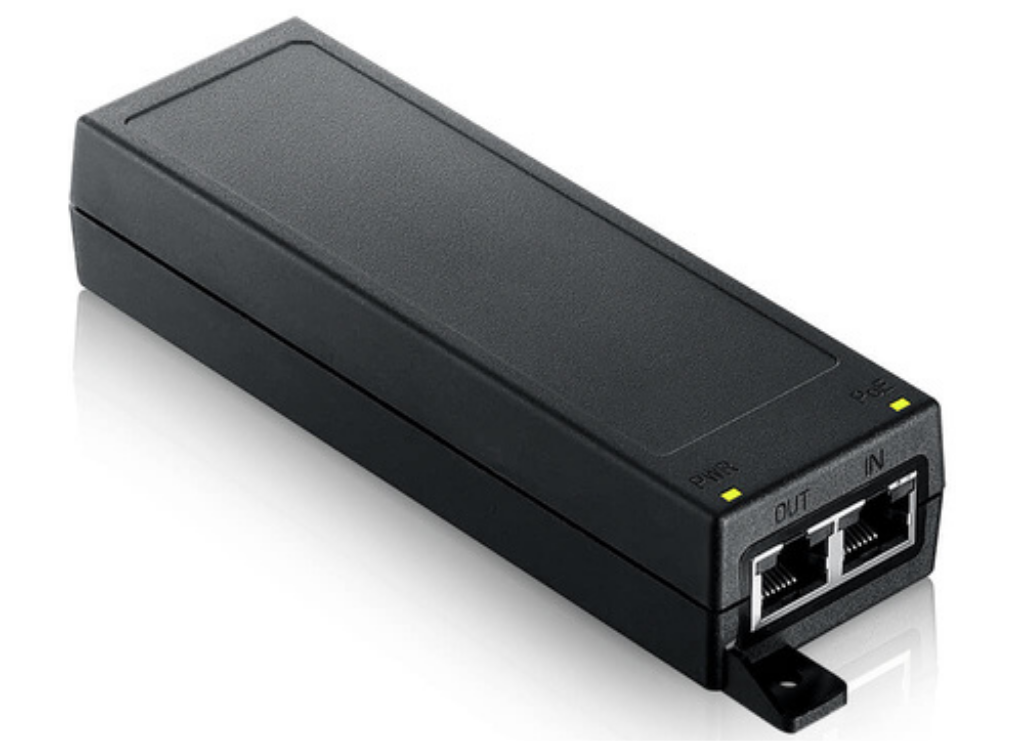

Zyxel PoE Adapter Gigabit Ethernet, 1000 Mbit/s | POE12-3PD-ZZ0101F

• Description
• Specifications
• Downloads

• Zyxel PoE Adapter Gigabit Ethernet, 1000 Mbit/s | POE12-3PD-ZZ0101F

  The PoE12-3PD is a Gigabit PoE Extender designed for point to multipoint
  PoE applications, which effortlessly extend the range of power and data
  connectivity when your devices are located at a distance that far away from
  power source or connection to a PoE Switch. It features four RJ-45 Gigabit
  Ethernet ports, offering one (1) PoE++ PoE input port with up to 60W power
  input and three PoE output to your devices. Instead of connecting to an AC
  adapter, connecting via a PoE switch enables better visibility for network
  management to cover the edge of your network. It features three PoE+ ports
  to power a variety of PoE devices, including IP cameras, VoIP handsets, IoT
  device, Sensors, PoE switches and wireless access points. PoE12-3PD is good
  for residential and commercial network environment





• Category	Specification
  Ethernet Interface	Gigabit Ethernet
  Ethernet LAN Data Rates	1000 Mbit/s
  Cabling Technology	10/100/1000
  Power over Ethernet (PoE)	Yes
  Networking Standards	IEEE 802.3at, IEEE 802.3bt
  Auto MDI/MDI-X	Yes
  MAC Address Table	2000 entries
  Packet Buffer Memory	128 MB
  Transmission Method	tcp
  Supported Network Protocols	ip
  Compliance Industry Standards	IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
  Duplex System	Full
  Cable Types Supported	Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e
  Web-based Management	Yes
  Firmware Upgradeable	Yes
  Syslog	No
  Forwarding Rate	8000 Mpps
  Operational Conditions	Operating temp: -4 – 122 °F, Humidity: 10 – 95%
  	Storage temp: -40 – 70 °C, Humidity: 10 – 95%
  Physical Dimensions	Width: 180 mm, Depth: 99 mm, Height: 36 mm, Weight: 257 g
  Packaging Data	Package length: 21.4 cm, Width: 125 mm, Depth: 47 mm, Weight: 114 g, Volume: 1257 cm³, Type: Box
  Packaging Content	Number of products: 24 pc(s), Wall mounting kit: Yes, AC adapter: No, Power cord: No, Quick installation guide: Yes, Manual: No
