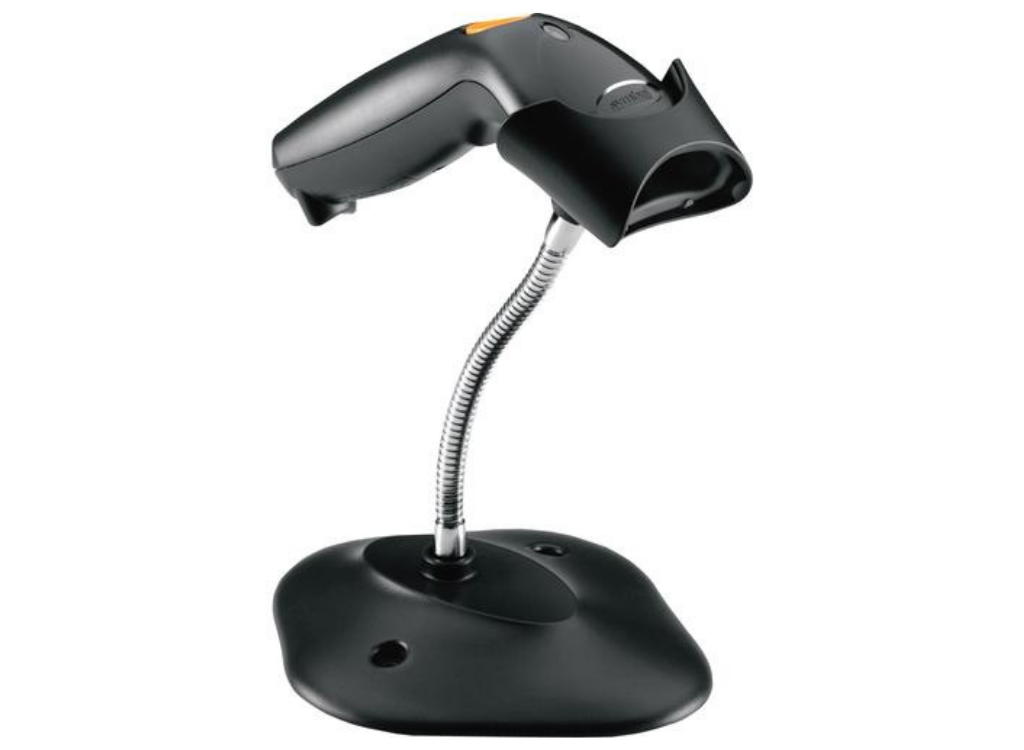

Zebra Symbol LS1203 Retail, Industrial Handheld Barcode Scanner Kit – Cable Connectivity

• Description
• Specifications

• Zebra Symbol LS1203 Retail, Industrial Handheld Barcode Scanner Kit – Cable Connectivity

  This bi-directional LS1203 hand-held scanner handles all 1D bar codes and is ideal for small retailers. It delivers the functionality, features and reliability needed to improve operational efficiencies from the checkout line to the storeroom. It minimises manual key input – ensuring accuracy in all customer transactions – and it automates paper-based inventory processes. The device easily integrates multiple interfaces to help ensure connectivity to a host and PC system.

  Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores

  Allows productive and precise reading of 1D barcodes

  Perfect for applications that require direct association with a workstation or a notebook

  With laser scanning technology you don’t have to use any additional lighting as it works effectively in low ambient lighting conditions too

  Scan barcodes with a staggering speed of 100 scan/s

• ures:

  Attribute	Details
  Host Interface	USB
  Input Voltage	5 V DC
  Power Source	DC
  Weight (Approximate)	121.9 g
  Form Factor	Handheld
  Length	180.3 mm
  Height	61 mm
  Width	61 mm
  Product Color	Twilight Black
  Product Type	Barcode Scanner Kit
  Manufacturer Part Number	LS1203-7AZU0100ER
  Manufacturer	Zebra Technologies Corporation
  Product Model	LS1203
  Product Name	Symbol LS1203 General Purpose Handheld Barcode Scanner
  Product Line	Symbol
  Brand Name	Zebra
  Application/Usage	Retail, Industrial
  Package Contents	Barcode Scanner, USB Cable, Stand
  Platform Supported	PC
  Environmentally Friendly	Yes
  Ingress Protection (IP) Rating	IP41
  Environmental Compliance	RoHS
  Barcode Symbology Supported	UPC/EAN, Code 39, Code 128, Codabar, Interleaved 2 Of 5, etc.
  Connectivity Technology	Cable
  Scanning Distance	203 mm
  Light Source	Laser
  Maximum Scan Resolution	0.13 mm
  Drop Specification	Withstands 5 ft./1.524m drops to concrete
  Depth of Field	Various, e.g., 0″ – 10.25″ at 26mil for 200% UPC
  Scan Pattern	Bi-directional
  Scan Rate	100 scan/s
  Stand Included	Yes
  Cable Type Included	USB
  Scanning Capability	1D
  Reading Angle (Skew)	60°
  Reading Angle (Pitch)	65°
  Reading Angle (Roll)	30°
  Maximum Ambient Light	86,111 lux
  Minimum Print Contrast	30%
  Minimum Element Resolution (Code 39)	0.13 mm
  Maximum Element Resolution (Code 39)	0.66 mm
