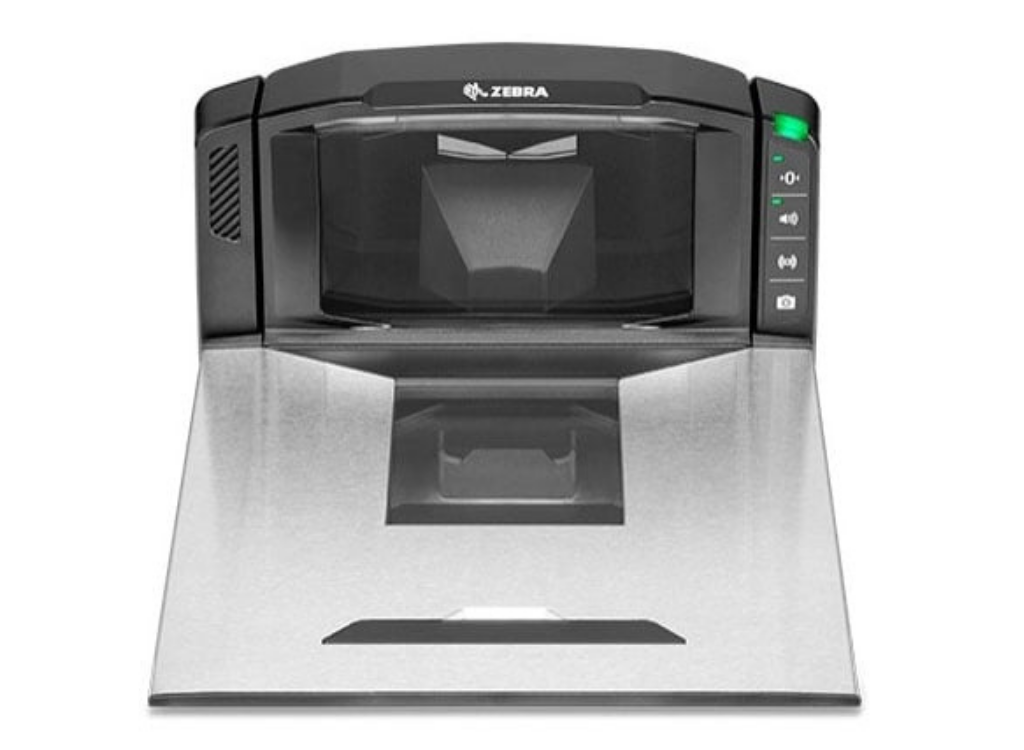

Zebra MP7000, Built-in Barcode Reader, 1D/2D

• Description
• Specifications

• Zebra MP7000, Built-in Barcode Reader, 1D/2D

  Meet the demands of your highest-volume point-of-sale lanes with Zebra’s MP7000 next generation multi-plane 1D/2D bioptic imager. The MP7000 is loaded with features that take scanning performance and simplicity to the next level for faster-than-ever checkout in cashier-manned and self-checkout lanes, increased cashier productivity and point of sale (POS) throughput — and a better shopping experience.

  FASTEST CHECKOUT PERFORMANCE
  Zebra’s most advanced scanning technology ensures the instant capture of virtually every electronic and printed barcode. The largest scan zone in this product class delivers true “swipe-and-go” capability. And with the optional customer side scanner, your customers can scan electronic and physical coupons and loyalty cards — instead of your cashiers.


  INDUSTRY-BEST TCO
  A smart investment, the MP7000 offers an unmatched industry-best total cost of ownership (TCO) by delivering maximum uptime and minimum power consumption – up to 60 percent less than competitive devices. Solid state technology means no moving parts, providing the fewest failure points in this class. With fewer parts and components to service, and an upper housing that can be removed without tools, repair and maintenance couldn’t be easier. And since the MP7000 is designed to fit into your existing cash wrap, you can easily upgrade your POS lanes with the very latest technology.

  INNOVATION AT THE POS
  A high-resolution 2.3 Megapixel color camera supports new applications that deliver major business benefits. With product recognition and identification applications, the camera can identify items like produce, enabling a shortened picklist for simpler and faster checkouts. You can also help reduce self-checkout related losses by verifying the proper barcode is scanned for an item.

• Feature	Details
  Harmonized System (HS) code	84716070
  Connectivity technology	Wired
  Standard interfaces	RS-232, RS-485, USB
  Operating relative humidity (H-H)	20 – 95%
  Storage temperature (T-T)	-40 – 70 °C
  Operating temperature (T-T)	0 – 40 °C
  Weight	5.5 kg
  Height	128 mm
  Width	292 mm
  Depth	102 mm
  LED indicators	Yes
  Product colour	Black, Stainless steel
  Image formats supported	BMP, JPEG
  Buzzer	Yes
  Keys quantity	4 keys
  Power consumption (typical)	5.5 W
  Input voltage	90 – 264 V
  Power consumption (standby)	3 W
  Input frequency	47 – 63 Hz
  Power source type	AC, RS-232, USB
  Type	Built-in bar code reader
  Scanner type	1D/2D
  Sensor type	CMOS
  Linear (1D) barcodes supported	Codabar, Code 128, Code 32, Code 39, Code 93, Discrete 2 of 5, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, Interleaved 2 of 5, JAN, MSI, Plessey, Trioptic, UPC-A, UPC-E
  2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Han Xin, Micro QR Code, MicroPDF417, PDF417, QR Code
