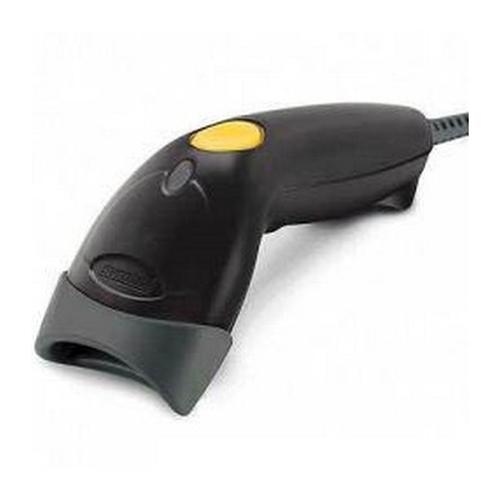

Zebra LS1203 Handheld Barcode Scanner 100 scan/s, 1D – Cable Connectivity

• Description
• Specifications

• Zebra LS1203 Handheld Barcode Scanner 100 scan/s, 1D – Cable Connectivity

  The Zebra LS1203 handheld scanner delivers high quality laser scanning, user-friendly ergonomics and durability at an affordable price. Designed to meet the needs of small businesses, the LS1203 provides the performance and features needed to significantly reduce data entry errors and boost productivity day in and day out in gift shops, boutiques, sporting goods, jewelers, video stores, florists and other small local retailers. Easy and comfortable to use, this high-value cost-effective scanner offers the reliability and investment protection that have made Zebra the global leader in handheld bar code scanning.

  Increased productivity from the start

  For point of sale check-out applications, the LS1203 provides the power to improve operational efficiencies right out of the box. The plug-and-play design virtually eliminates installation hassles. The intui-tive ergonomic design eliminates training requirements – employees are up and running in minutes.

  Manual keying is eliminated, reducing cashier errors and ensuring that your customers are charged the co-rrect amount. The result is faster checkout, increased customer satis-faction and a quick return on investment. In the back room, the LS1203 automates paper-based processes, such as inventory management, translating into more accurate information and less time spent on day-to-day administrative tasks – and more time spent serving customers.


  Durable construction combined with future-proofing

  With a single board construction and durable scan element, the LS1203 can easily stand up to daily use and those inevitable drops. With everyday operation you can count on, the LS1203 ensures mini-mal maintenance costs and maximum uptime. And integrated multiple interfaces provide the investment protection you need to ensure that the scanner you buy today will work with tomorrow’s POS system.

  Proven quality you can trust

  When you choose the LS1203, you receive the added assurance of purchasing a product from Zebra – the global leader in handheld bar code scanning with millions of scanners in use every day by the world’s largest retailers worldwide. And since even the most durable products require a maintenance plan and support strategy, Zebra has designed a full complement of service offerings to help you protect your investment and maintain peak performance.

• Feature	Details
  Host Interface	USB
  Input Voltage	5 V DC
  Additional Information	USB – 4 pin USB Type A Cable, Cable separate
  Package Contents	Scanner, USB Type-A Cable
  Certifications & Standards	UL1950, CSA C22.2 No. 950, EN60950/IEC950, FCC Part 15 Class B, ICES-003 Class B, EU EMC, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori, IEC Class 1, RoHS
  Environmentally Friendly	Yes
  Product Type	Barcode Scanner
  Manufacturer Part Number	LS12037AZU0100ZR
  Manufacturer	Zebra Technologies Corporation
  Product Model	LS1203
  Product Name	LS1203 Handheld Barcode Scanner
  Brand Name	Zebra
  Weight (Approximate)	121.9 g
  Form Factor	Handheld
  Height	61 mm
  Width	61 mm
  Depth	180.3 mm
  Product Color	Black
  Color Family	Black
  Barcode Symbology Supported	UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, RSS Variants, Chinese 2 of 5
  Connectivity Technology	Cable
  Light Source	Laser
  Depth of Field	0.5″ – 4″@5mil, 0″ – 6″@7.5mil, 0″ – 7.5″@10mil, 0″ – 8″@13mil – 100% UPC, 0″ – 10″@20mil
  Scan Pattern	Bi-directional
  Scan Rate	100 scan/s
  Image Sensor Type	Linear
  Scanning Capability	1D
