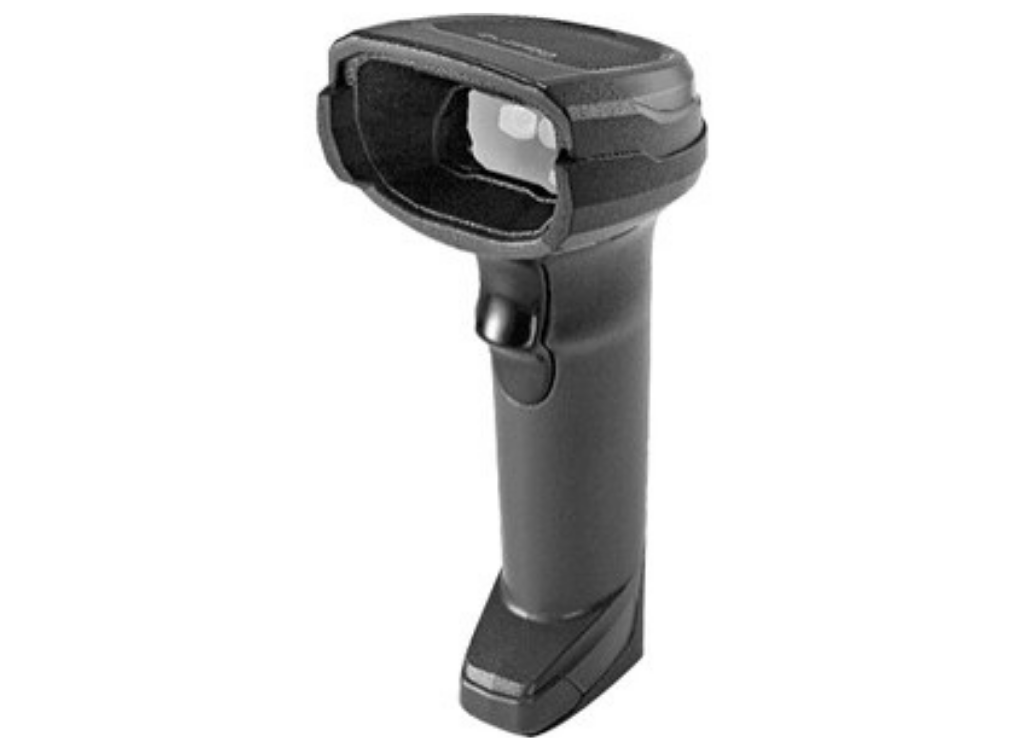

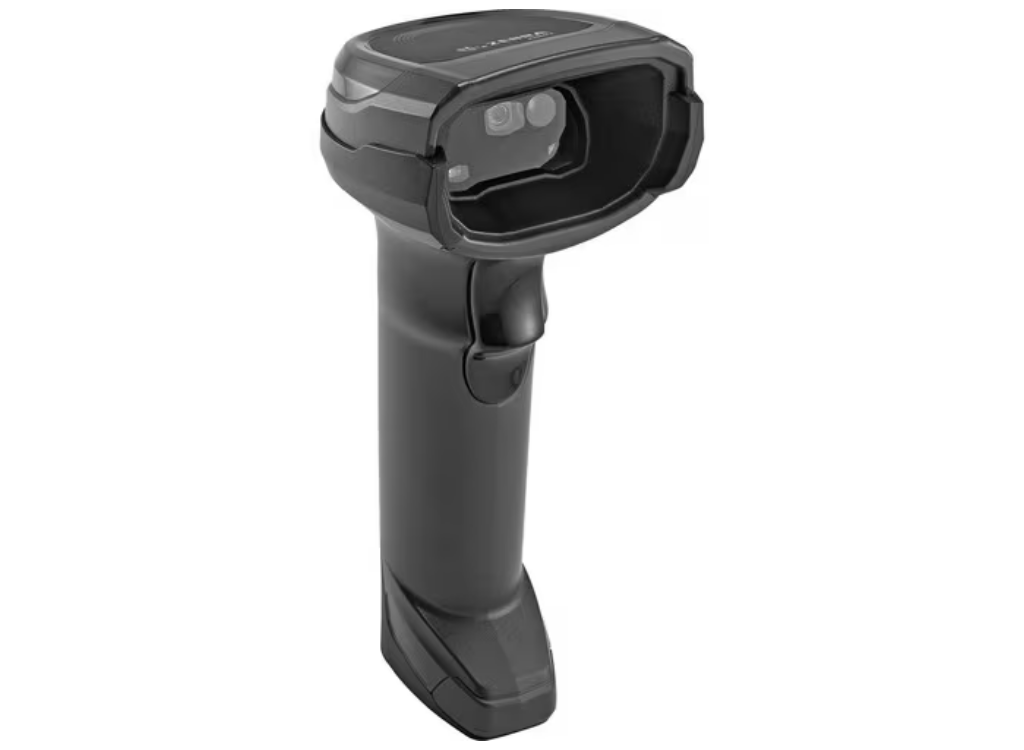

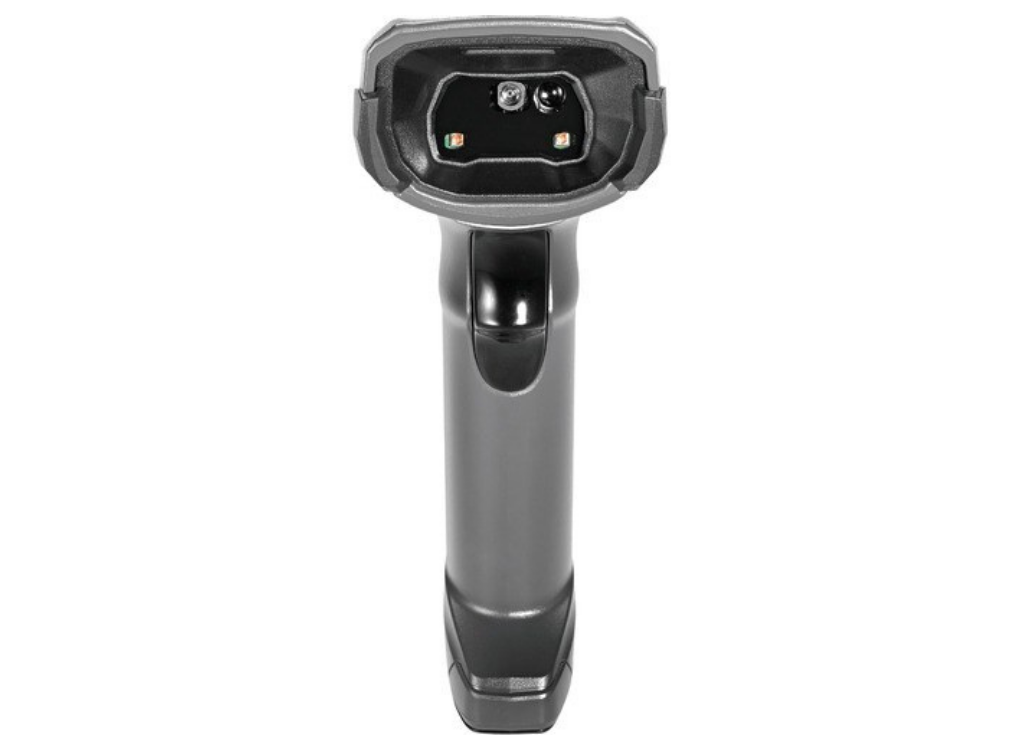

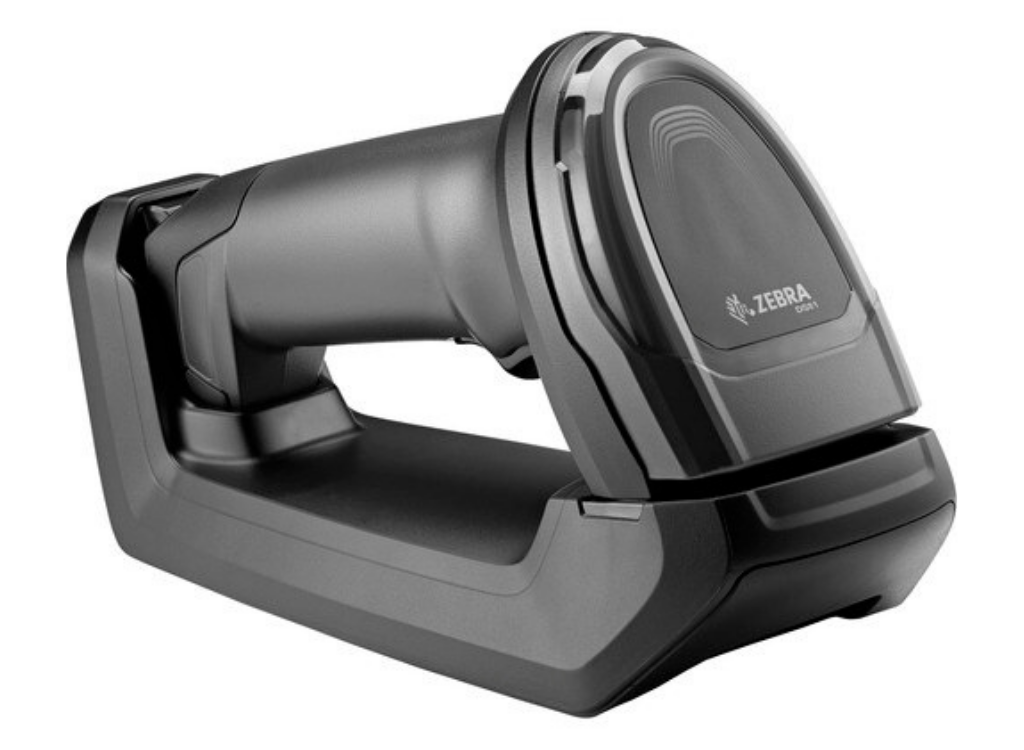

Zebra DS8178-SR Retail, Loyalty Program, Hospitality, Transportation, Logistics, Government Handheld Barcode Scanner

• Description
• Specifications

• Zebra DS8178-SR Retail, Loyalty Program, Hospitality, Transportation, Logistics, Government Handheld Barcode Scanner

  The ultimate in performance, innovation and manageability

  Checkout is the last chance to leave your shoppers with a good impression – and the quality of the checkout experience is heavily dependent upon the performance of the scanner you choose. If cashiers need to scan barcodes multiple times or enter unreadable barcodes manually, your checkout lanes can back up quickly, resulting in long lines, long wait times and cashiers that need to focus on
  ringing up merchandise as quickly as possible instead of focusing on shoppers to provide a better checkout experience. Now, you can give every shopper the ultimate last impression with the DS8100 Series handheld imager. The DS8100 Series rises above conventional imagers, delivering unprecedented scanning performance on 1D and 2D barcodes, innovative productivity enhancing tools, including swappable power sources – a PowerPrecision+ battery or PowerCapTM capacitor1 – plus unrivaled manageability tools to keep your scanners up, running and in the hands of your cashiers. Keep checkout lines moving and cashiers free to deliver a more personal checkout experience with the DS8100 Series – because when it comes to the checkout experience, only the best will do.

  Unprecedented Performance



  Unparalleled performance on virtually every barcode in any condition
  Only the DS8100 Series combines the power of an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology. With this unique combination of hardware and advanced algorithms, the DS8100 Series instantly captures the most problematic barcodes – including
  dense, poorly printed, crinkled, faded, distorted, dirty or damaged, as well as electronic barcodes on dimly lit displays.

  Superior scan range
  A scanning range up to 24 in./61 cm, a high resolution imaging sensor and a bright “aiming spot” improve checkout speed. Now, cashiers in busy checkout environments can easily scan items in a customer’s shopping cart – without leaving the cash-wrap.

  Innovation beyond the barcode
  Swappable power options reduce your investment risk Two interchangeable power options are available to power your devices: a PowerPrecision+ battery or a PowerCap capacitor. You can swap power options at any time on all models, right in your facility – no need to purchase separate battery-free and battery powered devices. And managing your power sources is easy. Since the PowerPrecision+ battery and PowerCap capacitor can report their model and serial numbers, you’ll always know which power source is in each scanner.

  On a single charge, the advanced PowerPrecision+ battery provides over three around-the-clock days of continuous scanning, plus a wealth of metrics for better battery management.

• Attribute	Details
  Bluetooth	Yes
  Weight (Approximate)	235.3 g
  Form Factor	Handheld
  Height	167.6 mm
  Width	66 mm
  Depth	106.7 mm
  Product Color	Twilight Black
  Product Type	Barcode Scanner Kit
  Manufacturer Part Number	DS8178-SR7U2100SFW
  Manufacturer	Zebra Technologies Corporation
  Product Model	DS8178-SR
  Product Name	DS8178-SR Barcode Scanner Kit
  Product Series	DS8100
  Brand Name	Zebra
  Application/Usage	Transportation, Government, Hospitality, Light/Clean Manufacturing, Logistics, Loyalty Program, Retail
  Environmentally Friendly	Yes
  Ingress Protection (IP) Rating	IP42
  Barcode Symbology Supported	1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma); 2D: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
  Connectivity Technology	Wireless
  Scanning Distance	934.72 mm
  Drop Specification	Designed to withstand 50 drops at 6.0 ft./1.8 m to concrete
  Scan Pattern	Linear
  Image Sensor Type	Imager
  Cable Type Included	USB
  Scanning Capability	1D, 2D
  Field of View (Horizontal)	42°
  Field of View (Vertical)	28°
  Reading Angle (Skew)	60°
  Reading Angle (Pitch)	60°
  Reading Angle (Roll)	360°
  Maximum Ambient Light	96,840 lux
  Minimum Print Contrast	16%
  Minimum Element Resolution (Code 39)	0.08 mm
  Maximum Element Resolution (Code 39)	0.51 mm
  Minimum Element Resolution (DataMatrix)	0.19 mm
  Maximum Element Resolution (DataMatrix)	0.25 mm
  Minimum Element Resolution (PDF417)	0.13 mm
  Maximum Element Resolution (PDF417)	0.17 mm
