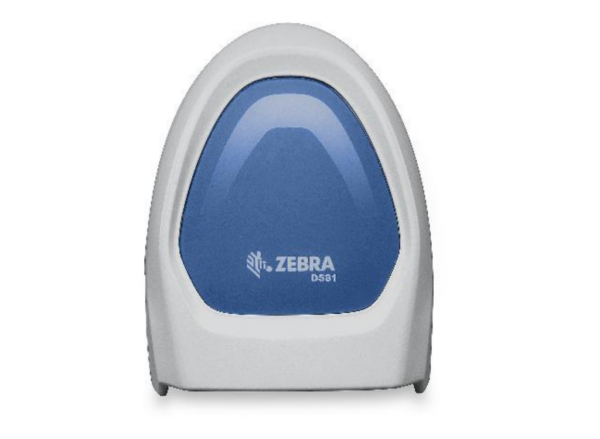

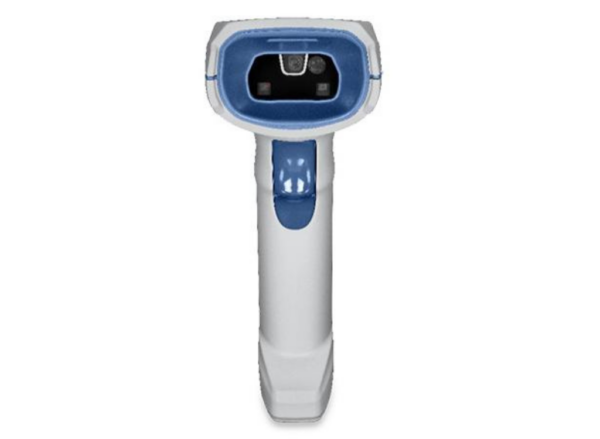

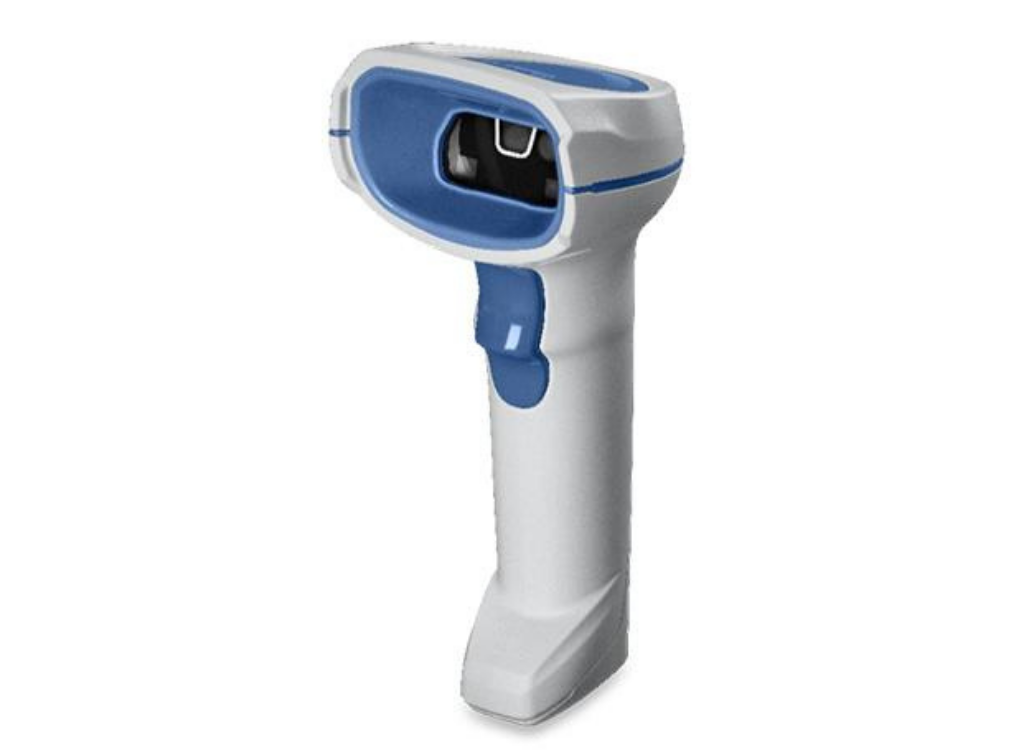

Zebra DS8178-HC Handheld Barcode Scanner 1D, 2D – Wireless Connectivity

• Description
• Specifications

• Zebra DS8178-HC Handheld Barcode Scanner 1D, 2D – Wireless Connectivity

  Whether you choose the corded or cordless model, the DS8100-HC Series provides the tools nurses and other healthcare personnel need to perform everyday duties faster and more accurately and provide their patients with the best of care – from medication administration to blood verification and administration, specimen collection, admission, inventory management and more.

  Creates a high ROI because of diminishment in workforce and descend inventory errors

  Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes

  Allows productive and precise reading of 1D barcodes

  With Bluetooth technology, you can scan barcodes and then transmit data from the base

  Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices

  Laser-free design provides high-performance scanning without the risk of eye injury

• Attribute	Details
  Bluetooth	Yes
  Package Contents	Standard cradle, presentation cradle, wall mount bracket, spare battery, spare PowerCap; document capture stands
  Environmentally Friendly	Yes
  Ingress Protection (IP) Rating	IP52
  Weight (Approximate)	235.3 g
  Form Factor	Handheld
  Height	167.6 mm
  Width	66 mm
  Depth	106.7 mm
  Product Color	Healthcare White
  Product Type	Barcode Scanner
  Manufacturer Part Number	DS8178-HCMF00BVMWW
  Manufacturer	Zebra Technologies Corporation
  Product Model	DS8178-HC
  Product Name	DS8178-HC Handheld Barcode Scanner
  Product Series	DS8100-HC
  Brand Name	Zebra
  Barcode Symbology Supported	1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) 2D: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
  Connectivity Technology	Wireless
  Light Source	LED
  Image Formats	JPEG, BMP, TIFF
  Drop Specification	Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
  Image Sensor Type	Imager
  Scanning Capability	1D, 2D
  Field of View (Horizontal)	48°
  Field of View (Vertical)	37°
  Reading Angle (Skew)	60°
  Reading Angle (Pitch)	60°
  Maximum Ambient Light	96,840 lux
  Minimum Print Contrast	16%
  Minimum Element Resolution (Code 39)	0.08 mm
