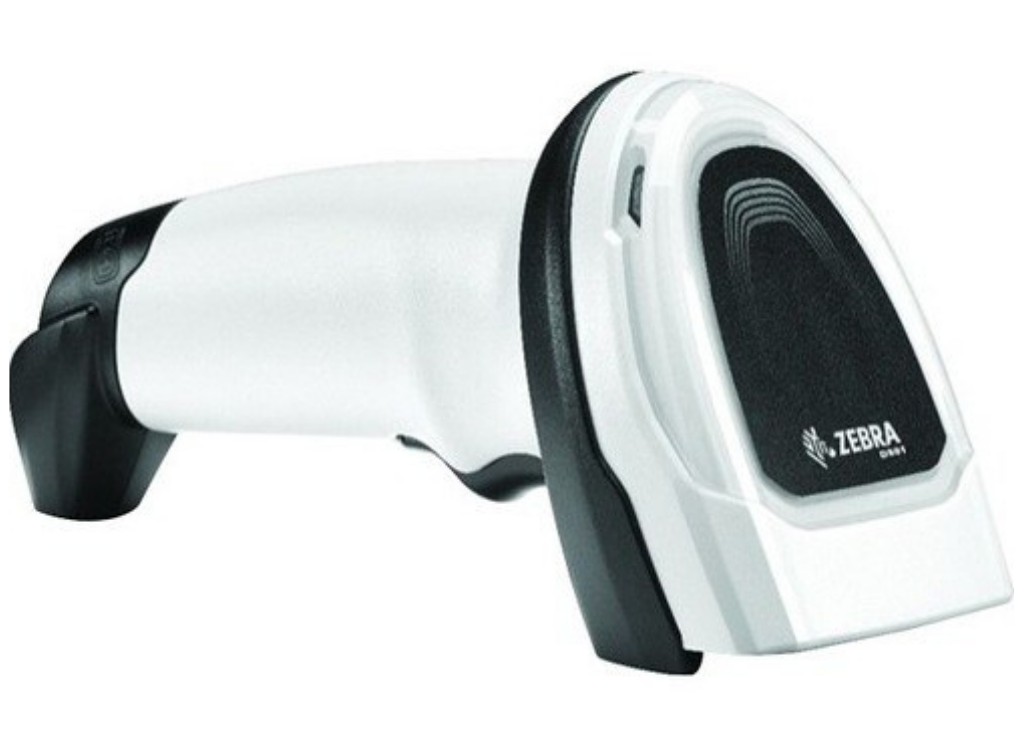

Zebra DS8108 Handheld Barcode Scanner 1D, 2D – Cable Connectivity

• Description
• Specifications

• Zebra DS8108 Handheld Barcode Scanner 1D, 2D – Cable Connectivity

  ULTIMATE IN PERFORMANCE

  A PowerPrecision Plus smart battery powers the DS8178 for up to 24 hours of continuous scanning on a single charge. The unique programmable charge indicator on the scanner lets you see at a glance when the battery needs charging, so you can ensure that your workers always start their day with a scanner that has ample power for the busiest shift. And with our proprietary Wi-Fi Friendly Mode, only from Zebra, you can confidently implement Bluetooth cordless models without creating interference on your wireless LAN (WLAN).

  At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability

  Streamline your business processes with an imager that point-shoots with high-performance scanning

  Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently

  Bluetooth technology – Allows compatibility with most of your smart devices

  Perfect for applications that require direct association with a workstation or a notebook

  LED aimer is a perfect choice for patient-facing applications

• Attribute	Details
  Bluetooth	Yes
  Host Interface	Keyboard Wedge, Serial, USB
  Package Contents	Standard cradle, presentation cradle, wall mount bracket, spare battery, spare PowerCap, document capture stands
  Environmentally Friendly	Yes
  Ingress Protection (IP) Rating	IP52
  Weight (Approximate)	153.1 g
  Form Factor	Handheld
  Height	167.6 mm
  Width	66 mm
  Depth	106.7 mm
  Product Color	Nova White
  Product Type	Barcode Scanner
  Manufacturer Part Number	DS8108-SR6U2100SGW
  Manufacturer	Zebra Technologies Corporation
  Product Model	DS8108
  Product Name	DS8108 Handheld Barcode Scanner
  Product Series	DS8100
  Brand Name	Zebra
  Barcode Symbology Supported	1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) 2D: PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
  Connectivity Technology	Cable
  Light Source	LED
  Image Formats	BMP, TIFF, JPEG
  Drop Specification	Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
  Image Sensor Type	Imager
  Scanning Capability	1D, 2D
  Field of View (Horizontal)	48°
  Field of View (Vertical)	37°
  Reading Angle (Skew)	60°
  Reading Angle (Pitch)	60°
  Maximum Ambient Light	96,840 lux
  Minimum Print Contrast	16%
  Minimum Element Resolution (Code 39)	0.08 mm
