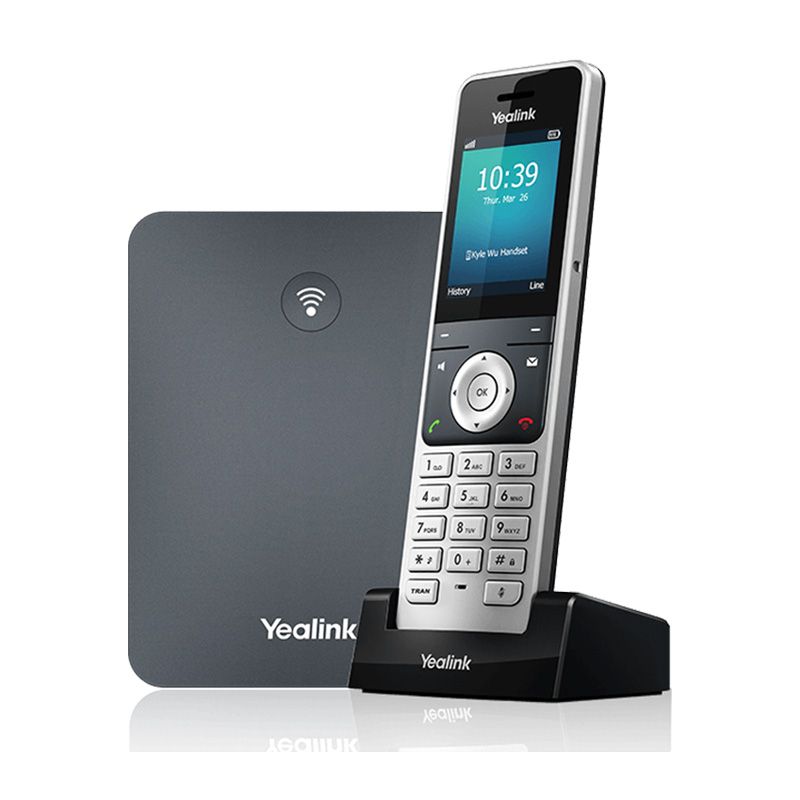

• Yealink W76P DECT Phone System
  • Scalable solution with superior performance
  • Optimized wireless communication experience for mobile working
  • Easy deployment and efficient management
  • Support Microsoft SIP Gateway
  • Seamlessly compatible with Yealink full-range DECT endpoints, ideal for small- and medium-sized business

  A High-performance Solution with Efficient Communication Network
  Supporting registration with up to 10 Yealink W56H DECT handsets, the W76P system is launched with robust processing capacity for up to 10 SIP accounts and 20 silmultaneous calls. More flexibility and mobility could be enabled through up to 6 optional repeaters for extended network coverage.

  Deliver Bright and Clear Voice to Fullfill Effectiveness Across Spaces
  Combining the professional handset W56H with Yealink new DECT base station W70B, the W76P delivers superb and stable audio quality in whether high-bandwith or poor network conditions by supporting a series of audio codecs. The Noise Reduction System also ensures the effectiveness of the conversations in complicated environments.

  Streamline the Provision and Management, Saving Your Labor and Time Costs
  The W76P supports efficient provisioning and effortless mass deployment with Yealink’s Redirection and Provisioning Service (RPS) and Boot mechanism to help realize remote deployment, maintenance and upgrade.
  Moreover, the new web portal for device management brings clear and intuitive interface to upgrade user experience.

  Yealink Full-range of DECT Devices Solutions
  Yealink W79P DECT IP phone system is also compatible with Yealink whole series of DECT endpoints including handsets, conference phones and DD phones, offering additional choices for building up wireless communication network in various workspaces across small and medium size business.

• Phone Features
  Up to 20 simultaneous calls	Screen saver
  Up to 10 handsets	Multilingual user interface
  Up to 10 VoIP accounts
  Up to 2 simultaneous calls/handset	Management
  Up to 6 repeaters/base station	Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
  Handset selection for receiving call	Auto-provision with PnP
  Handset and number selection for placing call	Handset upgrade: OTA (Over-The-Air)
  Paging, intercom, auto answer, dial plan	Configuration: browser/phone/auto-provision
  Call hold, call transfer, 3-way conference	Trace package and system log export
  Switching between calls
  Call waiting, mute, silence, DND	Audio Features
  Caller ID with name and number	Full-duplex speakerphone
  Anonymous call/Anonymous call rejection	Hearing Aid Compatibility (HAC) compliant
  Call forward: Always/Busy/No Answer	Receiver volume control: 5 steps
  Speed dial/Voicemail/Redial	Ringer volume control: 5 steps+off
  Message Waiting Indication (MWI)	Multiple advisory tones
  Music on hold (server-based)	Acoustic warning for low battery status
  Local phonebook for up to 1000 entries	DTMF
  Remote phonebook/LDAP/XML phonebook	Wideband codec: AMR-WB (optional), G.722
  Phonebook search/import/export	Narrowband codec: AMR-NB (optional), PCMU, PCMA, G.726, G.729, G.729A, iLBC
  100 call history per handset: All/Placed/Missed/Received/Forward	VAD, CNG, AGC, PLC, AJB
  Direct IP call without SIP proxy	AEC (supported by W56H)
  Reset to factory, reboot	Support VQ-RTCPXR (RFC6035), RTCP-XR
  Keypad lock, emergency call
  Broadsoft directory, BroadSoft call log	Network Features
  Broadworks feature key synchronization	SIP v1 (RFC2543), v2 (RFC3261)
  Shared Call Appearance (SCA)	SNTP/NTP
  XML browser	VLAN (802.1Q and 802.1P)
  Action URI	802.1x, LLDP
  	STUN Client (NAT Traversal)
  Personalization	UDP/TCP/TLS
  9 ringer melodies	IP assignment: Static/DHCP
  Screen saver	Support outbound proxy server backup
  Multilingual user interface
  	Security
  Management	Open VPN
  Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS	Transport Layer Security (TLS)
  Auto-provision with PnP	HTTPS (server/client), SRTP (RFC3711)
  Handset upgrade: OTA (Over-The-Air)	Digest authentication
  Configuration: browser/phone/auto-provision	Secure configuration file via AES encryption
  Trace package and system log export	Support SHA256/SHA512/SHA384
  	Three-level configuration mode: Admin/Var/User
  Audio Features	DECT
  Full-duplex speakerphone	Frequency bands:
  Hearing Aid Compatibility (HAC) compliant	1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US), 1902 – 1906 MHz (TH), 1910 – 1920 MHz (BR)
  Receiver volume control: 5 steps	Interface
  Ringer volume control: 5 steps+off	1 x RJ45 10/100M Ethernet port
  Multiple advisory tones	Power over Ethernet (IEEE 802.3af), Class 1
  Acoustic warning for low battery status	Headset jack (3.5 mm)
  DTMF
  Wideband codec: AMR-WB (optional), G.722	Physical Features
  Narrowband codec: AMR-NB (optional), PCMU, PCMA, G.726, G.729, G.729A, iLBC	Indoor Range: 50m (in ideal conditions)
  VAD, CNG, AGC, PLC, AJB	Outdoor Range: 300m (in ideal conditions)
  AEC (supported by W56H)	Standby Time: 400 hours (in ideal conditions)
  Support VQ-RTCPXR (RFC6035), RTCP-XR	Talk Time: 30 hours
  	2.4’’ 240×320 pixels color display
  Network Features	Desktop or wall mountable
  SIP v1 (RFC2543), v2 (RFC3261)	LCD backlit, key backlit
  SNTP/NTP	Energy-saving ECO mode/ECO Mode+
  VLAN (802.1Q and 802.1P)	12 key numerical keypad, 5 navigation keys, 2 softkeys, 6 function keys, 6 shortcut keys
  802.1x, LLDP	Three LED indicators on W70B:
  STUN Client (NAT Traversal)	– 1 x Registration LED
  UDP/TCP/TLS	– 1 x Network Status LED
  IP assignment: Static/DHCP	– 1 x Power Indicator LED
  Support outbound proxy server backup	External Yealink AC adapter: AC 100-240V Input and DC 5V/600mA Output
  	Color: Handset: Alabaster Silver ; Base: Classic Grey
  Security	Handset size: 175mm x 53mm x 20.3mm
  Open VPN	Base station size: 130mm x 100mm x 25.1mm
  Transport Layer Security (TLS)	Operating humidity: 10 ~ 95%
  HTTPS (server/client), SRTP (RFC3711)	Operating temperature: 0~+40°C (+32~104°F)
  Digest authentication
  Secure configuration file via AES encryption	Package Features
  Support SHA256/SHA512/SHA384	Package contents:
  Three-level configuration mode: Admin/Var/User	– W56H Handset
  	– W70B Base Station
  DECT	– Base Stand
  Frequency bands:	– USB Charger Cradle
  1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US), 1902 – 1906 MHz (TH), 1910 – 1920 MHz (BR)	– Two Power Adapters
  Interface	– Ethernet Cable
  1 x RJ45 10/100M Ethernet port	– Belt Clip
  Power over Ethernet (IEEE 802.3af), Class 1	– Rechargeable Battery
  Headset jack (3.5 mm)	– Quick Start Guide
  	Qty/CNT: 10 PCS
  Physical Features	Giftbox size: 205mm × 196mm × 95mm
  Indoor Range: 50m (in ideal conditions)	Carton meas: 495mm × 406mm × 223mm
  Outdoor Range: 300m (in ideal conditions)	N.W: 7.5 kg
  Standby Time: 400 hours (in ideal conditions)	G.W: 8.3 kg
  Talk Time: 30 hours
  2.4’’ 240×320 pixels color display
  Desktop or wall mountable
  LCD backlit, key backlit
  Energy-saving ECO mode/ECO Mode+
  12 key numerical keypad, 5 navigation keys, 2 softkeys, 6 function keys, 6 shortcut keys
  Three LED indicators on W70B:
  – 1 x Registration LED
  – 1 x Network Status LED
  – 1 x Power Indicator LED
  External Yealink AC adapter: AC 100-240V Input and DC 5V/600mA Output
  Color: Handset: Alabaster Silver ; Base: Classic Grey
  Handset size: 175mm x 53mm x 20.3mm
  Base station size: 130mm x 100mm x 25.1mm
  Operating humidity: 10 ~ 95%
  Operating temperature: 0~+40°C (+32~104°F)
  Package Features
  Package contents:
  – W56H Handset
  – W70B Base Station
  – Base Stand
  – USB Charger Cradle
  – Two Power Adapters
  – Ethernet Cable
  – Belt Clip
  – Rechargeable Battery
  – Quick Start Guide
  Qty/CNT: 10 PCS
  Giftbox size: 205mm × 196mm × 95mm
  Carton meas: 495mm × 406mm × 223mm
  N.W: 7.5 kg
  G.W: 8.3 kg
