Yealink MVC640-C4-F13 Native Microsoft Teams Rooms System For Medium Rooms

Yealink MVC640-C4-F13 Native Microsoft Teams Rooms System For Medium Rooms

• Description
• Specifications
• Downloads

• Microsoft Teams Rooms System for Medium-Sized Meeting Spaces: Yealink MVC640

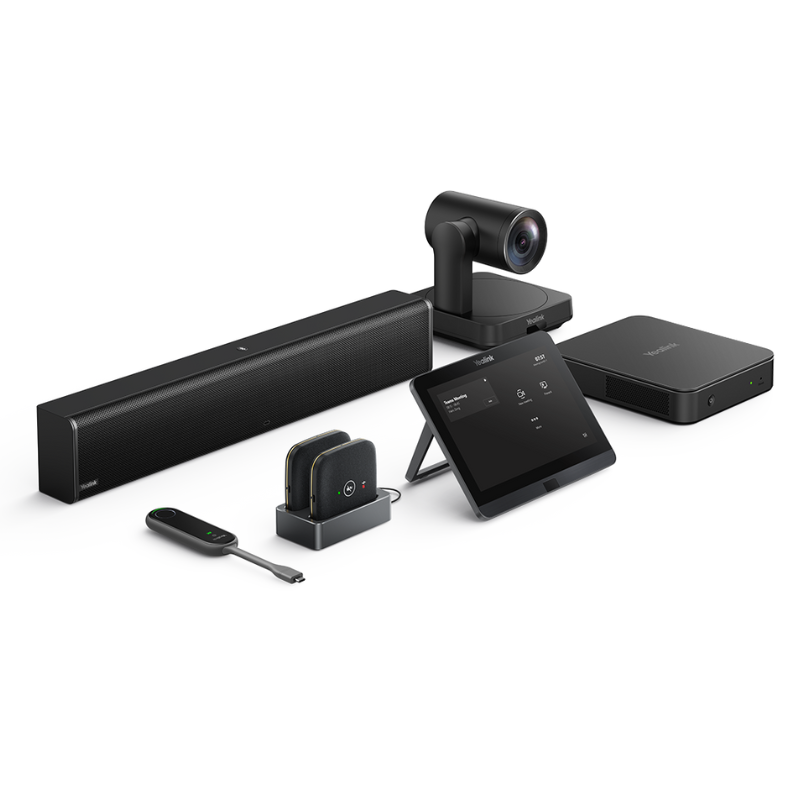

  The Yealink MVC640 is thoughtfully tailored for medium-sized conference rooms. It comprises the cutting-edge MINI-PC MCore Pro, the user-friendly MTouch E2 touch panel, and the high-performance 4K PTZ camera known as UVC84. Within this product lineup, you have the flexibility to select different microphone options to cater to the specific requirements of various meeting spaces. These options include the DECT wireless microphone CPW65 and the Wi-Fi wireless microphone VCM36-W.

  What sets the UVC84 apart in this lineup is its exceptional performance. It boasts a 4K lens with support for 12x optical zoom and 3x digital zoom, an 80° wide-angle view, and a pan-tilt mechanism that allows it to cover every nook and cranny of the conference room. The UVC84’s Auto-framing feature takes the guesswork out of camera positioning, liberating your attention to focus on the meeting content. Furthermore, with Yealink’s camera plug-in controller, you can easily set presets, make one-step adjustments, and position the camera precisely with minimal effort.

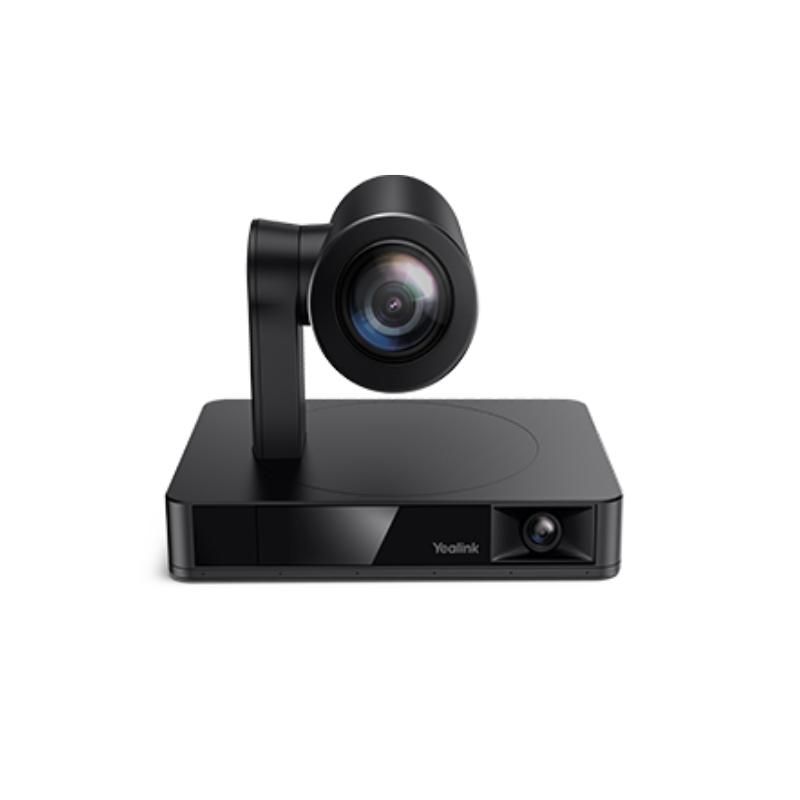

  Auto-Framing with UVC84
  The Yealink UVC84 camera automatically frames all meeting participants, allowing you to focus on the discussion. It also supports camera presets for effortless pan, tilt, and zoom adjustments, delivering clear 4K video calls with 12x optical zoom

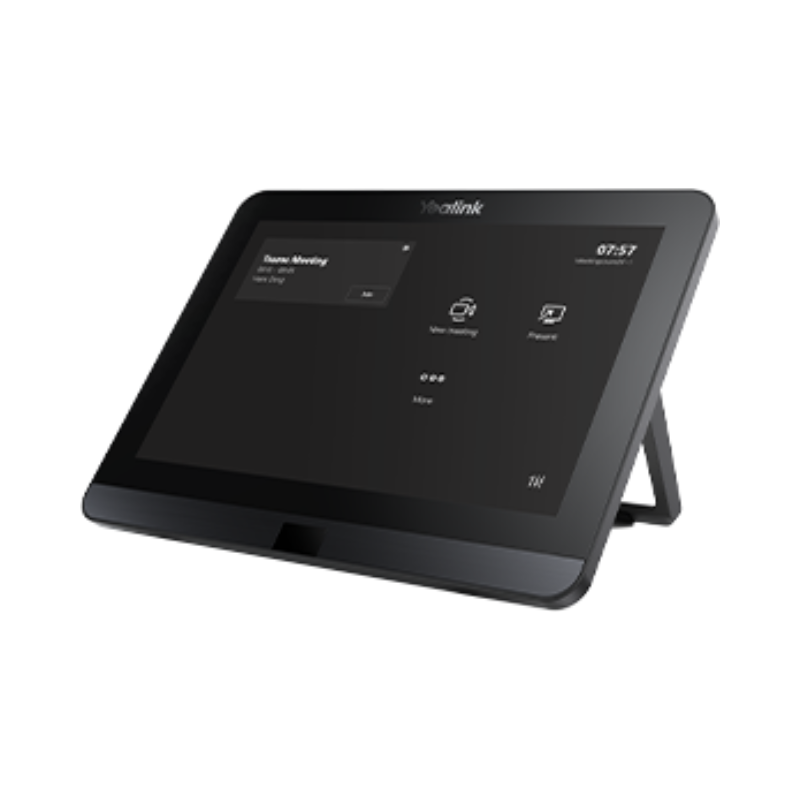

  MTouch E2 Convenience
  MTouch E2 includes a built-in motion sensor for automatic system activation. It offers an intuitive user interface for one-click meeting initiation, call control, camera management, and content sharing.

  Real-Time Content Sharing:
  Easily share content with wireless flexibility using the WPP30, supporting 1080P/30 frames resolution. Wired content sharing via USB-C or HDMI is also an option.

  Compatible accessories:
  WPP30 – Support pairing up to 8,connecting 4 but only using 1 at a time
  VCM34 – Support pairing/using up to 6 at a time
  VCM35 – Support pairing/using up to 8 at a time
  VCM36W – Support pairing/using up to 4 at a time
  VCM38- Support pairing/using up to 8 at a time
  MSpeaker II – Support pairing/using up to 4 at a time

• Features	Specifications
  System Overview
  Ideal For	Medium-Sized Meeting Spaces
  Components	MCore Pro Mini-PC, MTouch E2 Touch Panel, UVC84 4K PTZ Camera, Optional Microphones (CPW65, VCM36-W, etc.)
  UVC84 USB PTZ Camera
  Sensor Resolution	4K
  Optical Zoom	12x
  Field of View (Diagonal)	80°
  Auto Framing	Yes
  Camera Presets	Yes
  Pan Range	200°
  Tilt Range	130°
  Ports and Interfaces	1 x Line-out (3.5mm), 1 x Yealink Microphone port (RJ-45), 1 x USB 2.0 Type-B, 1 x Power port, 1 x Security lock slot, 1 x Reset slot
  MCore Pro Mini-PC
  Processor	11th Gen Intel® Core i5
  Memory	8 GB (2 x 4GB)
  Storage	128 GB SSD
  Video Outputs	3x HDMI with CEC support
  Network	1 x 10/100/1000M Ethernet port
  Wireless Connectivity	Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax, Bluetooth: BT 5.2
  Ports and Interfaces	1 x Yealink MTouch port (RJ45), 4 x USB 3.0 Type-A, 1 x Power port, 1 x Security lock slot, Integrated cable management
  OS Support	Windows 10 IoT Enterprise X64 / Windows 11 IoT Enterprise X64
  MTouch E2 Touch Panel
  Display	8-inch IPS screen
  Resolution	1280 x 800
  Touch Screen	10-point capacitive
  Content Sharing	Wired and Wireless
  Adjustable Stand Angle	28° – 50°
  Ports and Interfaces	3.5 mm headset jack, HDMI/USB-C HD video input
  MSpeaker II Soundbar
  Frequency Response	106Hz-20 KHZ
  Maximum Loud Pressure Level	88±3dB@8W / 1M
  Sensitivity	79±3dB@1W/1M
  Signal-to-Noise Ratio	≥70dB
  Audio Input	3.5mm linear input interface

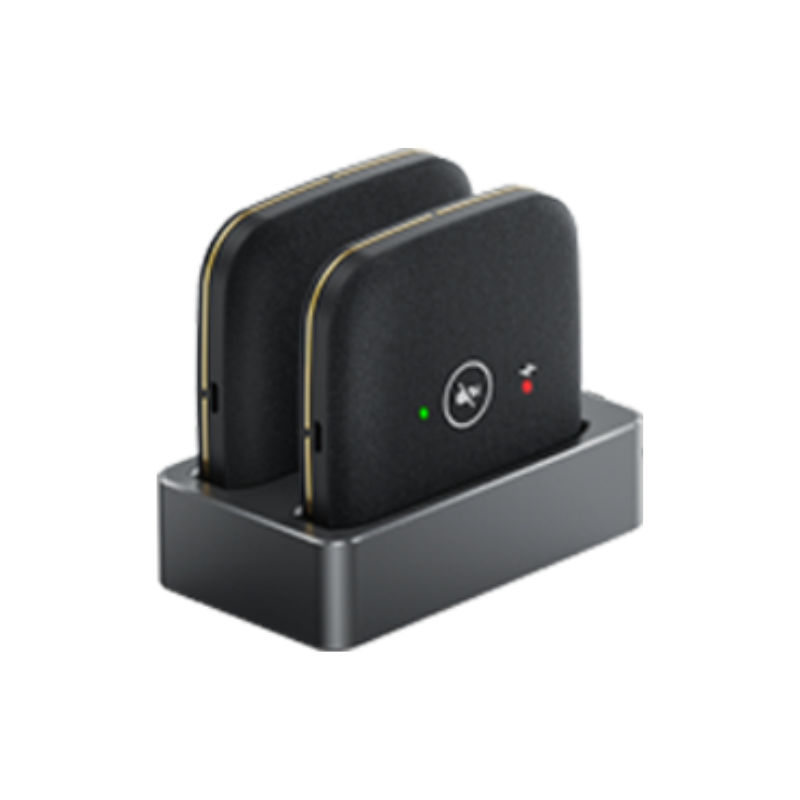

  CPW65 Wireless Microphone
  Pickup Range	360° omnidirectional
  Signal-to-Noise Ratio	65dB SPL@1KHz, A-weighted
  Loudest Pressure Level	110dB@1KHz, THD< 3%
  Frequency Response	100Hz-8KHz
  Wireless Range	2-meter radius full duplex range
  WPP30 Content Sharing
  Wi-Fi Network	Self-built Wi-Fi Network
  Content Sharing Resolution	4K/30fps Full HD
  Wireless Networks	Dual-band 2.4GHz/5GHz
  Ports	Full-featured USB Type-C and USB Type-A Ports
  Encryption	AES & WPA Data Encryption
  Simultaneous Streams	Up to four content streams can be presented simultaneously
  Additional Features	Annotations, whiteboards, reverse control, BYOD support
  Product Specs
  Manufacturer Part #	MVC640-C4-F13
  EAN (Barcode)	6938818316515
  Warranty	2 years
  Room Size	Medium Meeting Room (6-12)
  Connects to	With PC/Laptop
  Compatible With	Teams
  Camera Resolution	4K
  Camera Field of View	80°
  Camera Features	Auto Framing
  Other Features	PC/Mac Compatible

• Description	Downloads
  Yealink MVC640 Gen 3 – Datasheet	Download
