Yealink Cordless IP Multi-Cell DECT Manager | W90DM

• Description
• Specifications

• Yealink Cordless IP Multi-Cell DECT Manager


  Cordless DECT IP Multi-Cell System

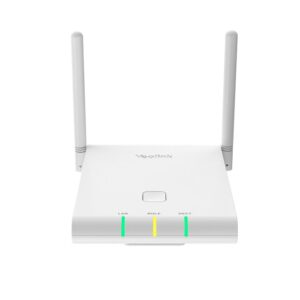

  The Yealink W90 DECT IP Multi-Cell System, consisting of two elements – a base station W90B and a DECT Manager W90DM, is designed to provide the organizations who require wireless coverage with the full ease of deployment. This DECT multi-cell system intends to create an extremely scalable and reliable solution for the organizations of any size and any shape. The system supports up to 250 handsets and 250 simultaneous calls, which ensures one call in each handset, and allows you to get rid of the limited wireless signal coverage of only one base station. Meanwhile, the system can work with Yealink W53H, W56H, W59R, CP930W, and DD Phone with seamless roaming and handover of the calls, making freely mobile communication in and between each zone achievable. Both W90B and W90DM join the modern, compact design with Yealink HD voice quality, which is wrapped with the full-duplex technology Opus, that setting free your ears and giving you an elaborate audio experience.

  Seamless Stability
  The Yealink W90 DECT IP Multi-Cell System brings seamless stability. The rotatable external antennas ensure further signal range, industry-leading coverage, and flexible steering for complex areas, which truly saves amount and cost of bases in deployment with industry-leading coverage. Moreover, the Lan Sync guarantees stable roaming even in poor signal transmission environment or strong signal interference like warehouses with overcrowded cargos or several iron gates.


  Easy Deployment
  The Yealink W90 DECT IP Multi-Cell System provides easier and faster setup for users: the DECT Deployment Toolkit for quick base location, IP discovery tool for quickly getting IP of DM, and auto sync level for self-organizing network without manual operation. Instead of complex steps, it takes less time from deployment to daily management for large system.

  Wide Coverage
  Available for 1DM, 60 bases, 250 handsets and 250 parallel calls, the Yealink W90 DECT IP Multi-Cell System is tailored for large space and multi-locations & bases, delivering unified communicating solution especially for warehouses, hospitals, hotels, supermarkets chains, cruises, authorized car dealerships, offices, retail formats, etc. Virtual machines and more bases will be supported in the future, boarding the coverage once more.

  Full Scenarios
  The Yealink W90 DECT IP Multi-Cell System supports various devices: W53H, W56H, W59R, CP930W, DD Phone, which definitely matches different employee roles and full scenes communicating demand from mobile, desk to conference with flexible scalability.

  Multiple Phone Books
  The Yealink W90 DECT IP Multi-Cell System offers easy access to multiple phone books, including Local Directory, Remote Phonebook, LDAP, and XML Phonebook. Additionally, it is broadly compatible with PBX contacts.

• Category	Specification
  Antenna	Frequency range (EU): 1880 – 1900 MHz, Frequency range (US): 1920 – 1930 MHz
  Maximum indoor range	50 m
  Maximum outdoor range	300 m
  Call management	Anonymous call: Yes, Anonymous call rejection: Yes, Call forwarding: Yes, Call history: Yes, Call hold: Yes, Call transfer: Yes, Call waiting: Yes, Caller ID: Yes, Conference call: Yes, Do not disturb function: Yes, Emergency call: Yes, Integrated voicemail: Yes, Message Waiting Indication (MWI) function: Yes, Mute function: Yes, Number of NB calls per base supported (max): 8, Number of parallel conferences: 3, Number of simultaneous calls (max): 100, Number of simultaneous calls per handset: 2, Number of WB calls per base supported (max): 8, Phonebook capacity (per handset): 100 entries, Phonebook search/import/export function: Yes, Redialing: Yes, Remote phonebook: Yes, Reset function: Yes, Shared Call Appearance (SCA): Yes, Speed dialling: Yes, Switching between calls: Yes, System log export: Yes
  Design	Full duplex: Yes, LED indicators: Yes, Product colour: White, Wall mountable: Yes
  Legal Information	UNSPSC Code: 43191516
  Logistics data	Harmonized System (HS) code: 85177900
  Operational conditions	Operating relative humidity (H-H): 10 – 95 %, Operating temperature (T-T): 0 – 40 °C
  Package dimensions	Depth (package, cm): 20.3 cm, Gross Weight (Package, kg): 3.4 kg, Height (package, cm): 6.3 cm, Width (package, cm): 15.8 cm
  Packaging content	Quick start guide: Yes
  Performance	Auto-provision: Yes, Dual-Tone Multi-Frequency (DTMF): Yes, IPUI registration: Yes, Keypad lock: Yes
  Management protocols	TFTP/FTP/HTTP/HTTPS/RPS
  Number of bases supported	60
  Number of carrier frequencies	2
  Number of handsets supported	250
  Number of VoIP accounts	250
  Over the Air Updates (OTA)	Yes
  Security algorithms	AES/HTTPS/SHA-384/SHA-512/SRTP/TLS
  Supported network protocols	SIP v1 (RFC2543), v2 (RFC3261), SNTP/NTP, VLAN (802.1Q and 802.1P), 802.1x, LLDP, STUN, UDP/TCP/TLS
  User access level	Yes
  Wireless synchronization	Yes
  XML browser	Yes
  Ports & interfaces	Ethernet LAN: Yes, Ethernet LAN (RJ-45) ports: 1, Ethernet LAN data rate supported (max): 100 Mbit/s
  Power	Input voltage: 100 – 240 V, Output current: 1.2 A, Output voltage: 5 V, Power over Ethernet (PoE): Yes
  Product dimensions	Net Weight (Product, kg): 2.8 kg
  Vendor information	Brand Name: Yealink, Warranty: 1 Year(s)
  Weight & dimensions	Dimensions (WxDxH): 134 x 100 x 28 mm
