• WyreStorm NetworkHD™ 4-Input 4K60 Multiview Switcher | NHD-0401-MV

  The NHD-0401-MV is a powerful multiview switcher that can be used as a standalone solution or with a NetworkHD 400 or 500 series system. The switcher comes pre-loaded with six different multiview layouts offering unique viewing experiences. 4K60 HDMI 2.0 inputs allow the switcher to support all the latest 4K HDR content with zero compression. Direct integration with the NHD-CTL-PRO provides a seamless solution for pairing this switcher with NetworkHD encoders & decoders to add multiview capability to an AV over IP project.


  VERSATILE
  Choose to use this switcher as a standalone multiview processor or pair it with a NetworkHD system. For a standalone solution, connect source devices directly to the four HDMI inputs and a display to the HDMI output. Or connect the switcher to a network switch with a NHD-CTL-PRO and link it to NetworkHD 400 or 500 series encoders & decoders.


  READY, SET, GO
  No need to spend time configuring complicated multiview layouts. Six pre-loaded layouts are available that accommodate many different uses. Seamlessly switch between each layout and easily control what source is in each multiview window. You can even discretely choose which audio is playing from the four inputs.


  HDMI 2.0
  Each input supports the latest HDMI 2.0 content, including 4K60 4:4:4 and high dynamic range such as HDR10, HLG and Dolby Vision. A built-in HDMI downscaler will automatically adjust the resolution to match the maximum capability of the connected display.


  RACK MOUNTABLE
  The NHD-0401-MV is specifically designed to fit perfectly inside the NHD-000-RACK4, making it easy to be part of a NetworkHD system. Slot the switcher next other encoders and decoders for a tidy and convenient installation.

  In the Box
  1x NHD-0401-MV Multiview Processor
  1x 12V Power Supply (US/EU/AU/UK)
  1x IR Remote
  1x IR Receiver Cable
  1x 3-pin Terminal Block
  4x Wall Mounting Brackets
  2x Mounting Brackets
  1x QuickStart Guide

• Category	Specification

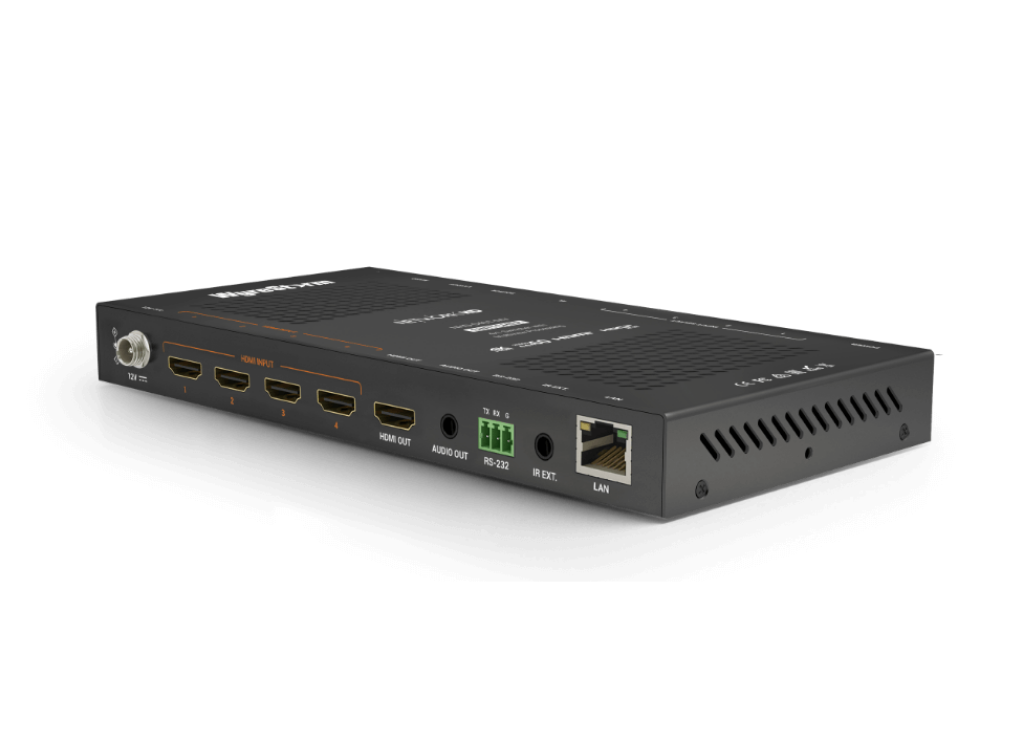

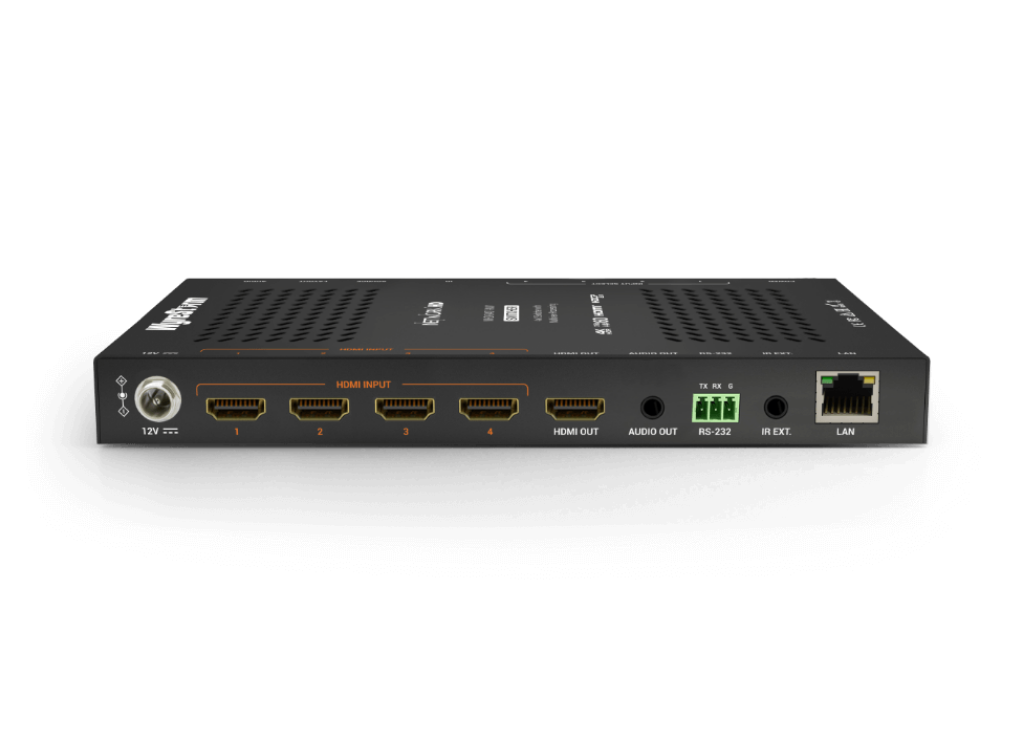

  Audio and Video Inputs/Outputs	4x HDMI In, 1x HDMI Out, 1x 3.5mm TRS Analog Out
  Maximum Pixel Clock	600 MHz
  Max Video Resolutions	4096x2160p @ 60Hz 8bit 4:4:4 or RGB, 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision, 3840x2160p @ 60Hz 10bit 4:2:2 HDR10/HLG, 1920x1080p @ 60Hz 12bit
  Supported Standards	RGB, DCI, BT.2020, Rec.709
  Output Video Encoding	Uncompressed HDMI
  HDMI	HDMI 2.0b, HDCP 2.2, CEC, EDID
  Network	1x 1GbE RJ45
  RS-232	1x 3-Pin Phoenix Connector (API Control)
  IR	1x IR RX 3.5mm TRS Stereo Jack
  Power Supply	12V 2A DC
  Power Consumption	18W

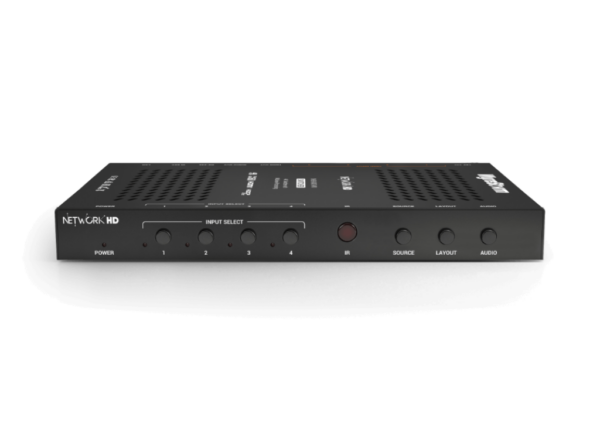

  Additional Features	Built-in web interface, Analog audio de-embed, Front panel control buttons, Compatible with NetworkHD Touch
