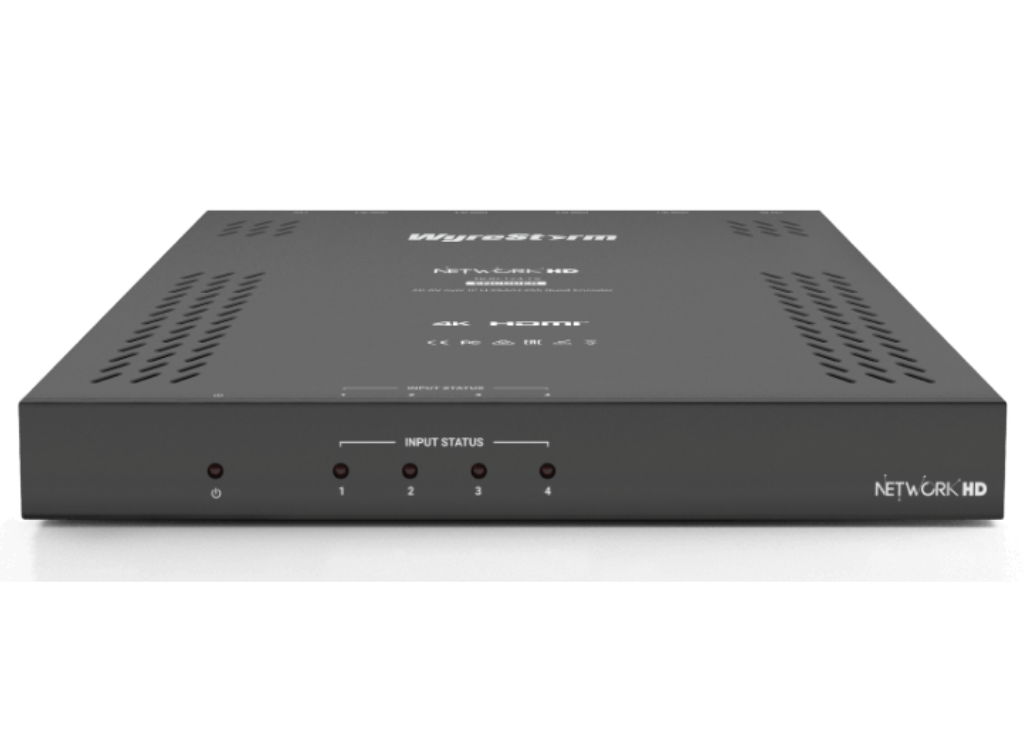

• WyreStorm NetworkHD™ 100 Series 4K AV over IP Quad Encoder | NHD-124-TX

  The NHD-124-TX is a 4 input to 4 network stream device encoder compatible with the NetworkHD 100 an ultra low bandwidth AV over IP solution for distribution of point-to-point, one-to-many and many-to-many over a managed network. With its standards-based approach to video encoding, fast and simple system configuration and robust feature set, it provides the best value in networked video distribution.

  The NHD-124-TX encoder is intended for use with 120 series decoders (sold separately) to provide a complete end-to-end video distribution system. When used in conjunction with the NHD-CTL-PRO system controller complete control integration is simple.

  TAILORED FOR MULTIPLE MARKETS
  The NetworkHD™ 100 Series utilizes low bandwidth, infinitely scalable technology with the addition of powerful video wall support up to 16×16 for the best all-round solution for commercial AV installations. A 100 Series encoder can either be paired with a 100 Series decoder for matrix switching to individual screens or for video wall decoding, with both decoders including HDMI and analog audio breakout outputs, or an NHD-150-RX decoder for multiview monitoring.


  LOW BANDWIDTH ENCODING
  The NHD-124-TX can encode AV signal using low bandwidth compression technology. Using this technology provides incredibly efficient video streams.


  SPACE SAVING DEVICE
  Space is always a factor when building an AV over IP system, and lack of it can cause headaches for any installer. Our NHD-124-TX solves this by combining four transmitters into one solution, allowing you to have the same functionality on a 1U footprint.


  4K RESOLUTION
  The NHD-124-TX is now supporting 4K content that ensures compatibility with the HDMI v1.4 HDCP 2.2 video source.


  AES ENCRYPTION
  Security is key in today’s world. The NHD-124-TX support AES 128-bit AV encryption over the network. Data sent from an NHD-124-TX is encapsulated using advanced methods to ensure that sensitive or private data cannot be accessed by 3rd-parties.


  SECURITY
  Equipped with the latest security protocols including SSH and HTTPS. Data and communications from the 100 series in encrypted end-to-end.


  NHD CONTROL APP COMPATIBLE
  Compatible with the NetworkHD Touch Control app. Control source, matrix and video wall switching with preview streams of each Encoder.

  In the Box
  1x NHD-124-TX Encoder
  4x Wall Brackets
  1x 12V DC Power Supply (EU/US/UK/AU)
  2x Rack Mounting Brackets

• Category	Details
  Audio & Video

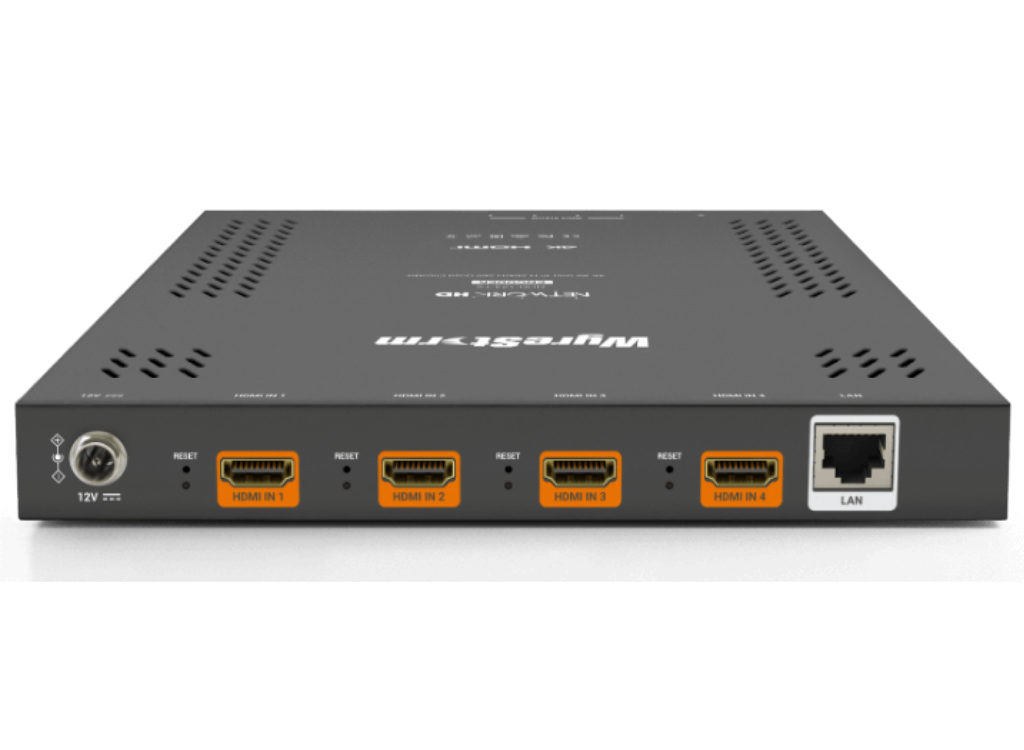

  Inputs	4x HDMI Type A
  Outputs	1x 8-pin RJ-45 female
  End to End Latency	1080p: High Quality Mode: ~250ms, Low Latency Mode: ~80ms
  	4K: High Quality Mode: ~300ms, Low Latency Mode: ~150ms
  Audio Formats	LPCM/MPEG4 AAC stereo, 48KHz
  Video Resolution (Max)	3840x2160p @ 30Hz, 1920x1080p @ 60Hz
  Maximum Pixel Clock	297MHz
  Communication & Control
  HDMI	HDMI 1.4
  LAN	1x 8-pin RJ-45 female
  Security Protocols	AES 128
  Power
  Power Supply	12V DC 3A
  Additional Features
  Video Content	Supports up to 4K @ 30Hz video content
  Flexible Encoding	Encoding configurable between constant bitrate or variable bitrate
  Seamless Switching	Seamless video switching – no black screens or freeze frames
  Format Support	Supports all SD and HD formats, including interlaced content
  Compatibility	Compatible with NHD-150-RX Multiview receiver
  Live Preview	Live video preview streams for use with NetworkHD Touch or custom UI
  IP Address Settings	Flexible IP address settings: AutoIP/Static/DHCP
  Firmware & Settings	Batch firmware update and settings functions for reduced installation time
  EDID Management	Custom EDID management
  HDCP Compliance	HDCP 2.2 compliant
  Decryption Support	Supports AES-128 for audio/video decryption
  Security Features	Supports HTTPS/SSH/802.1X
  PoE Compliance	IEEE 802.3af PoE compliant PD
