WyreStorm EXP-SW-0401-H2 Essentials™ 4K60 4×1 HDMI Switcher

• Description
• Specifications
• Downloads

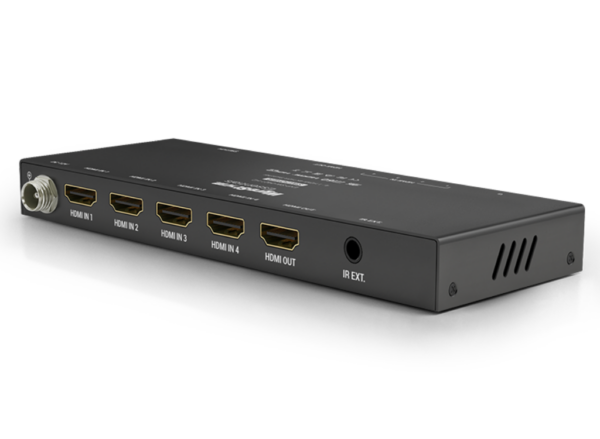

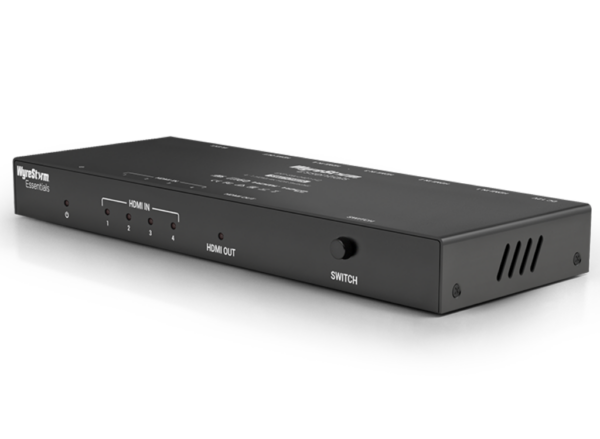

• WyreStorm EXP-SW-0401-H2 Essentials™ 4K60 4×1 HDMI Switcher

  The WyreStorm EXP-SW-0401-H2 is a powerful plug-and-play 4K switcher solution. With up to 18Gbps pure HDMI support, which allows up to four 4K HDR sources to be routed to a single display. The EXP-SW-0401-H2 is capable of auto switching, giving the user the convenience of simply turning on their favorite device without the requiring manual intervention. Furthermore, the EXP-SW-0401-H2 is equipped with signal compensation, allowing an extender or splitter to connect to its output without degrading or delaying the signal.


  AUTO SWITCHING
  WyreStorm’s Essentials line of switchers follows the last in first out rule when it comes to auto-switching, making this a convenient feature when a new source is introduced.


  PLUG AND PLAY
  A trend you may notice is the plug-and-play features WyreStorm’s Essentials product line possesses and it doesn’t stop at our switchers. You can find the same auto EDID and HDCP negotiation found in other Essentials products, but specifically signal regeneration is what makes WyreStorm’s Essentials switchers the king of plug-and-play!


  SIGNAL REGENERATION
  While the EXP-SW-0401-H2 is a stand-alone device, sometimes wiring to the display is too long for a standard HDMI cable, or maybe there are additional displays added. Because of its signal regeneration feature, additional devices can be connected to the output of the switch, like an extender set or splitter, all without signal delay or degradation.


  SLIM BY DESIGN
  Slim design allows discrete placement, but sleek enough to show off in open space.

  In the Box
  1x EXP-SW-0401-H2 Switcher
  1x 12V DC Power Supply (US/UK/EU/AU)
  2x Mounting Brackets
  1x IR Remote Control
  1 x IR Receiver Cable

• Category	Specification
  AUDIO & VIDEO
  Inputs	4x HDMI In: 19-pin type A
  Outputs	1x HDMI Out: 19-pin HDMI type A
  Video Encoding	HDMI
  Video Resolution (Max)	1920x1080p @60Hz 16bit, 3840x2160p @60Hz 8bit 4:2:0, 4096x2160p @60Hz 12bit 4:2:2 Dolby Vision/HDR10
  Supported Standards	DCI
  Maximum Pixel Clock	600MHz
  Color Depth	12bit
  COMMUNICATION & CONTROL
  HDMI	HDCP 2.2
  IR	1x IR Ext. Port
  POWER
  Power Supply	12V DC 1A
  Max Power Consumption	3.2W
  Features	A true plug-and-play HDMI switcher, supporting up to four 4K HDR sources to one screen, Compatible with HDR10, HLG, Dolby Vision, HDCP 2.2 compliant, Automatic input cable equalization, Slim design

• Description	Downloads
  Spec Sheet	Downloads
