WyreStorm EX-70-H2 70m 4K60 HDBaseT Extender
HDMI 2.0 MAXED OUT
Knowing the speed at which technology moves, at WyreStorm we’re always looking ahead. That’s why we’ve implemented our VLC chipset (Visualy Lossless Compression) into this model meaning it’s ready for the next shift in content technology: 4K 60Hz 4:4:4 HDR.
HDCP 2.2 COMPLIANT
The latest 4K UHD content arriving via satellite, cable, disc or stream is all heavily encrypted. Being part of the H2 product family, the EX-70-H2 supports the multi-point distribution of this content over HDBaseT.
SIGNAL RE-CLOCKING
Installers shouldn’t experience problems because of source equipment they have no control over. That’s why all extenders in the WyreStorm H2 family automatically “re-clock” the source signal, overcoming clock-stretching issues found in certain source devices.
FLEXIBLE INSTALLS WITH 2-WAY POH
No 2 installs are the same; that’s why we’ve enabled all of the H2 extender line up to be powered from either the TX or RX, meaning maximum flexibility on-site without hunting for a mains outlet.Additional Features
HDBaseT™ Class B transmission of 4K HDR up to 70m/230ft and 1080p @60Hz 36bit up to
100m/328ftFull UHD 4K transmission supporting HDMI 2.0 video standards
Transmits discreet wide-band bidirectional IR/RS-232 control signals together with HDMI over a single Cat5e/6 cable
Low profile chassis of 15mm for easier, more convenient installations behind screens at display zones
Supports 2ch PCM and 7.1 multichannel audio up to DTS-X and Dolby Atmos
Switchable RS-232 function mode on transmitter and receiver for firmware update
Threaded bushings allow use of both standard and locking DC power plugs

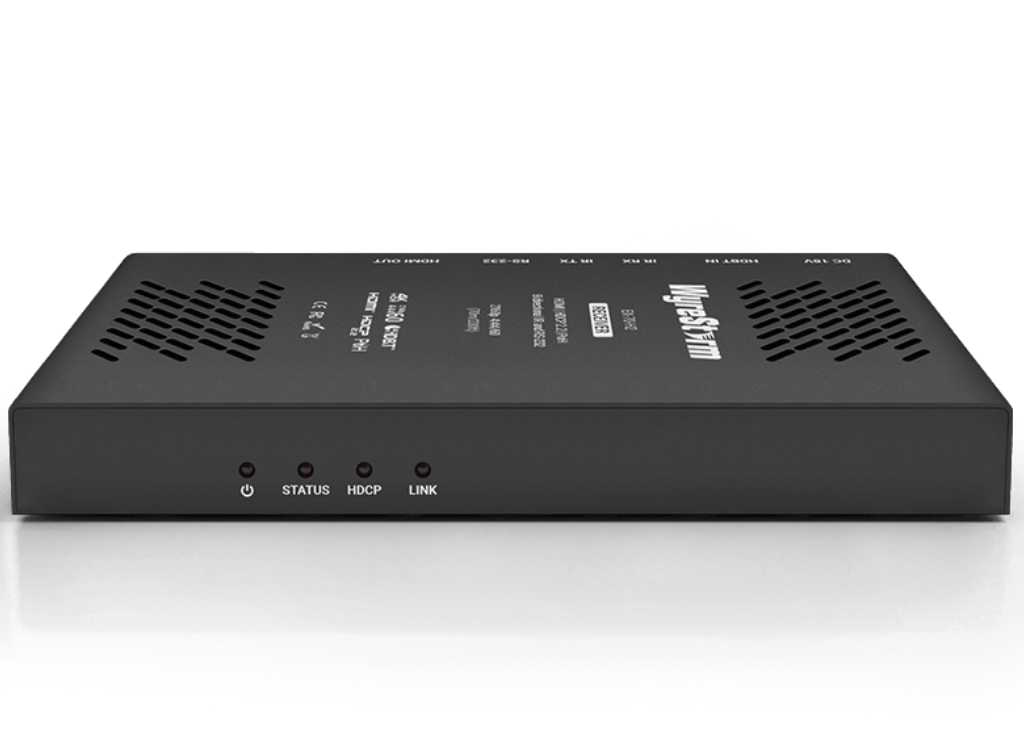

Visual LED indication for power, display connection signal status, HDBaseT™ link, and HDCP presence in signal
Cable termination follows IEEE-568B standards
Automatically adjusts feedback, equalization and amplification of signal for easy installation
Energy efficient universal power supply included
In the Box

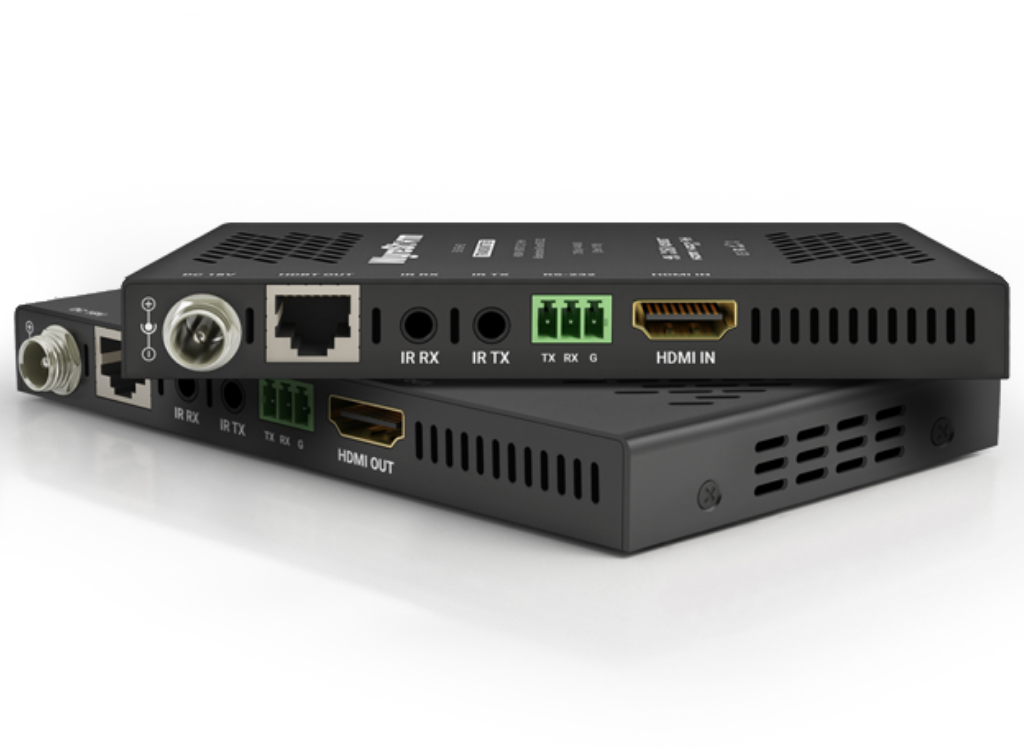

1x EX-70-H2 v2 Transmitter
1x EX-70-H2 v2 Receiver
1x IR Emitter
1x IR Receiver
2x 3-pin Terminal Block
1x 18V DC 1A Power Supply (US/UK/EU)
4x Mounting Brackets (2x for TX | 2x for RX)
1x Quickstart Guide -
Category Specification AUDIO & VIDEO Inputs Transmitter 1x HDMI: 19-pin type A Receiver 1x HDBaseT 8-pin RJ-45 female Outputs Output 1 1x HDBT: 8-pin RJ-45 Female Output 2 1x HDMI: 19-pin type A Output Video Encoding HDBaseT™ Class A Encoding Data Rate 9.2Gbps End to End Latency 10μs (microseconds) Audio Formats 2ch PCM Video Resolutions (max) 1920x1080p @60Hz 16bit, 3840x2160p @60Hz 10bit 4:2:0 HDR, 4096x2160p @60Hz 8bit 4:4:4 Supported Standards DCI Maximum Pixel Clock HDMI: 600MHz COMMUNICATION & CONTROL HDMI HDMI HDBaseT HDMI CEC CEC Pass-through – Requires CEC compatibility between source and display IR 1x IR TX: 3.5mm (1/8in) TS Mono, 1x IR RX: 3.5mm (1/8in) TRS Stereo RS-232 1x RS-232: 3-pin Terminal Block POWER Power Supply 18V DC 1A PoH IEEE 802.3af 48V 15.4W Max Max Power Consumption 4.68W -
