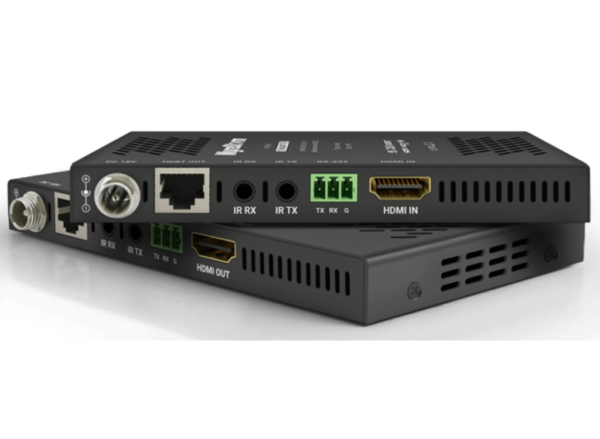

• WyreStorm EX-35-H2 35m 4K60 HDBaseT Extender

  Part of the latest generation of WyreStorm 4K extenders for the latest generation of 4K HDR content, the EX-35-H2 features dynamic compression technology to enable high frame rate HDR-10 and HLG content to be transmitted over standard 10Gbps HDBaseT, both visually losslessly and without latency.


  HDMI 2.0 MAXED-OUT
  Knowing the speed at which technology moves, at WyreStorm we’re always looking ahead. That’s why we’ve implemented our VLC chipset (Visualy Lossless Compression) into this model meaning it’s ready for the next shift in content technology: 60Hz HDR and 4:4:4 60Hz.


  HDCP 2.2 COMPLIANT
  The latest 4K UHD content arriving via satellite, cable, disc or stream is all heavily encrypted. Being part of the H2 product family, the EX-35-H2 supports the multi-point distribution of this content over HDBaseT.


  SIGNAL RE-CLOCKING
  Installers shouldn’t experience problems because of source equipment they have no control over. That’s why all extenders in the WyreStorm H2 family automatically “re-clock” the source signal, overcoming clock-stretching issues found in certain source devices.


  FLEXIBLE INSTALLS WITH 2-WAY POH
  No 2 installs are the same; that’s why we’ve enabled all of the H2 extender line up to be powered from either the TX or RX, meaning maximum flexibility on-site without hunting for a mains outlet.

  In the Box

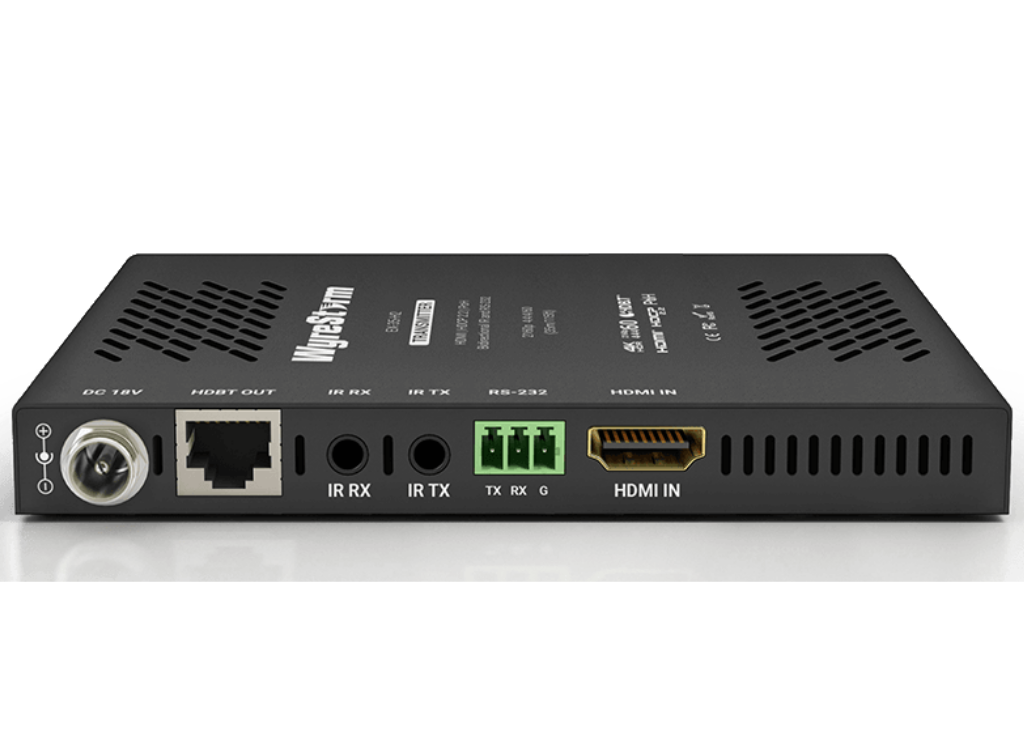

  1x EX-35-H2 Transmitter
  1x EX-35-H2 Receiver
  1x 18V DC 1A Power Supply (US/UK/EU)
  2x 3-pin Screw Down Phoenix Connectors
  1x IR Emitter
  1x IR Receiver
  4x Mounting Brackets (2x for TX | 2x for RX)
  1x Quickstart Guide

• Category	Specification
  AUDIO & VIDEO
  Inputs
  TRANSMITTER	1x HDMI: 19-pin type A
  RECEIVER	1x HDBaseT: 8-pin RJ-45 Female
  Outputs
  TRANSMITTER	1x HDBT: 8-pin RJ-45 Female
  RECEIVER	1x HDMI: 19-pin type A
  Output Video Encoding	HDBaseT™ Class A
  Encoding Data Rate	18Gbps
  End to End Latency	10μs (microseconds)
  Audio Formats	2ch Analog/PCM
  Video Resolutions (max)	1920x1080p @60Hz 16bit 3840x2160p @60Hz 10bit 4:2:0 HDR 4096x2160p @60Hz 8bit 4:4:4
  Supported Standards	DCI
  Maximum Pixel Clock	HDMI: 600MHz
  COMMUNICATION & CONTROL
  HDMI	HDMI 2.0
  HDBaseT	HDMI 2.0
  IR	1x IR TX 3.5mm (1/8in) Mono
  RS-232	1x 3-pin Screw Down Phoenix Connector
  POWER
  Power Supply	18V DC 1A
  PoH	48V 15.4W
  Max Power Consumption	8.88W
  Additional Features
  Extender Capability	4K UltraHD extender set transmitting AV content over Cat6 cable
  Resolution Support	Supports 4K UHD @30Hz 4:4:4 24bit
  Chipset	Revised chipset increases compatibility with new 4K UHD source devices
  Control Signals	Transmits bidirectional IR/RS-232 control signals over a single Cat5e/6 cable
  Chassis Size	Low profile 15mm for easier installation behind screens
  Audio Support	2ch PCM and 7.1 multichannel audio up to DTS-X and Dolby Atmos
  RS-232 Function Mode	Switchable mode for firmware updates
  Power Supply	Threaded bushings for standard and locking DC power plugs

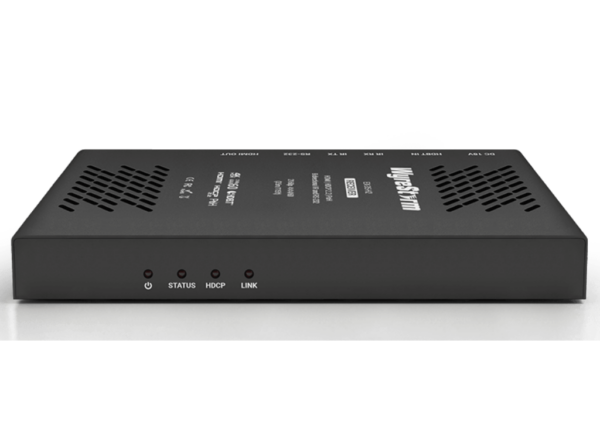

  LED Indication	Visual indication for power, display connection, signal status, HDBaseT™ link, HDCP
  Cable Termination	Follows IEEE-568B standards
  Signal Adjustment	Automatically adjusts feedback, equalization, and amplification for easy installation
  Power Supply	Energy-efficient universal power supply included
