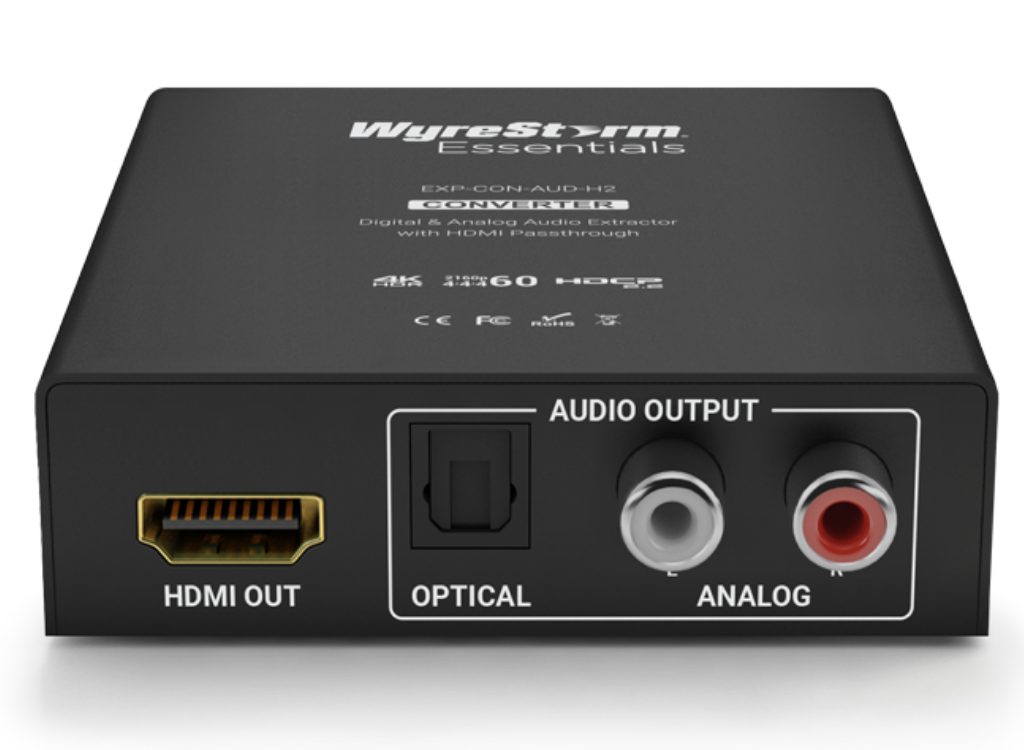

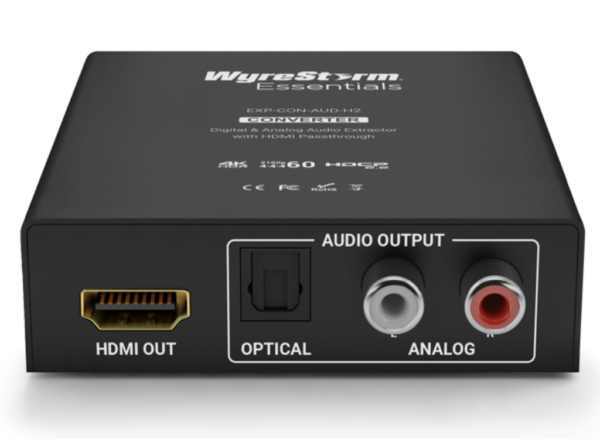

• WyreStorm Essentials™ HDMI Audio Extractor | EXP-CON-AUD-H2

  The WyreStorm EXP-CON-AUD-H2 is a powerful plug and play 4K audio de-embed solution with full 18Gbps HDMI and HDCP 2.2 support. The EXP-CON-AUD-H2 allows digital or analog audio to be de-embedded from the source to be sent to an audio distribution system, such as an AVR or amplifier. Perfect for when the source de-embed isn’t available, all while passing video up to 4k@60Hz 4:4:4 to a display projection screens or video matrix.

  Additionally, the EXP-CON-AUD-H2 has a 3 audio EDID settings, which aids in video distribution, bypassing the need for the source to be connected directly to the AVR/AMP over HDMI.


  AUDIO DE-EMBED
  This is the bread and butter feature of the EXP-CON-AUD-H2. Perfect for de-embedding digital 5.1 surround or 2 channel analog from anywhere inline or from sources that aren’t equipped with a native audio breakout, such as Apple TV 4K, all-while passing video content to a matrix switch or display.

  AUDIO EDID SELECTION
  When multiple audio formats are needed in a system, the EXP-CON-AUD-H2 gives the user 3 audio EDID options to choose from; 5.1 surround, 2 channel analog or passthrough. This is perfect if multiple audio amplifiers or AVRs are in the system, allowing each audio system to receive a discrete EDID without affecting the source.

  Wyrestorm Converter & Adapter EXP-CON-AUD-H2 (8)
  HDMI 2.0 MAXED OUT
  Sporting an 18Gbps HDMI input, the EXP-CON-AUD-H2 can support all UHD video signals up to and including 2160p 4:4:4/60, and high frame-rate HDR 12bit 4:2:2 up to 60Hz.

  COMPLIANT WITH HDCP 2.2
  All of our 4K UHD extenders are compliant with the strict anti-piracy algorithms that prevent the unauthorized distribution of content, meaning a trouble-free installation.

  Product Features
  Supports resolutions of up to 2160p 4:4:4/60
  Fully HDCP 2.2 compliant pass-through
  HDMI audio de-embed featuring digital S/PDIF and left/right analog audio
  Compact, low profile design; easy to install
  Integrate multiple to create custom audio ecosystem

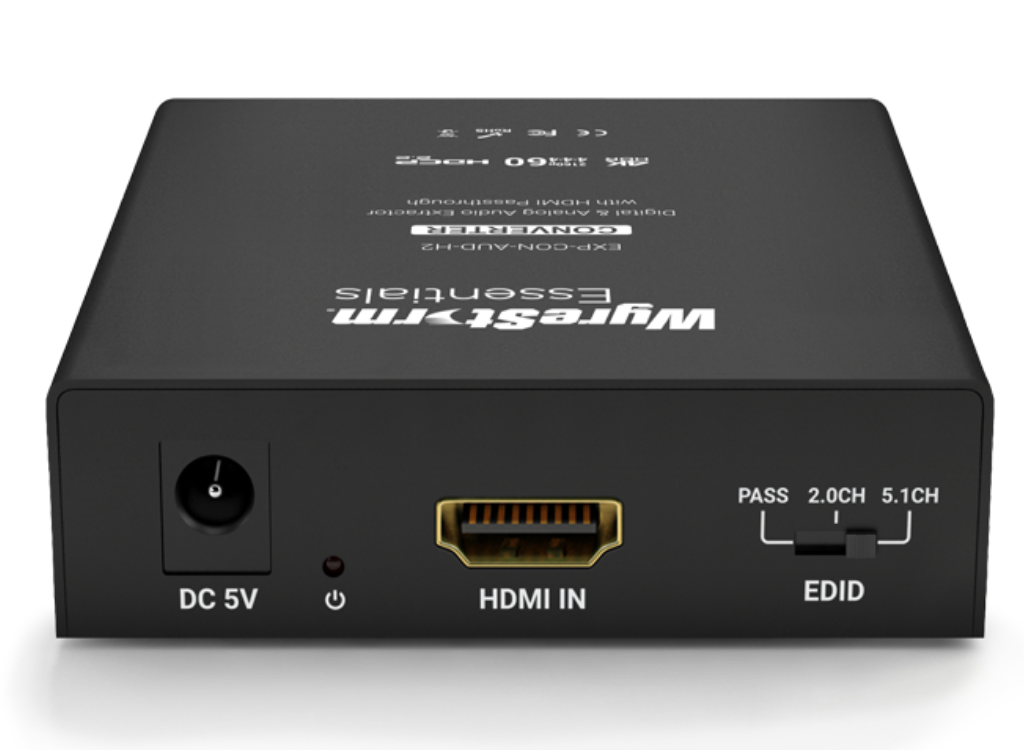

  3 gear sliding switch for easy audio EDID setting; Pass-through, 2ch and 5.1
  Automatic cable equalization and signal regeneration/compensation for optimal audio/video compatibility
  *This product does not downmix Dolby or DTS audio formats.

  In The Box
  1x EXP-CON-AUD-H2 Audio Converter
  1x 5V DC 1A Power Supply with Wall Adapters
  2x Mounting Brackets

• Category	Specification
  Audio and Video
  Inputs	1x HDMI in: 19-pin type A
  Outputs	1x HDMI Out: 19-pin type A, 1x RCA Female Stereo (L/R), 1x S/PDIF TOSLINK
  Audio Formats	HDMI: 2ch PCM, Multichannel: LPCM, DTS-X, Dolby Atmos, Analog: 2ch LPCM, Toslink: 5.1ch Surround Sound
  Video Resolutions (Max)	1920x1080p @60Hz 12bit, 1920x1080p @60Hz 16bit, 3840x2160p @24Hz 10bit 4:2:0 HDR, 3840x2160p @30Hz 8bit 4:4:4, 3840x2160p @60Hz 10bit 4:2:0 HDR, 4096x2160p @60Hz 8bit 4:2:0, 4096x2160p @60Hz 8bit 4:4:4
  HDMI Cable Length	15m/49ft, 7m/23ft, 7m/23ft, 5m/16ft, 5m/16ft, 5m/16ft, 3m/10ft
  Supported Standards	DCI, RGB, HDR, HDR10, Dolby Vision (Pass-Through EDID only), HLG, BT.2020, BT.2100
  Maximum Pixel Clock	600MHz
  Communication and Control
  HDMI	HDCP 2.2, DVI-D supported with adaptor (not included)
  Power
  Power Supply	5V DC 1A
  Max Power Consumption	2.88W
  Environmental
  Operating Temperature	32°F ~ 113°F (0°C ~ 45°C), 10% ~ 90%, non-condensing
  Storage Temperature	-4°F to ~ 158°F (-20°C ~ +70°C), 10% ~ 90%, non-condensing
  Maximum BTU	9.83 BTU/hr
  Dimensions & Weight
  Rack Units/Wall Box	<1U
  Height	22mm/0.87in
  Width	80mm/3.15in
  Depth	90mm/3.54in
  Weight	0.23kg/0.51lbs
  Regulatory
  Safety and Emission	CE, FCC, RoHS

• Description	Downloads
  Spec Sheet	Downloads
