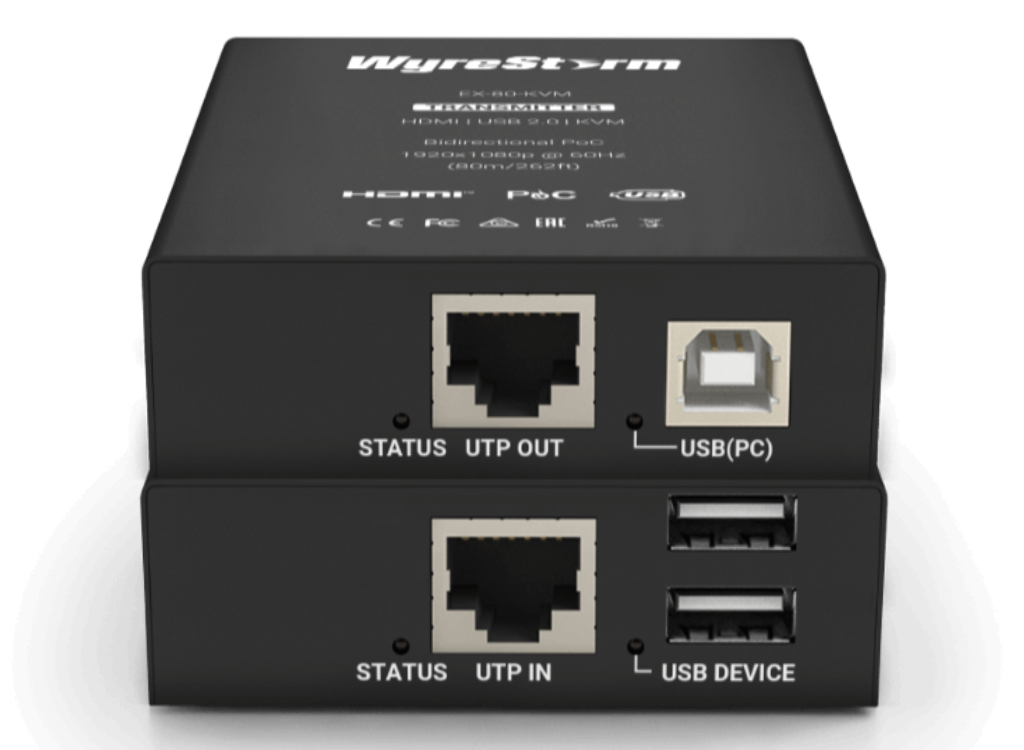

WyreStorm 80m KVM UTP Extender | EX-80-KVM

  • Description
  • Specifications
  • Downloads

  • WyreStorm 80m KVM UTP Extender | EX-80-KVM

    The WyreStorm EX-80-KVM is a plug and play HDMI and KVM extender, capable of sending up to resolutions of 1080p@60Hz and HID (Human Interface Device) up to 80m (262ft) over a single CAT5e/6 cable. Additionally, it supports bidirectional POC (Power Over Cable) for powering at either the transmitter or the receiver with only one power adapter, making installations quick and effortless. Perfect use in office, home and presentation settings to extend HD video and USB keyboard and mouse from a local zone to a remote PC or laptop


    USB 2.0 PASSTHROUGH
    The EX-80-KVM offers highspeed USB 2.0 pass-through, capable of not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities of 480Mbps for webcams or USB peripherals..


    BIDIRECTIONAL POC
    With it’s KVM extension, the EX-KVM-80 includes bidirectional Power Over Cable abilities, saving the installer time and headache from having to supply local power discreetly to both ends.


    HDCP COMPLIANT
    WyreStorm extender solutions play nice with the equipment they’re connected to, ensuring that the HDCP encryption is maintained throughout the process


    DISCREET, SMALLER FOOTPRINT
    As with all of WyreStorm’s line of extenders, we strive to give you the most functionality, while keeping the chassis size as minimal as possible, making it easier to keep discreet.

  • Category Specification
    AUDIO & VIDEO

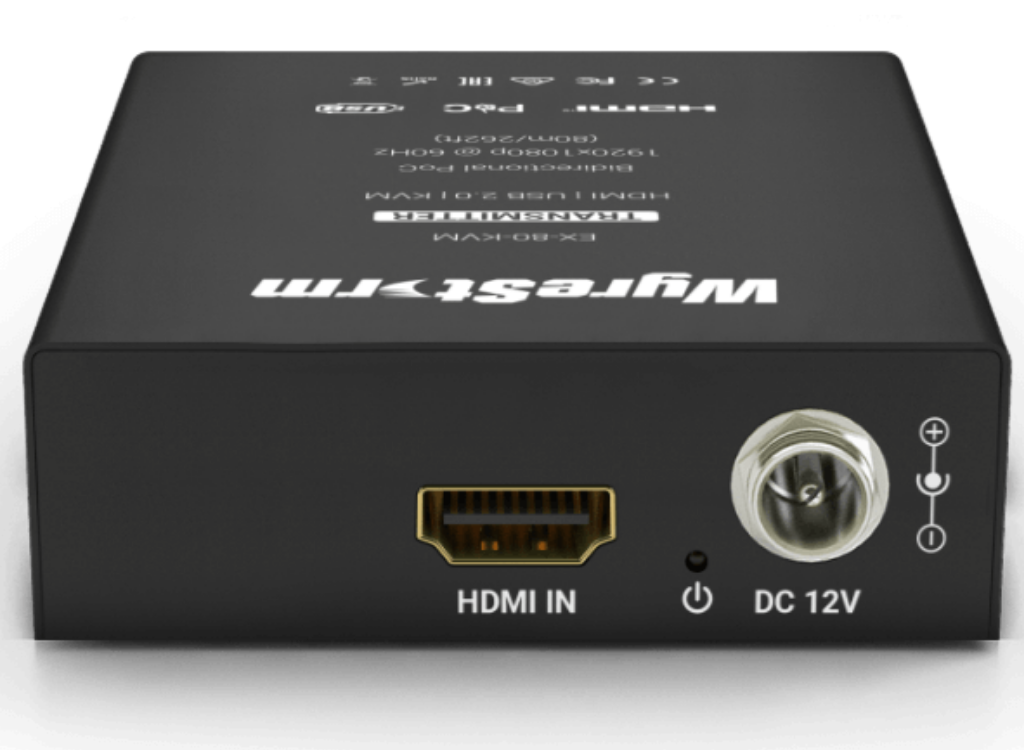

    Inputs (TX) 1x HDMI In: 19-pin type A, 1x USB Type B
    Inputs (RX) 1x UTP In: 8-pin RJ-45 Female, 2x USB Type A

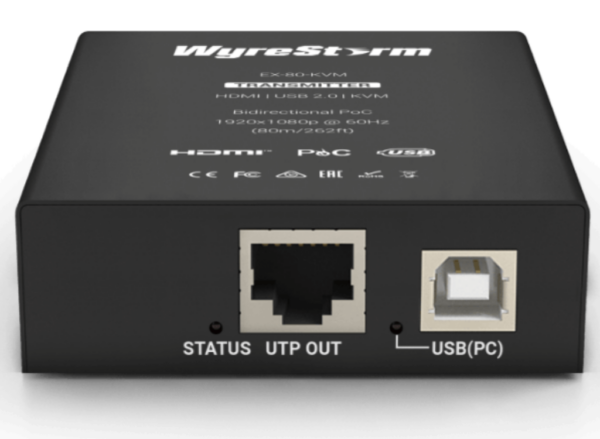

    Outputs (TX) 1x UTP Out: 8-pin RJ-45 Female
    Outputs (RX) 1x HDMI Out: 19-pin type A
    Video Encoding UTP
    Encoding Data Rate 6.75Gbps
    End to End Latency 10μs (microseconds)
    Audio Formats 2ch PCM, Multichannel up to DTS-X and Dolby Atmos
    Video Resolution (Max) 1920x1080p @60Hz 12bit
    Supported Standards DCI, RGB
    Maximum Pixel Clock 225MHz
    COMMUNICATION & CONTROL
    HDMI HDMI 1.3b, HDCP 1.4, EDID, DVI/D supported with adapter (not included)
    UTP HDMI 1.3b, HDCP 1.4, EDID, 2-way PoC
    USB 1x Type B (host), 2x Type A (device) (Transmitter and Receiver), Maximum uplink speed: 480Mbps
    USB Distance 60m/197ft Cat6,6a,7
    POWER
    Power Supply 12V 2A
    PoC IEEE 802.3af 48V 15.4W Max, 2-way
    Max Power Consumption 3.6W (per unit)
    Additional Features Full HD video resolution up to 1080P@60Hz at up to 80m (262ft), Supports USB 2.0 data transfers
    Bidirectionally up to 60m (197ft) and HID up to 80m (263ft), HDMI 1.3 and HDCP 1.4 Compliant
    Bidirectional PoC – Powered at either the transmitter or receiver with only one power adapter.
