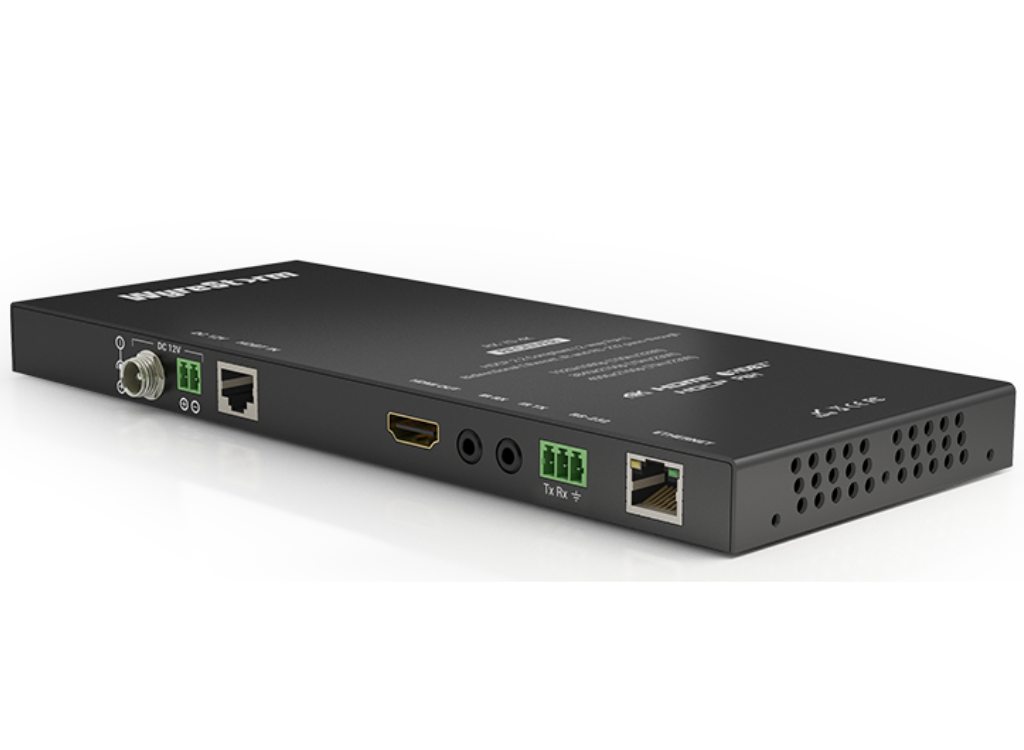

• WyreStorm 70m 4K HDBaseT™ Receiver | RX-70-4K

  The perfect complement to a WyreStorm HDBaseT™ matrix system, presentation switch or in-wall transmitter solution, the RX-70-4K ultra slim display receiver supports 4K UHD video with HDR up to 70m/230ft and 1080p to 100m/328ft.


  CLASS A HDBASET™
  Receives HDMI transmissions of 4K up to 70m/230ft and 1080p up to 100m/328ft with multi-channel audio, control, ethernet and PoH.


  CONTROL OPTIONS
  Supports 3 methods of control pass-through. Being a pure-HDBaseT™ device, the RX-70-4K can handle bi-directional IR, RS-232 and even CEC routing when used as part of a compatible WyreStorm matrix or extender system.


  DISCREET INSTALLATION
  Low Profile chassis height of just 18mm / 0.7” for greater installation convenience behind the even slimmest wall mounts.


  2-WAY POH
  The RX-70-4K can either be powered by a PoH-compatible matrix or presentation switcher or it can itself deliver power to a transmission device such as the WyreStorm In-wall HDBaseT™ Transmitters.

  In the Box
  1x RX-70-4K Receiver
  1x Wide-band IR Emitter
  1x Wide-band IR Receiver (30-50KHz)
  2x Mounting Brackets
  1x 3-pin Phoenix Connector
  1x 2-pin Phoenix Connector
  1x Quickstart Guide

• Category	Specification

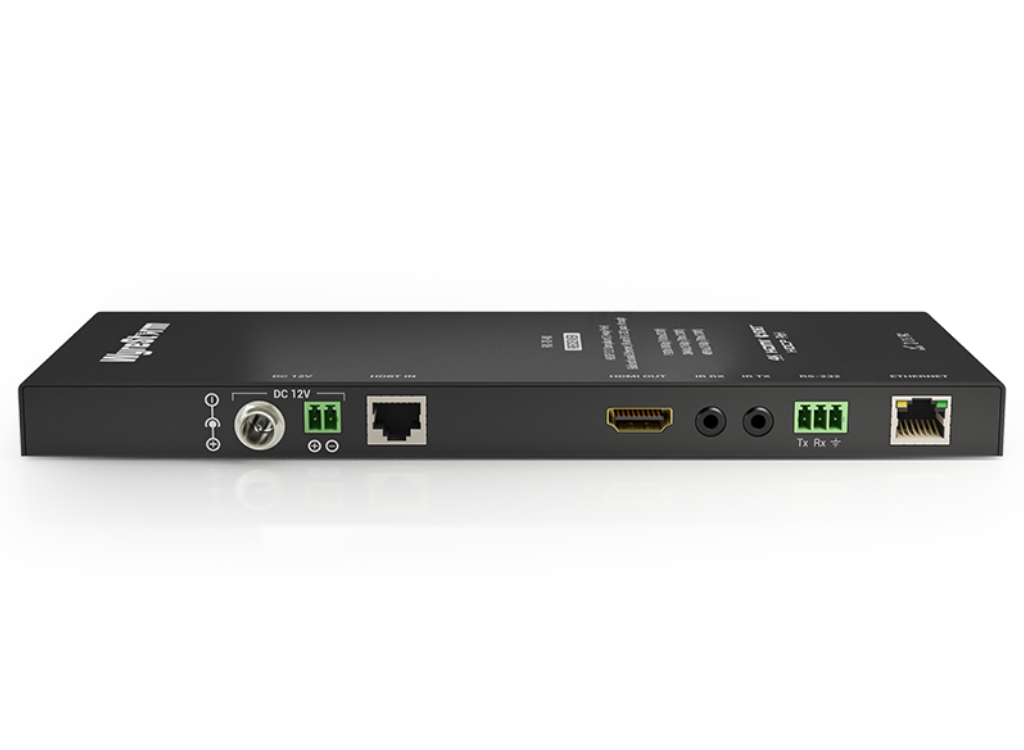

  Inputs	1x HDBaseT 8-pin RJ-45 female
  Outputs	1x HDMI 19-pin type A female
  Audio Formats	2ch PCM, Up to DTS-X, Dolby Atmos
  End to End Latency	1920x1080p @60Hz 48bit, 3840x2160p @30Hz 4:4:4 24bit, 3840x2160p @24Hz HDR 10bit
  Color Depth	1080p: 48bit, 4K UHD: 24bit, HDR @24p: 10bit per channel BT.2020
  Maximum Pixel Clock	297MHz
  HDMI	HDCP 2.2, EDID, DVI/D supported with adapter (not included)
  HDBaseT	HDCP 2.2, EDID, 2-way PoH, Bidirectional IR, RS-232, Ethernet
  Ethernet	1x 8-pin RJ-45 female, 10/100 Mbps auto-negotiating, Bidirectional over HDBaseT
  IR	1x IR TX 3.5mm (1/8in) TS Mono, 1x IR RX 3.5mm (1/8in) TRS Stereo (Bidirectional)
  RS-232	1x 3-pin Phoenix Connector (Bidirectional over HDBaseT)
  Power Supply	12V DC 2A
  Max Power Consumption	7.2W
  PoH	48V 15.4W
  Additional Features	– Transmits video, audio, IR, RS-232, Ethernet over Cat5e/6
  	– Supports 7.1 DTS Master HD and Dolby True HD audio
  	– Switchable RS-232 for firmware update
  	– Power options include additional phoenix port and locking DC plugs

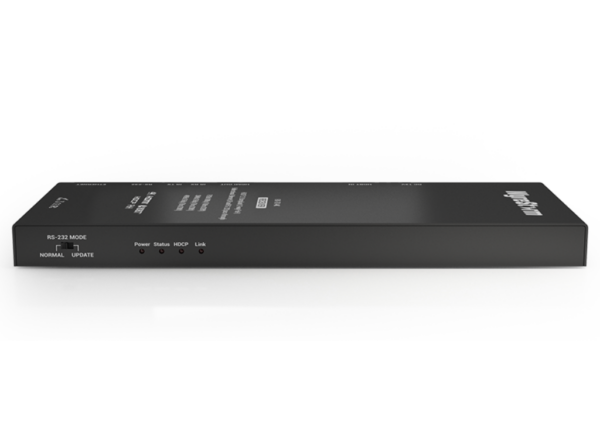

  	– Visual LED indication for power, signal status, HDCP, and link
  	– Energy-efficient universal power supplies included
  	– Mounting brackets and IR connections included
