WyreStorm 6U/12 Slot Rack Mount for NetworkHD™ 100/250/400/500/600 Series | NHD-000-RACK4

• Description
• Specifications
• Downloads

• WyreStorm 6U/12 Slot Rack Mount for NetworkHD™ 100/250/400/500/600 Series | NHD-000-RACK4

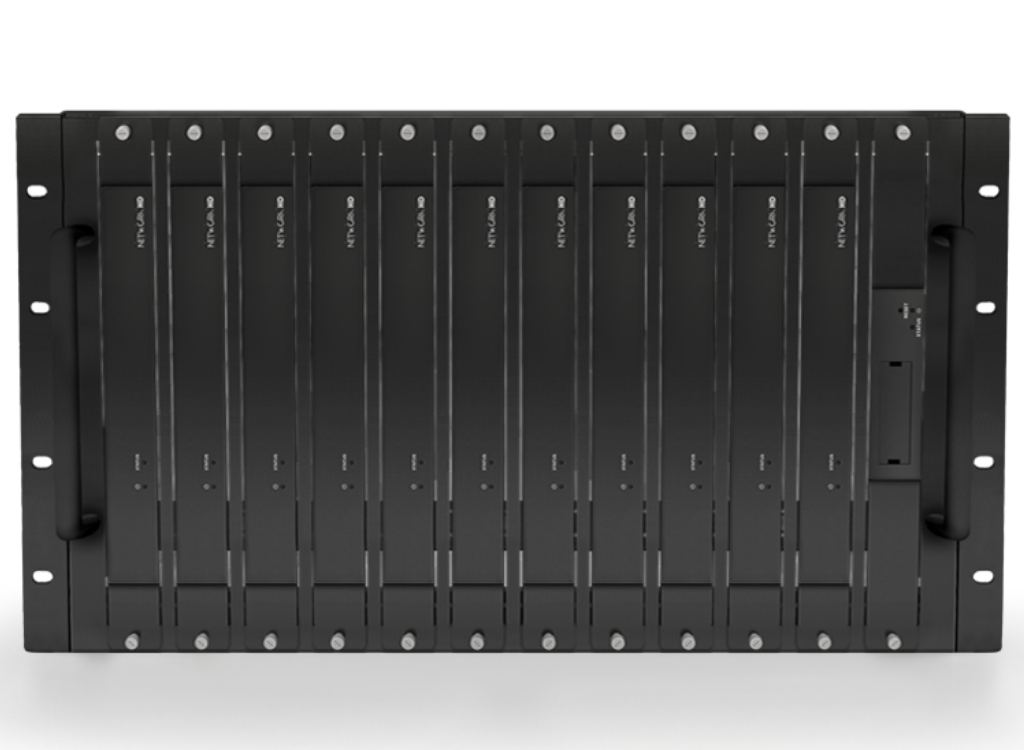

  The NHD-000-RACK4 is a 6U rack mount that provides a clean installation for up to 12 NetworkHD 100, 400, 500 and 600 Series encoders or decoders. The NHD-000-CTL NetworkHD controller is also compatible allowing for all required devices to be installed in a single location.

  The slimline and thermally optimized design helps keep your centralized NetworkHD solution perfectly organized.


  IDEAL HEAT DISSIPATION
  Vertical slot installation supports any combination of up to 12 NetworkHD Series components or NHD-CTL-PRO’s providing ideal component heat dissipation and airflow – a key factor in increasing reliability and product lifespan.


  WE SHIP COMPLETE
  All mounting hardware provided: rack, brackets, blanking plates, rails, lacing bar, handles and screws.


  ALL STEEL DESIGN
  Strong, steel enclosure construction keeps hardware secure and protected with units secured via brackets, rails and front panel screws.


  STREAMLINE YOUR INSTALL
  Specifically designed for organizing NetworkHD components within the main rack location, the NHD-000-RACK4 de-clutters the rack, improving cable management, port identification and unit access.

  In the Box
  1x NHD-000-RACK4 Chassis
  2x 19” Rack Mounting Brackets
  7x Blank Plates
  1x Assembly Screws Pack

• Feature	Specification
  Rack Units	6U
  Height (With Feet)	265.9mm / 10.47in
  Height (Without Feet)	265.9mm / 10.47in
  Width (With Brackets)	483mm / 19.02in
  Width (Without Brackets)	440mm / 17.33in
  Depth (With Handles)	188.3mm / 7.42in
  Depth (Without Handles)	150mm / 5.91in
  Weight (Chassis without Plates)	2.3kg / 5.06lbs
  Device Mounting Brackets	Not included (required separately)
  Blanking Plates	7 included (extra available separately)
  Slot Capacity	12 slots for 100, 400, 500, 600 Series & NetworkHD Controller devices
  Mounting Options	Front or rear-facing connections
  Cable Management	Removable rear cable management bar
  Thermal Efficiency	Supports passive/active cooling systems
  Convenience Features	Removable front-facing handles
  Design	All-steel, sturdy and solid structure
  Pre-built Systems	Systems can be pre-built before arrival

• Description	Downloads
  SpecSheet	Downloads
