WyreStorm 4K/60 In-line HDMI Scaler with DSP-Controlled Audio Breakout, Dolby TrueHD™ & DTS-HD™ Downmixing and eARC Output | CON-H2-DD-EARC

• Description
• Specifications

• WyreStorm 4K/60 In-line HDMI Scaler with DSP-Controlled Audio Breakout, Dolby TrueHD™ & DTS-HD™ Downmixing and eARC Output | CON-H2-DD-EARC

  Bringing the latest technology currently only seen on the latest HDMI 2.1 devices the CON-H2-DD-EARC tackles the demands of today’s technology head-on and provides a multi-pronged approach to the challenges of the modern residential AV system. It combines a powerful set of features that can both down-mix Dolby TrueHD or DTS-HD audio to stereo and scale incoming 4K UHD content to 1080p. The DSP-controlled stereo audio output allows adjustment of both volume and EQ via a control system and the unit can be customized further by manually controlling the down-mixing to the S/PDIF and HDMI outputs. ARC/eARC breakout of audio from a connected smart TV completes the formidable line-up of this trail-blazing device.


  4K HDR & DOLBY VISION
  With an 18Gbps HDMI input the CON-H2-DD-EARC supports video content up to 4K/60 4:4:4. Compatibility with the latest 4K specifications such as HDR10 and Dolby Vision ensures maximum video fidelity no matter the source you connect.

  DOWNMIXING & DSP
  Powerful audio capabilities allow up to 7.1 Dolby True HD and DTS-HD signals to be downmixed to stereo RCA for multi-zone amplifiers. A built-in DSP allows for the audio level and EQ to be adjusted for the stereo RCA output.

  ARC & EARC
  Easily send audio from apps on your Smart TV with support for Audio Return Channel. Take it a step further with eARC. With support for Enhanced Audio Return Channel, you can now send 7.1 audio directly from your TV and downmix or de-embed into an external audio system.

  VIDEO SCALING
  With maximizing compatibility in mind, the CON-H2-DD-EARC’s HDMI output features a powerful scaler. Seamlessly connect a 4K HDR source and scale to 1080p if connecting to an older display.

  5 YEAR WARRANTY
  This WyreStorm Pro AV product comes with a 5 Year Warranty

  Product Features
  Downmixes up to Dolby True HD and DTS-HD 7.1 signals to 2 channel analog
  Supports audio sampling rates up to 192 KHz
  Simultaneous downmixing and audio de-embedding via digital audio outs and stereo RCA
  18Gbps HDMI passthrough for maximum video compatibility with latest 4K HDR and Dolby Vision sources
  HDMI Output 1 supports 4K to 2K video scaling with HDR conversion
  Dedicated second audio-only HDMI output for connecting a multi-channel AVR
  Support for ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel) through HDMI to de-embed or downmix audio from smart displays
  Manual EDID dipswitches for easy manipulation of audio and video settings
  RS-232 control port for integration with 3rd-party control systems
  Supports rack mounting with the NHD-000-RACK4 or NHD-140-RACK-1U.

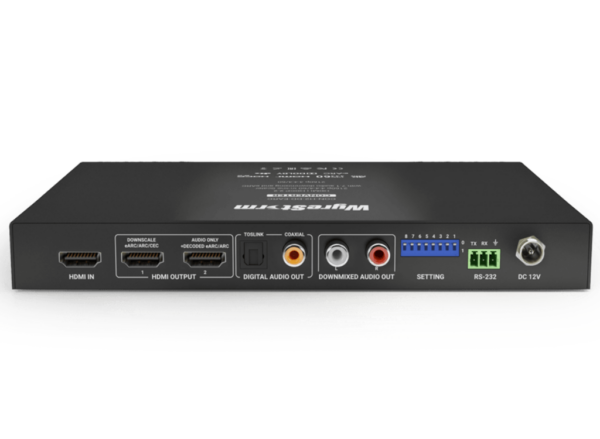

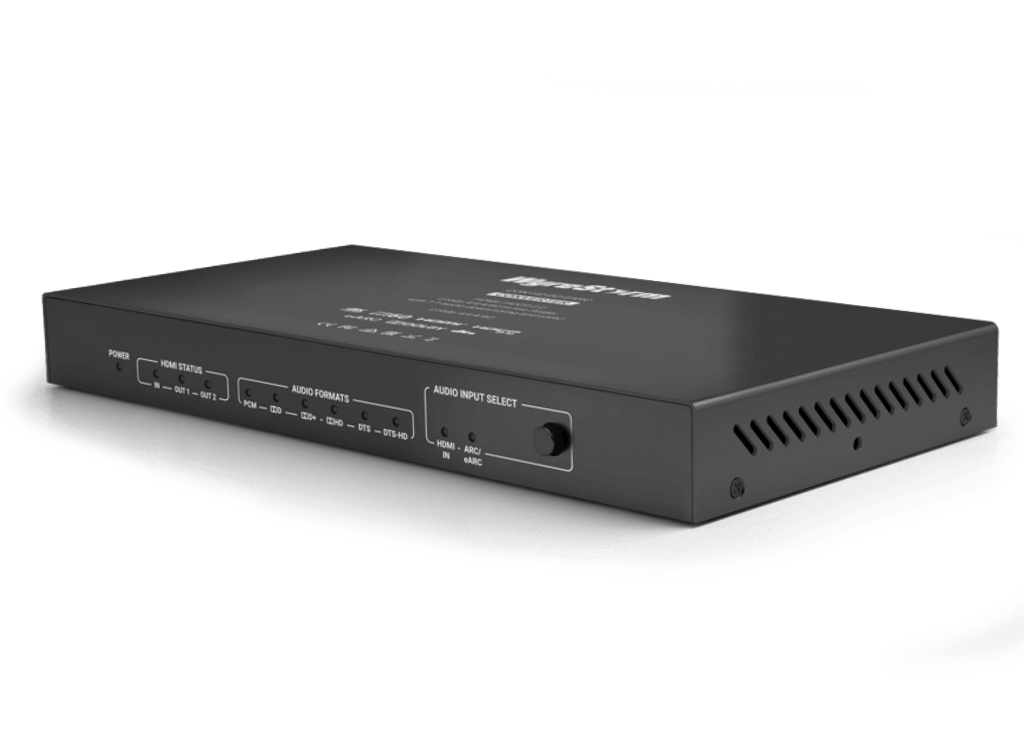

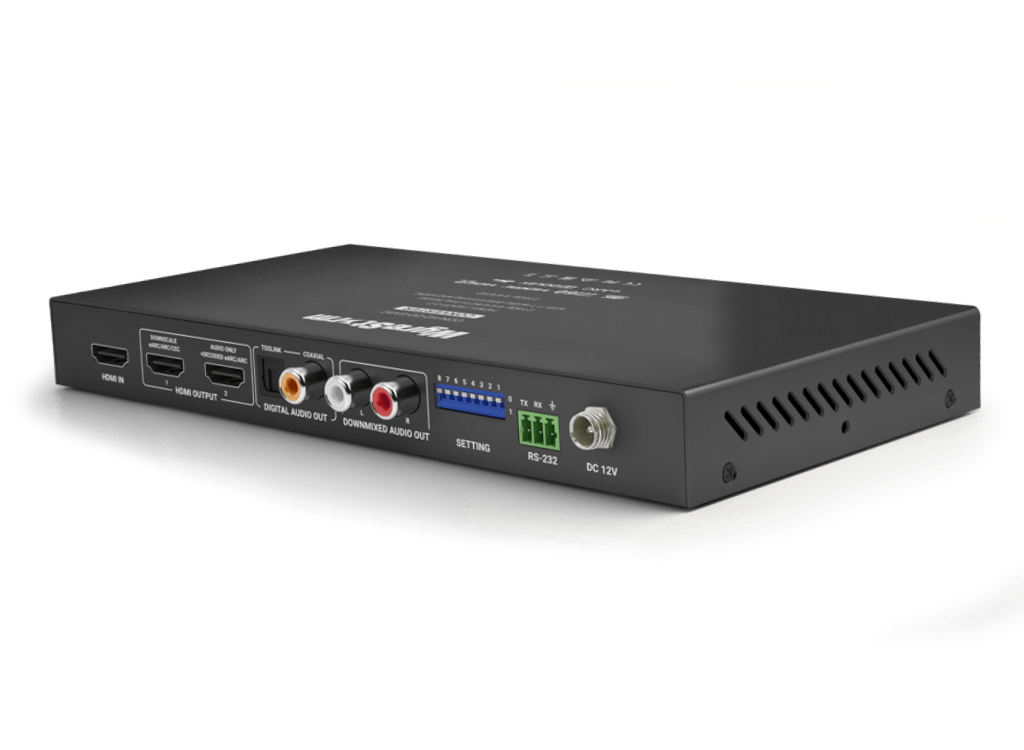

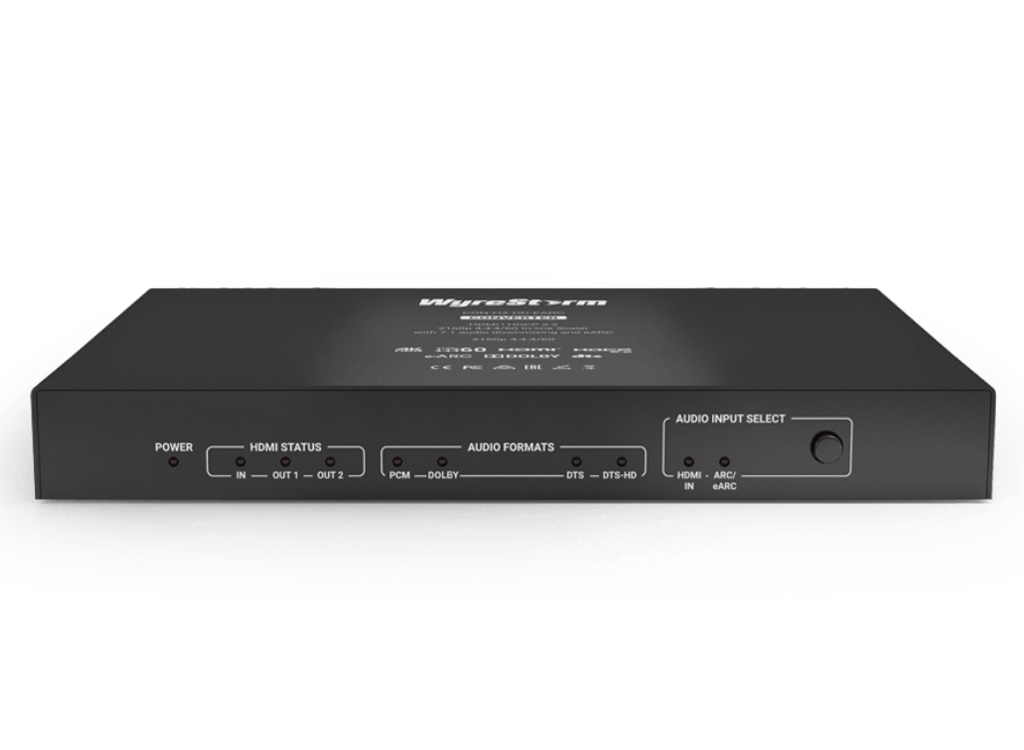

  Front panel audio decoding LEDs for easy signal identification
  Manufactured under license from Dolby Laboratories

  In The Box
  1x CON-H2-DD-EARC Downmixer/scaler
  1x 3-pin Phoenix connector
  2x Rack mounting brackets (for NHD-000-RACK4)
  1x 12V DC 1A Power Supply with wall adaptors (US/UK/EU/AU)
  1x Quickstart guide

• Category	Specification
  Connectivity
  Inputs	1x HDMI In: 19-pin HDMI Type A Receptacle, 1x Audio In: 3.5mm TRS Stereo Jack Socket, 1x IR RX: 3.5mm TRS Jack Socket
  Outputs	1x LAN (PoE): 8P8C “RJ45” Socket ANSI/TIA-568, 1x Audio Out: 3.5mm TRS Stereo Jack Socket, 1x USB Host: USB 2.0 Type B Receptacle, 1x RS-232: 3-pin Phoenix, 1x IR TX: 3.5mm TS Jack Socket
  Transmission
  Transmission Encoding	Proprietary stream encoding, Video compression based on JPEG 2000, Dante / AES67 compliant audio stream encoding
  End to End Latency	1 video frame (Passthrough mode), 2 video frames (scaling/video wall) e.g., 16ms @ 60Hz
  Max Transmission Bit Rate	850Mb/s
  Video
  HDMI	300MHz Max. TMDS Clock
  Maximum Data Rate	8.91Gb/s HDMI
  Video Resolutions (Max)	1280x720p @60Hz 12bit 4:4:4/RGB, 1920x1080i @30Hz 12bit 4:4:4/RGB, 1920x1080p @60Hz 12bit 4:4:4/RGB, 3840x2160p @30Hz 10/12bit 4:2:2/4:2:0 HDR10 HLG, 3840x2160p @30Hz 8bit 4:4:4/RGB, 3840x2160p @60Hz 8bit 4:2:0, 720x480p @60Hz 12bit 4:4:4/RGB, 720x576p @50Hz 12bit 4:4:4/RGB, 60fps Progressive 4:4:4/RGB: 640×480, 800×600, 1024×768, 1280×800, 1280×960, 1280×1024, 1360×768, 1366×768, 1400×1050, 1440×900, 1600×1200, 1680×1050, 1920×1200
  Passthrough mode	Output at RX matches input at TX except for YUV 4:2:0 converted to 8bit RGB and resolutions above 1920×1200 at 50/60Hz (framerate halved)
  Scaler mode	User-selectable scaled output, All formats converted to 8bit RGB, Up to 3840x2160p @30Hz
  Supported Standards	HDR10, HLG, BT.2020, BT.709, 3D Video
  Audio
  Audio Formats	PCM up to 8ch, Bitstream audio formats including Dolby Atmos & DTS:X, 2ch Analog Dante: Up to 2ch PCM (HDMI), 2ch Analog
  Connectivity
  Ethernet	IEEE 802.1ab 1000BASE-T
  HDCP	HDCP 2.2, 1.x
  EDID	Programmable EDID, EDID Copy/Import, Custom EDID
  RS-232	Programmable RS-232 Commands, Custom Command Generation (RX Only)
  IR	Custom Command Generation
  Dante	Full compatibility with Audinate control and management software tools for Dante
  Installation & Mounting
  Compatible Rack Mount Kit	NHD-000-RACK4
  Included Accessories	Wall Mount Brackets, Brackets for NHD-000-RACK4, Infrared Cables, RS-232 Terminal Block
  Orientation	Observe product chassis text
  Power
  Power Over Ethernet	IEEE 802.3af (15.4W at PSE)
  External Power Supply	Optional part: PSU-12V-1A
  Nominal Power Consumption	8W
  Environmental
  Operating Temperature	+32°F ~ +104°F (0°C ~ +45°C), 10% ~ 90% non-condensing
  Storage Temperature	-4°F to ~ 140°F (-20°C ~ +70°C), 10% ~ 90% non-condensing
  Maximum BTU	51.18 BTU/hr
  Dimensions & Weight
  Rack Units/Wall Box	<1U Flat on Shelf, 6U in NHD-000-RACK4
  Height	25mm/1in
  Width	220mm/8.67in
  Depth	130mm/5.12in
  Weight	0.75kg/1.65lbs
  Regulatory	CE, FCC, RoHS, EAC, RCM
