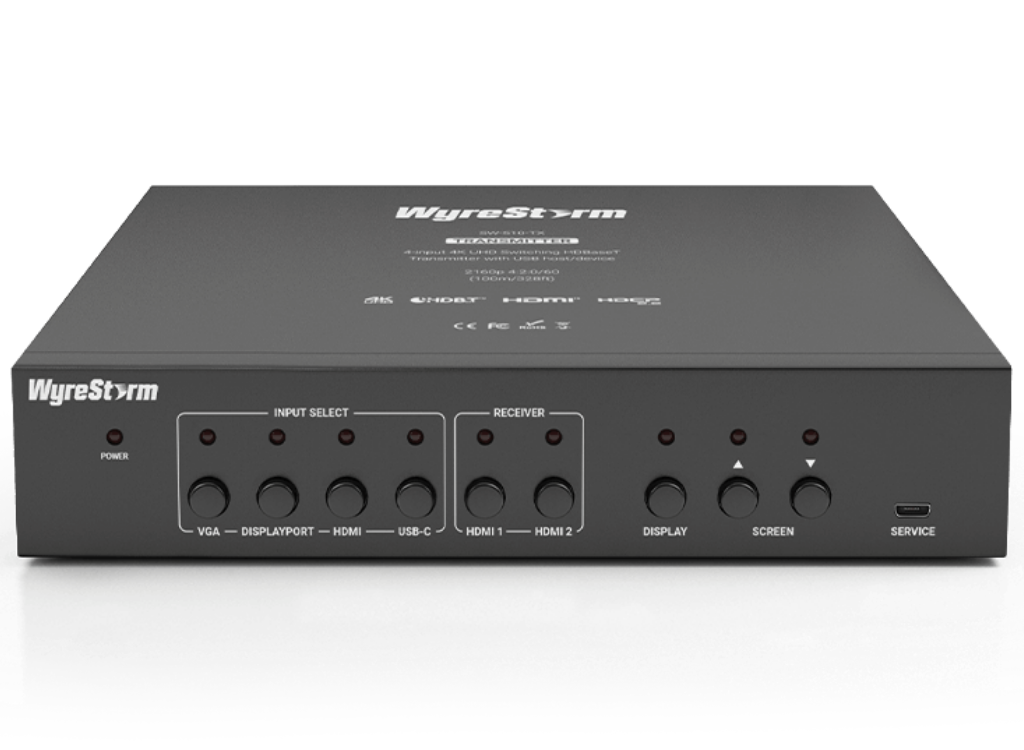

WyreStorm 4-Input 4K HDBaseT Switcher with USB | SW-510-TX
When the next generation of HDBaseT transmission meets WyreStorm’s presentation switcher platform, the result is this powerful switching transmitter, perfect for corporate meeting and classroom environments. Automatic switching inputs with USB host extension and CEC triggering mean an autonomous experience with no user input required.
4-INPUT SWITCHING EXTENDER
A flagship in our PRO range and a first for our switching extenders, the SW-510-TX brings a wide range of premium features into one powerful meeting space solution. Supporting USB routing to both HDMI and DP inputs, this extender accepts HDMI, DisplayPort and USB3.1c sources with a VGA +audio input for legacy devices. Additionally, the SW-510-TX adds support for 4K content and HDCP 2.2 protected content.
ADDITIONAL RECEIVER INPUTS
When the meeting room is in an idle state, the receiver can switch to either of its HDMI inputs which can be used for anything from a signage player to a satellite receiver, keeping the screen active and displaying content. These inputs can also be triggered manually at any time should a Chromecast or AppleTV be fitted for screen mirroring.
CONDITION-BASED RELAYS BUILT INTO RX
With autonomy in mind, this “meeting-room-in-a-box” can be configured to automatically trigger motorized devices within the room. The relays will open or close depending on the status of the transmitter, meaning that upon a source connection being made, the meeting room will come to life with projector screens appearing and window blinds closing.
USB 2.0 PASS-THROUGH
HDBaseT2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities. Furthermore, allowing 2 host devices to be connected, the extender can route USB traffic depending on the currently selected source at the receiver.In the Box
1x SW-510-TX Transmitter
1x 12V DC Power Supply (US/UK/EU)
1x IR Receiver
2x Mounting Brackets
1x 3-pin Screw Down Phoenix Connector
1x 4-pin Screw Down Phoenix Connector
1x Quickstart Guide -
Category Details AUDIO & VIDEO Inputs 1x VGA In (15-pin VGA), 1x Display Port In (DisplayPort 1.3), 1x HDMI In (19-pin type A), 1x Audio In (3.5mm TRS Stereo), 1x Line In (3.5mm TRS Stereo) Outputs 1x HDMI Out (19-pin type A), 1x HDBT Out (8-pin RJ-45 Female) Video Encoding HDBaseT™ Class C Audio Formats 2ch Analog/PCM, Multichannel: LPCM Video Resolution (Max) 1920x1080p @60Hz 8bit, 1920x1200p @60Hz 8bit, 3840x2160p @60Hz 8bit 4:4:4, 4096x2160p @60Hz 8bit 4:2:0 Supported Standards DCI, RGB Maximum Pixel Clock 297MHz COMMUNICATION & CONTROL HDMI HDMI, HDCP 2.2, EDID, DVI/D supported with adapter (not included) HDBaseT HDMI, HDCP 2.2, EDID, CEC, 2ch audio, USB RS-232 1x RS-232 (Control): 3-pin Phoenix, 1x RS-232 (Passthrough): 3-pin Phoenix Ethernet 2x 8-pin RJ-45 female, Bidirectional over HDBaseT™ IR 1x IR RX (3.5mm TS Mono) USB 1x USB-C (USB 3.1 Audio/Video), 2x USB Host (USB-B), 3x USB Device (USB-A) POWER Power Supply 12V DC 2A Max Power Consumption 14.02W Professional Features Switching Automatic or manual switching between HDMI, VGA, DisplayPort, and USB-C inputs Bidirectional USB USB2.0 for connection of webcams, smart touchscreens, and microphones USB-C Alt-mode Supports AV and USB device connection through a single cable CEC Triggering Automatic or manual CEC triggering for compatible screens or projectors Source Content Support Supports up to 4K/60 4:2:0 with HDCP 2.2 -
