• WyreStorm 2-Input 4K Presentation Switcher with Wireless Casting | SW-220-TX-W

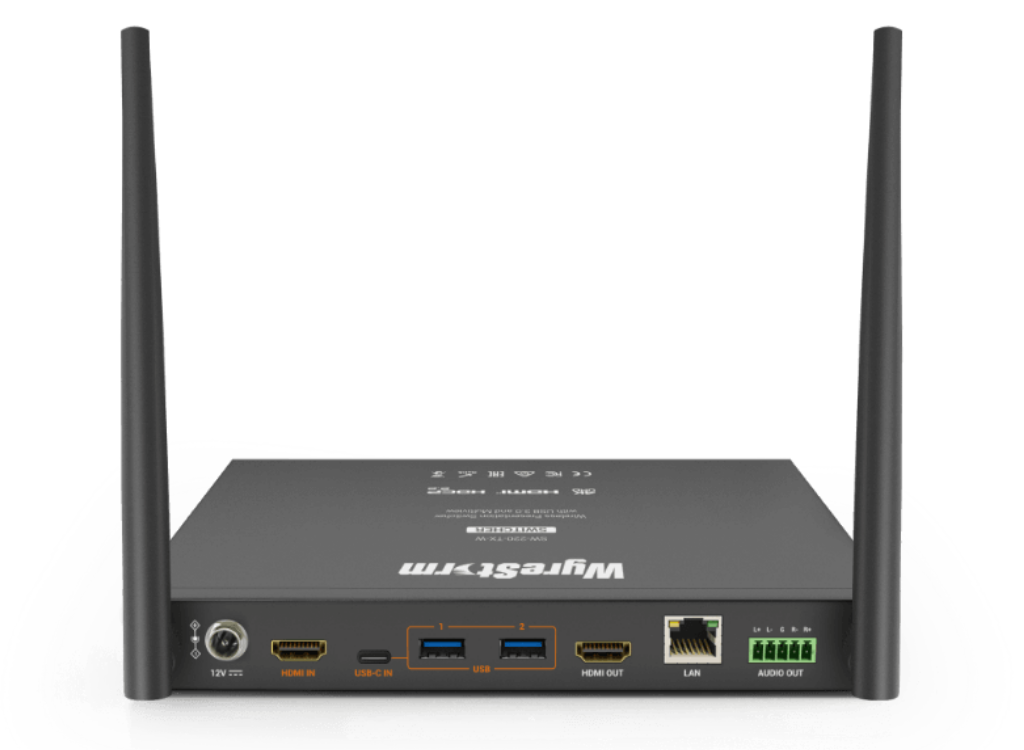

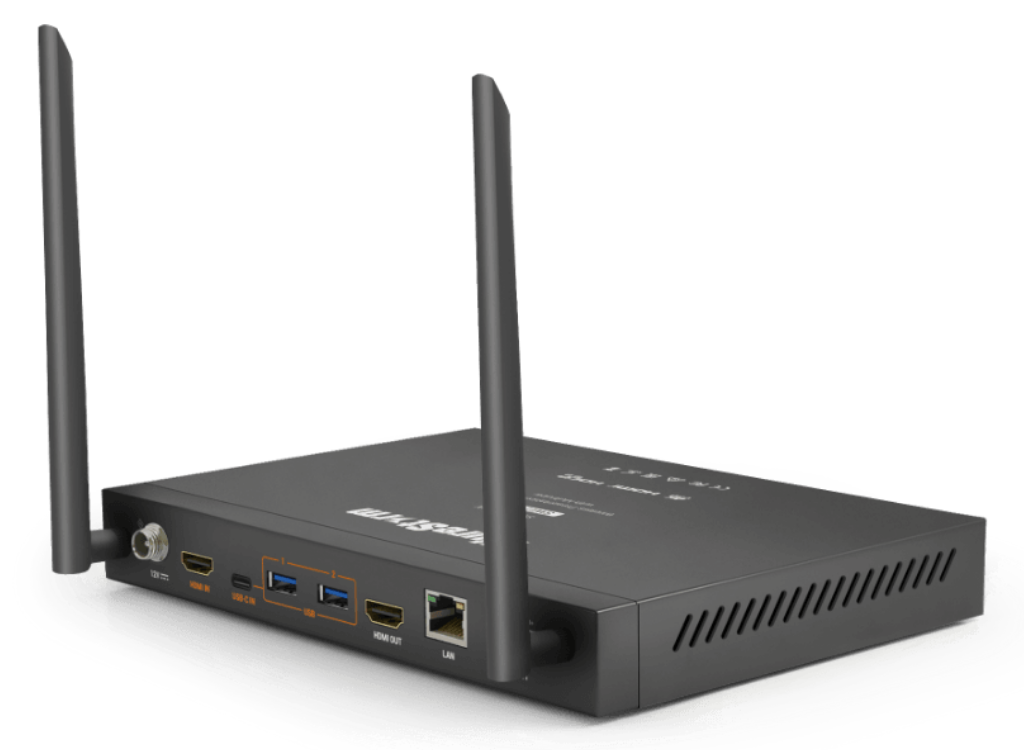

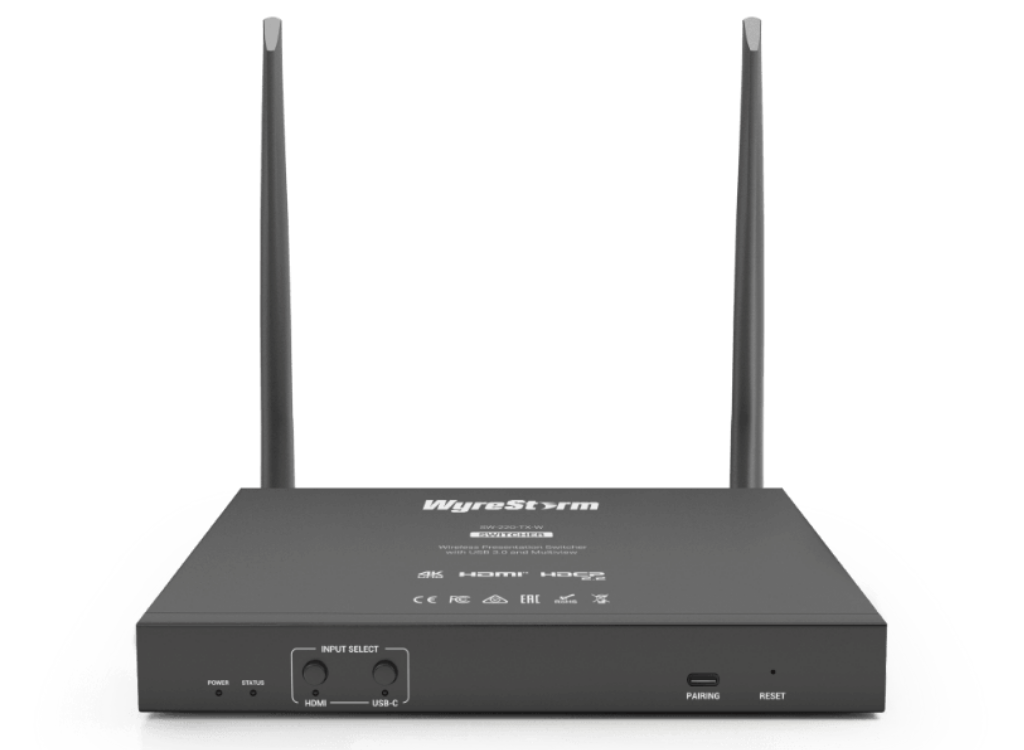

  The SW-220-TX-W is the perfect solution for today’s huddle spaces and small meeting rooms. This switcher is equipped with the essential connectivity to have a successful meeting. USB-C and HDMI local inputs provide simple methods for sharing content to a display. In addition to the wired inputs, the SW-220-TX-W also supports native wireless casting via Airplay and Miracast so content can be shared easily from a tablet or smartphone. Connect a 4K camera or other highspeed USB devices to the USB 3.0 device ports and take advantage of the power and unification that is USB-C.

  Tailored for Corporate
  For the smaller sized meeting rooms, this presentation switcher brings those important corporate meetings together, conveniently allowing every participant to present at any time, and from anywhere in the room.


  WIRELESS CASTING
  Wirelessly screenshare from your laptop, phone or tablet by using Apple Airplay or Miracast. Take advantage of the convenience wireless casting has to offer.


  DUAL-VIEW
  Display up to 2 source devices at the same time. This can be a combination of wired and wireless devices, creating a supportive environment for collaboration between colleagues and teams.


  USB-C DONGLE
  Compatible with the Apollo APO-DG1 casting dongle, simply plug the dongle into an available USB-C port on your computer and tap the button. Getting connected couldn’t be easier!


  USB 3.0
  A built-in USB 3.0 hub on the switcher connected to the USB-C input allows local connection of peripherals devices such as a conference speakerphone or 4K camera.

  In the Box
  1x SW-220-TX-W
  1x 12V DC Power Supply (UK/US/EU/AU)
  1x 5-pin Terminal Block
  2x Mounting Brackets with Screws
  1x Quickstart Guide

• Category	Details
  AUDIO & VIDEO
  Inputs	1x HDMI In, 1x USB-C, Wireless video from Airplay, Miracast, or APO-DG1
  Outputs	1x HDMI Out, 1x Audio Out (5-pin balanced phoenix)
  Video Resolution (Max)	Wireless Casting: 1920x1080p @30Hz, HDMI & USB-C: 3840×2160 @30Hz 4:4:4 8bit
  Video Encoding	Uncompressed HDMI
  HDMI Bandwidth	10.2Gbps
  Audio Formats	2ch PCM
  Supported Standards	DCI
  Maximum Pixel Clock	300MHz
  COMMUNICATION & CONTROL
  HDMI	HDMI 1.4
  USB	2x USB 3.2 Gen1 Type A device ports, 1x USB 3.2 Gen2 Type C host port
  ETHERNET	1x 8-pin RJ-45 (API control & WebUI)
  Wireless	2x Wi-Fi Antennas
  POWER
  Power Supply	12V DC 2A
  Power Consumption	12w
