• WyreStorm 1U/2 Slot Rack Mount for NetworkHD™ NHD-140-TX | NHD-140-RACK-1U

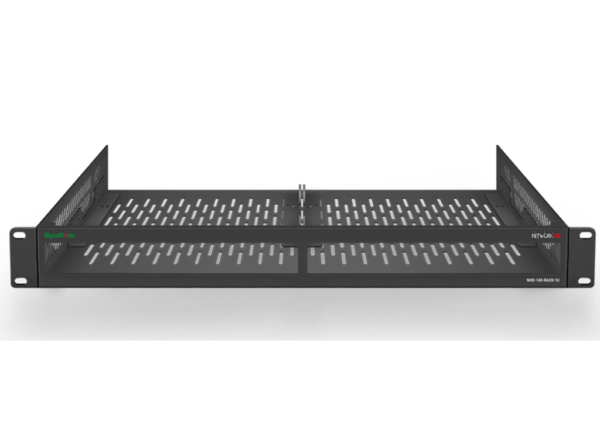

  The NHD-140-RACK-1U is a 1U rack mount that provides a clean installation for up to 2 NetworkHD 100 Series NHD-140-TX quad encoders. The minimal rack unit height and compact mounting arrangement allows a very high NetworkHD 100 Series encoder density designed for space restricted deployments.
  The robust and thermally optimized design helps keep your centralized NetworkHD solution perfectly organized.


  IDEAL HEAT DISSIPATION
  Horizontal slot installation supports up to 2 NetworkHD 140-TX components providing ideal component heat dissipation and airflow – a key factor in increasing reliability and product lifespan.


  WE SHIP COMPLETE
  All mounting hardware provided: rack, brackets, blanking plates, rails, lacing bar, handles and screws.


  ALL STEEL DESIGN
  Strong, steel enclosure construction keeps hardware secure and protected with units secured via brackets, rails and front panel screws.


  STREAMLINE YOUR INSTALL
  Specifically designed for organizing NetworkHD components within the main rack location, the NHD-140-RACK-1U de-clutters the rack, improving cable management, port identification and unit access.

  In the Box
  1x NHD-140-RACK-1U Chassis
  4x Encoder Mounting Bracket
  1x Blanking Plate
  1x Assembly Screws Pack

• Category	Details
  Rack Units	1U
  Height	43.5mm / 1.71in
  Width	483mm / 19in
  Depth	162mm / 6.38in
  Weight (Empty)	1.01kg / 2.23lbs

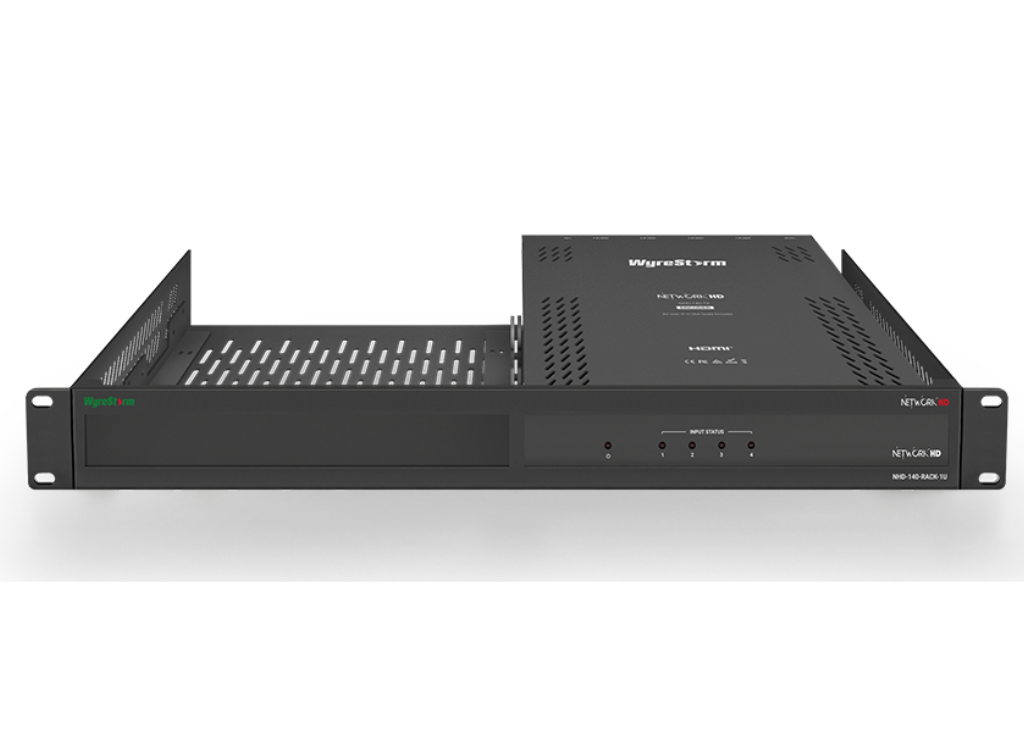

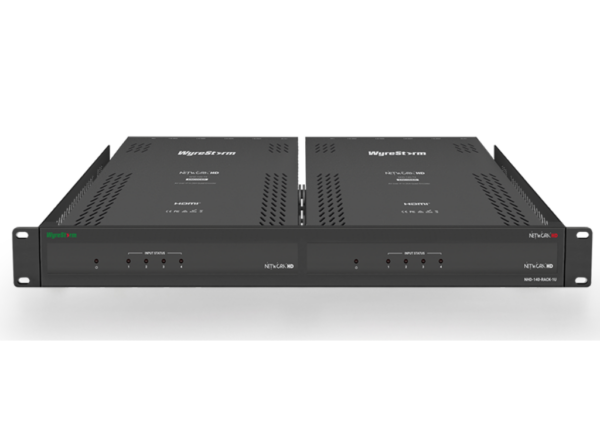

  Mounting Design	Mounts 1 or 2 NHD-140-TX 100 Series Quad Encoders side-by-side
  Rack Compatibility	High encoder density for AV/IT equipment racks
  Cable Management	Front or rear-facing connections for alternative designs
  Thermal Dissipation	Optimal thermal dissipation for active/passive cooling
  Installation Efficiency	Pre-built rack kit for faster installation
  Build Quality	Sturdy all-steel construction
  Included Accessories	4x mounting brackets, 1x blanking plate, screws
