Vivolink USB-C HUB For Conference System | VLUSBCHUB

• Description
• Specifications
• Downloads

• Vivolink USB-C HUB For Conference System

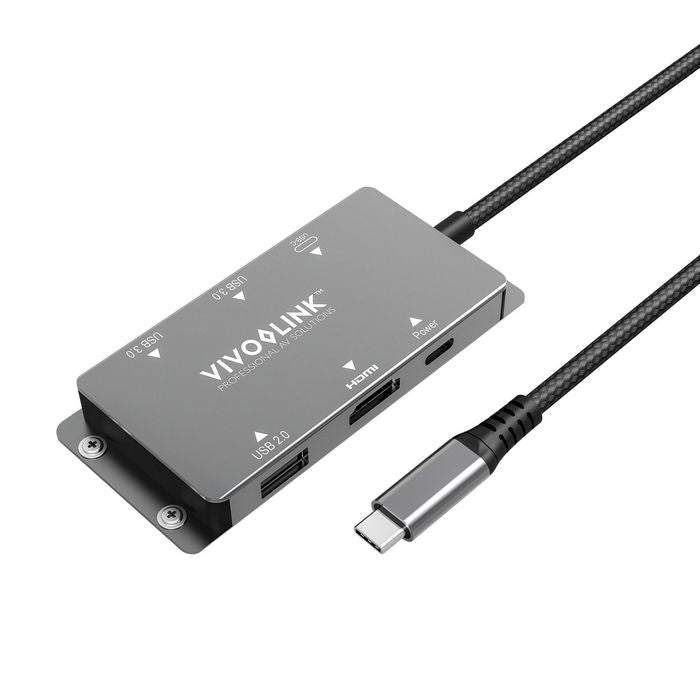

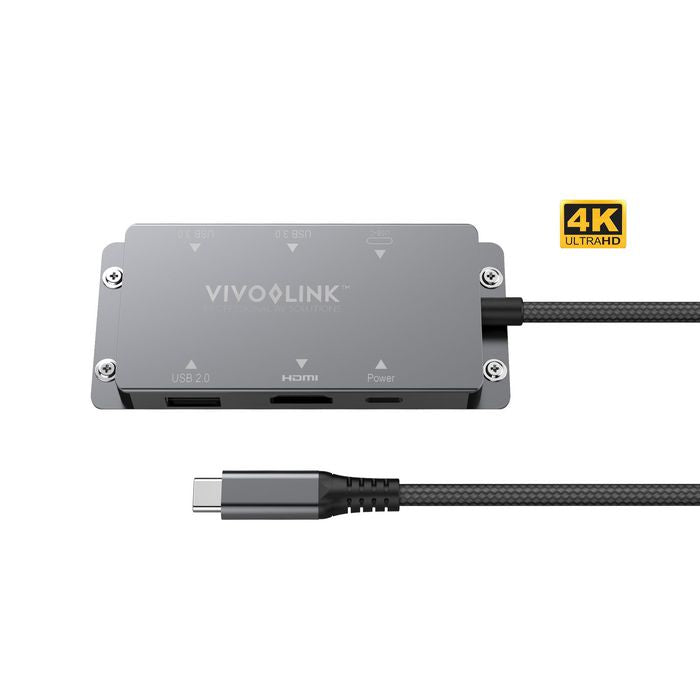

  Vivolink 4K USB-C HUB for conference system connects all together. It is designed as a HUB that connects all USB devices in the room and send picture out via HDMI port.
  The 1.5m USB-C cable enables mounting under meeting table and with a Vivolink desk grommet VLDG60.
  One USB-C cable on the desk that connects to all devices and charge the laptop.

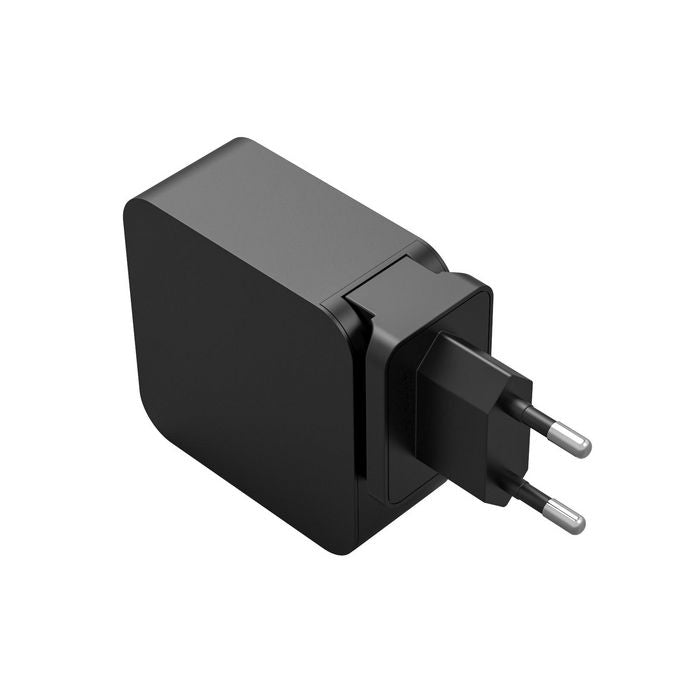

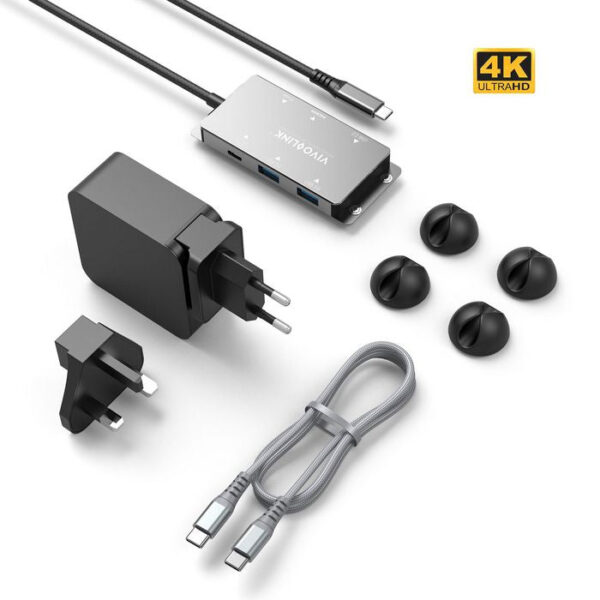

  The kit includes a 65w charger.

  1 x 1.5m USB-C cable for PC connection

  1 x HDMI output 4K@30Hz resolution

  2 x USB3.0 input 5 Gbit

  1 x USB-C input 5 Gbit

  1 x USB2.0 input 480 Mbps

• Category	Specification
  Design
  Housing material	Metal
  Integrated USB cable	Yes
  USB cable length	1.5 m
  Legal Information
  UNSPSC Code	43201401
  Logistics data
  Master (outer) case height	5 cm
  Master (outer) case length	33 cm
  Master (outer) case width	16.5 cm
  Package dimensions
  Gross Weight (Package, kg)	0.472 kg
  Packaging content
  Cables included	USB charging cable
  Performance
  HDMI output	Yes
  HDMI ports quantity	1
  HDMI version	1.4
  Maximum resolution	3840 x 2160 Pixels
  Number of displays supported	1
  Refresh rate at maximum resolution	30 Hz
  RoHS compliance	Yes
  USB connector form factor	Straight
  USB connector gender	Male
  USB connector type	USB Type-C
  USB version	3.2 Gen 1 (3.1 Gen 1)
  Product dimensions
  Net Weight (Product, kg)	0.138 kg
  Vendor information
  Brand Name	Vivolink
  Warranty	2 Year(s)

• VLUSBCHUB : Product Sheet
