• Vivolink USB-C HUB For Conference System (Dual HDMI) | VLUSBCHUB3

  Vivolink 4K USB-C HUB – Your all-in-one solution for video conferencing systems. Connect all your equipment, just like you would with a docking station for your computer.

  This USB-C HUB is designed to be attached under the meeting desk and support all connections for a conference room. Simply connect an USB-C cable to your laptop, and the laptop will be charged.

  Connection gives full access to the USB devices in the room and delivers 4K video plus sound via the HDMI output.

  The LAN port gives cabled network connection to the laptop.

  Ensure to use Vivolink cable PROUSBCMM* or PROUSBCMMS* with screw lock, for the connection from PC to HUB.

  Support following formats: DisplayLink, DP Alt mode, DisplayPort


  For 4K@60Hz:
  Reccomended HOST cable 2m item number: PROUSBCMM2
  Reccomended HDMI cables for long distance is: PROHDMIOP20

  Package Content:
  1 x HUB

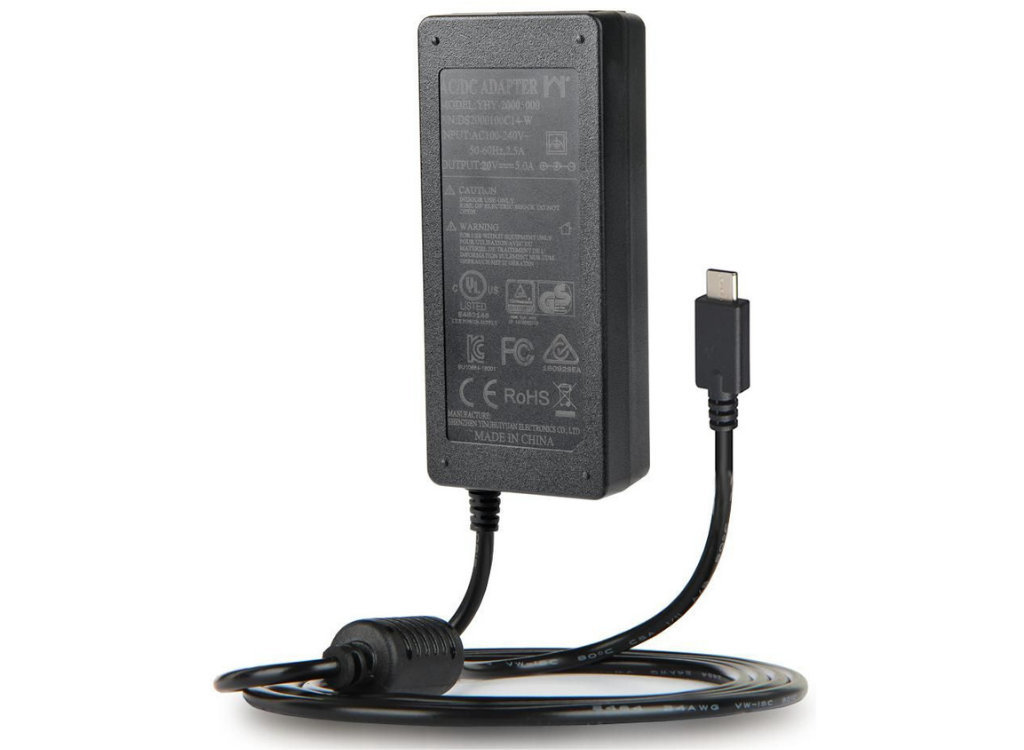

  1 x 100W USB-C PSU incl. mount for PSU
  1 x PSU Bracket mount
  1 x UK Power Cable 1.2m (Type G)
  1 x EU Power Cable 1.2m (Type C)
  4 x Adhesive Cable Fixers

• Category	Specification
  Design
  Housing material	Metal
  Integrated USB cable	Yes
  Legal Information
  UNSPSC Code (Icecat)	43201401
  Logistics data
  Master case height	5 cm
  Master case length	33 cm
  Master case width	16.5 cm
  Package dimensions
  Gross Weight (Package, kg)	0.472 kg
  Packaging content
  Cables included	USB charging cable
  Performance
  DisplayPort output	No
  DVI output	No
  HDMI output	Yes
  HDMI ports quantity	2
  HDMI version	1.4
  Maximum resolution	3840 x 2160 Pixels
  Number of displays supported	2
  RoHS compliance	Yes
  USB connector form factor	Straight
  USB connector gender	Male
  USB connector type	USB Type-C
  USB version	3.2 Gen 1 (3.1 Gen 1)
  Product dimensions
  Net Weight (Product, kg)	0.138 kg
  Vendor information
  Brand Name	Vivolink
  Warranty	3 Year(s)
