• Vivolink USB-C 4K KVM Extender Over HDBT3.0 – VLUSBCEXT151

  USB-C 4K KVM Extender over HDBT3.0

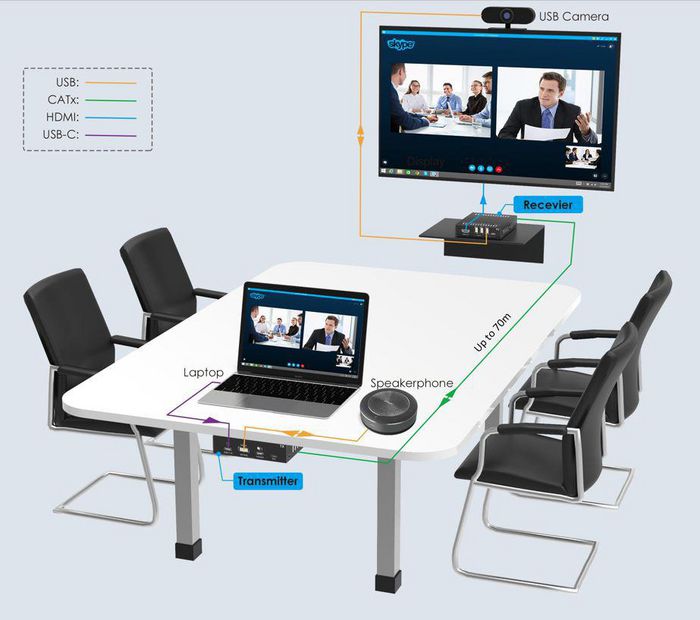

  The VLUSBCEXT151 is an USB-C extender kit that can be used for meeting rooms with both screen and USB devices like cameras. HDBaseT 3.0 support the the highest performing long distance video distribution solution in the AV market. It allows one USB-C channel to be transmitted over distances of up to 70m at 4K@30Hz (40m 4K@60Hz) 4:4:4 via CAT6a cable using the latest HDBaseT VS3000 chipset

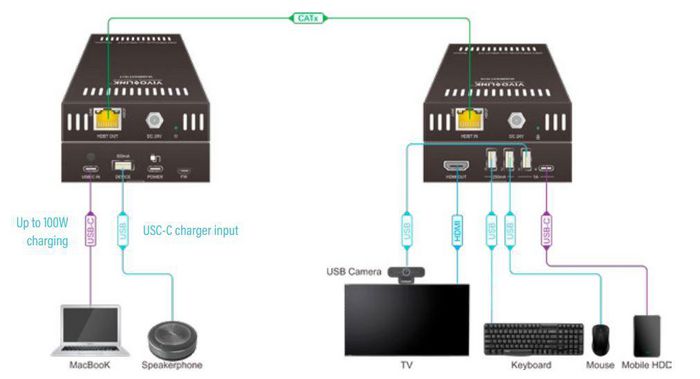

  Transmitter unit has USB-C input for Laptop and 100W charge port (charger is not included in the package but you can connect any USC-C charger for laptop here) + USB-A connection for example desk speaker microphone. HDBaseT output to receiver unit and support 100m lenght of CAT6A cable

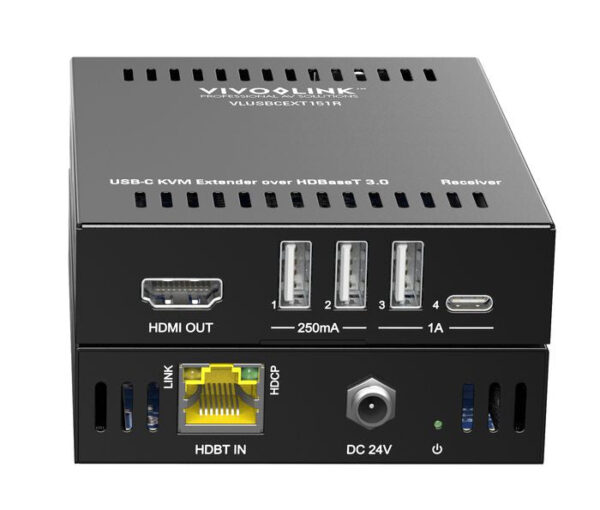

  Receiver unit have HDMI 4K output for screen and 4 USB 2.0 inputs for devices at the screen side, like PTZ camera, soundbar and USB touch plate from screen.

  Support following formats: DisplayLink, DP Alt mode, DisplayPort

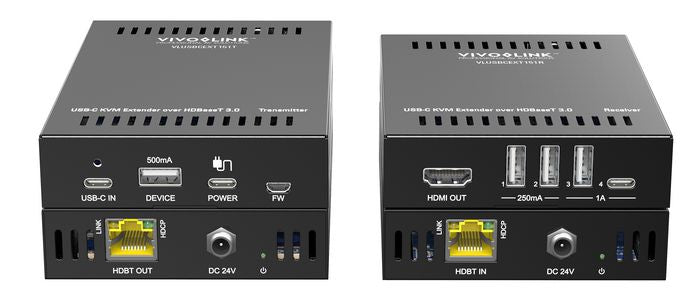

  The USB-C extender Kit includes one transmitter with USB-C input for Laptop and a receiver for the screen. There is one power supply that can be mounted at the transmitter or receiver.

  Supports HDMI 2.0b, 4K@60Hz 4:4:4, HDCP 2.2 compliant.

  USB-C input supports 4K@60Hz 4:4:4 HDR10+

  USB-C 100W charge port

  4K@30Hz 70m transmission 18Gbit uncompressed

  3 x USB + 1 x USB-C supporting USB 2.0 transfer speed up to 300Mbps

  Supports bi-direction 24V PoC power supply

  HDCP 2.3 compatible

  Support Dolby Vison and HDR10+

• Category	Specification
  Features
  Audio support	Yes
  Cable types supported	Cat6a
  Connectivity technology	Wired
  Easy to install	Yes
  LED indicators	Link/Power
  Maximum digital resolution	4096×2160@60Hz Pixels
  Maximum transfer distance	70 m
  Plug and Play	Yes
  Product colour	Black
  Supported resolutions	4K@60Hz 4:4:4
  USB 2.0 ports quantity	4
  Legal Information
  EU ECCN Code	N/A
  UNSPSC Code	43211601
  US ECCN Code	5A992
  Operational conditions
  Operating temperature (T-T)	-5 – 55 °C
  Storage temperature (T-T)	-25 – 70 °C
  Package dimensions
  Depth (package, cm)	16.1 cm
  Gross Weight (Package, kg)	0.82 kg
  Height (package, cm)	12.8 cm
  Width (package, cm)	18.3 cm
  Packaging content
  AC adapter included	Yes
  Included power plug types	EU/GB
  Manual	Yes
  Mounting bracket(s) included	Yes
  Quick installation guide	Yes
  Ports & interfaces
  RJ-45 ports quantity	1
  USB port type	USB Type A/USB Type-C
  Power
  AC adapter output current	1.25 A
  AC adapter output voltage	24 V
  AC input voltage	100 – 240 V
  Power consumption (receiver) (max)	18.2 Watt
  Product dimensions
  Net Weight (Product, kg)	0.5 kg
  Product Depth	16.1 cm
  Product Height	12.8 cm
  Product Width	18.3 cm
  Receiver
  RJ-45 ports quantity (receiver)	1
  Technical details
  Dimensions (WxDxH)	90 x 21.7 x 120 mm
  Maximum resolution	4096×2160 Pixels
  Video in	USB-C
  Weight	265 g
  Transmitter
  Number of displays supported	1
  RJ-45 ports quantity (transmitter)	1
  Transmitter local keyboard/mouse port type	USB
  Transmitter local video port	Yes
  Transmitter video port type	HDMI
  Vendor information
  Brand Name	Vivolink
  Warranty	3 Year(s)

• VLUSBCEXT151 : Datasheet
