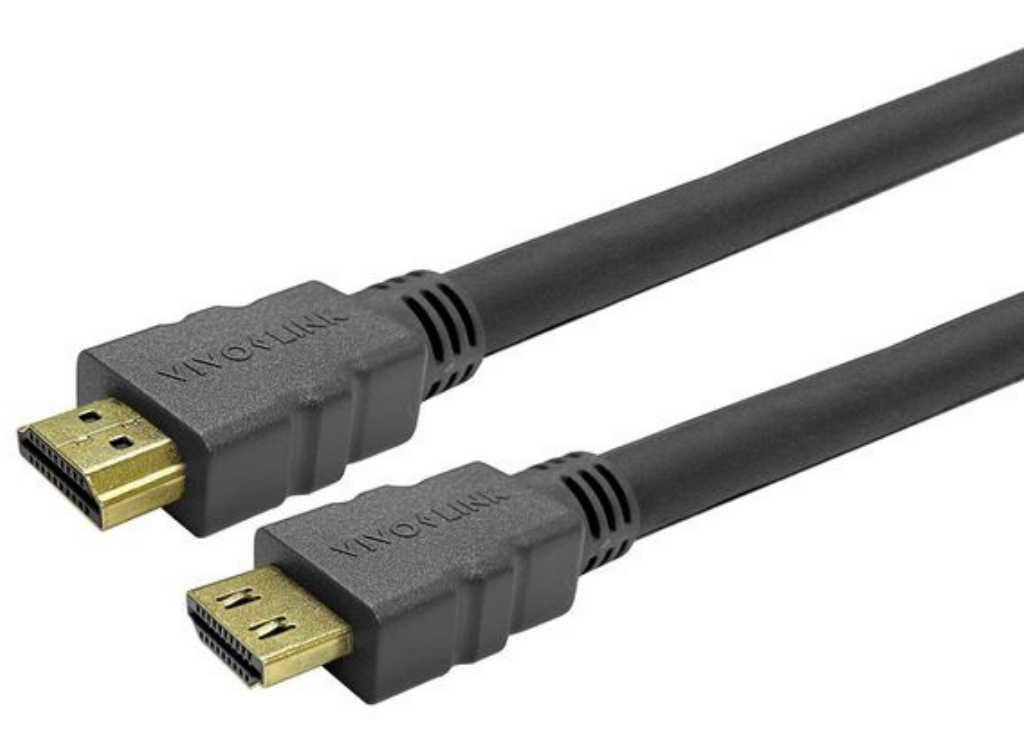

Vivolink Pro HDMI Cable 3m with Lock | PROHDMIHD3L

• Description
• Specifications
• Downloads

• Vivolink Pro HDMI Cable 3m with Lock | PROHDMIHD3L

  High Performance and High Speed HDMI 2.0 18Gbit Cable with Ethernet.

  Supports Resolutions up to 4K@60Hz with HDCP 2.2, CEC and ARC

  Ultra flexible.

• Feature	Specification
  3D Support	Yes
  Audio Return Channel (ARC)	Yes
  AWG Wire Size	26
  Cable Jacket Material	Polyvinyl chloride (PVC)
  Cable Length	3 m
  Cable Material	Copper
  Cable Shielding	Aluminum mylar foil
  Colour Depth	16 bit
  Connector 1	HDMI
  Connector 1 Form Factor	Straight
  Connector 1 Gender	Male
  Connector 2	HDMI
  Connector 2 Form Factor	Straight
  Connector 2 Gender	Male
  Connector Contacts Plating	Gold
  Data Transfer Rate	18 Gbit/s
  Dolby Technologies	DTS-HD Master Audio
  HDCP	Yes
  HDCP Version	2.2
  HDMI Ethernet Channel	Yes
  HDMI Version	2.0
  HDR Supported	Yes
  HDR Technology	High Dynamic Range 10 (HDR10)
  Maximum Refresh Rate	60 Hz
  Maximum Resolution	4096 x 2160 Pixels
  Plug and Play	Yes
  Product Colour	Black
  Pull-off Force	2 kg
  Pull-Resistant Connector(s)	No
  Quantity per Pack	1 pc(s)
  RGB Support	4:4:4
  RoHS Compliance	Yes
  Supported Graphics Resolutions	4096 x 2160
  Supported Video Modes	2160p
  UNSPSC Code (Icecat)	43202222
  Master Case Height	2.6 cm
  Master Case Length	10 cm
  Master Case Width	3.85 cm
  Operating Temperature (T-T)	-20 – 60 °C
  Cable Colour	Black
  Master Case Gross Weight	1 kg
  Package Weight	0.83 kg
  Quantity per Box	20 pc(s)
  Package Depth	16.3 cm
  Gross Weight (Package)	0.39 kg
  Package Height	6.4 cm
  Package Width	18.7 cm
  Net Weight (Product)	0.29 kg
  Brand Name	Vivolink
  Warranty	99 Year(s)
  Cable Diameter	8 mm
