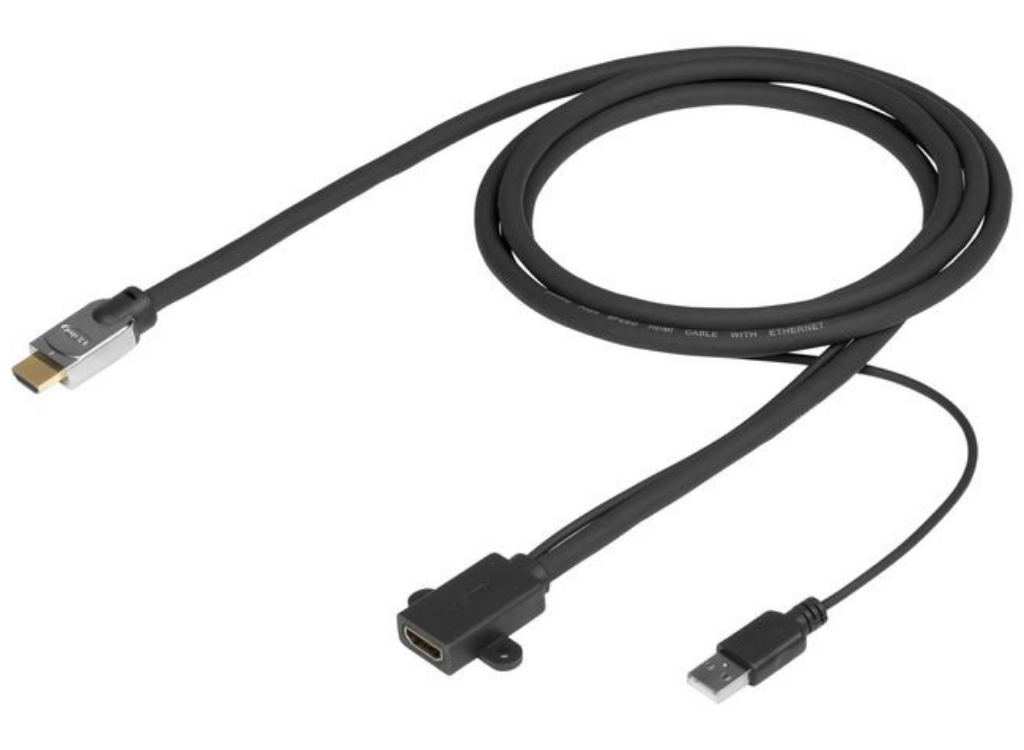

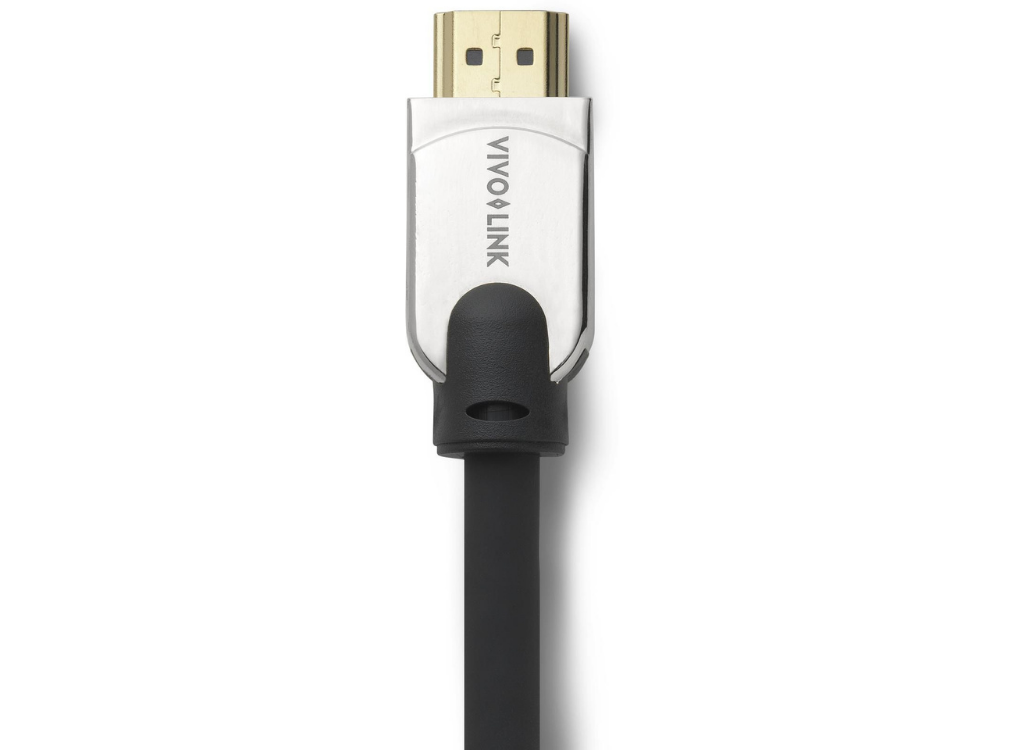

Vivolink Pro 2m HDMI Cable M/F with USB Power Support | PROHDMIHDMFM2

• Description
• Specifications
• Downloads

• Vivolink Pro 2m HDMI Cable M/F with USB Power Support | PROHDMIHDMFM2

  High Performance and High Speed HDMI 2.0 18Gbit Cable with Ethernet and Metal Housing.

  Supports Resolutions up to 4K@60Hz with HDCP 2.2, CEC and ARC

  Ultra flexible.

  Unique design features made for Professional AV environments.

  USB cable for power injection (fiber cables).

  HDMI female end has ears for securing and mounting the cable e.g under a table.

• Category	Features
  Features
  3D Support	Yes
  Audio Return Channel (ARC)	Yes
  AWG Wire Size	28
  Cable Jacket Material	Polyvinyl chloride (PVC)
  Cable Length	2 m
  Cable Material	Copper
  Colour Depth	16 bit
  Connector 1	HDMI
  Connector 1 Form Factor	Straight
  Connector 1 Gender	Male
  Connector 2	HDMI
  Connector 2 Form Factor	Straight
  Connector 2 Gender	Female
  Connector Contacts Plating	Gold
  Data Transfer Rate	18 Gbit/s
  Dolby Technologies	DTS-HD Master Audio
  HDCP	Yes
  HDCP Version	2.2
  HDMI Ethernet Channel	Yes
  HDMI Version	2.0
  High Dynamic Range (HDR)	Yes
  HDR Technology	HDR10
  Maximum Refresh Rate	60 Hz
  Maximum Resolution	4096 x 2160 Pixels
  Plug and Play	Yes
  Product Colour	Black
  Quantity per Pack	1 pc(s)
  RoHS Compliance	Yes
  Supported Graphics Resolutions	4096 x 2160
  Supported Video Modes	2160p
  Legal Information
  EU ECCN Code	N/A
  UNSPSC Code	43202222
  US ECCN Code	EAR99
  Operational Conditions
  Operating Temperature (T-T)	-20 – 60 °C
  Package Dimensions
  Depth (Verified)	16 cm
  Gross Weight (Verified)	0.17 kg
  Height (Verified)	4.5 cm
  Width (Verified)	16.5 cm
  Product Dimensions
  Net Weight (Product, kg)	0.07 kg
  Vendor Information
  Brand Name	Vivolink
  Warranty
  Warranty	99 Year(s)
  Weight & Dimensions
  Cable Diameter	7.3 mm
