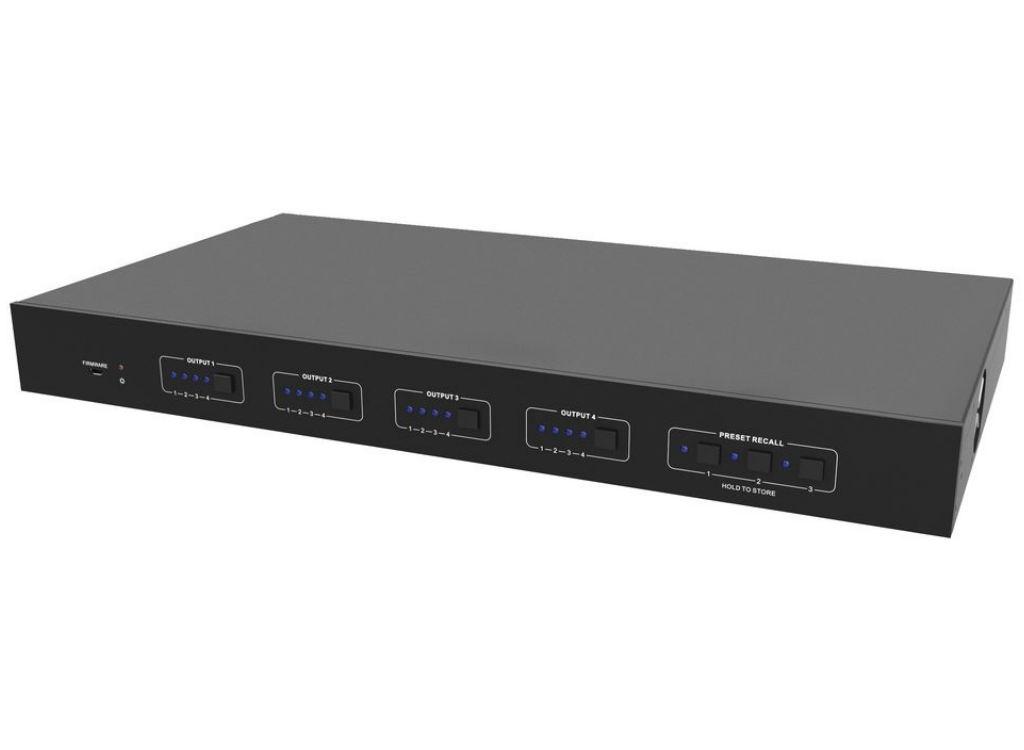

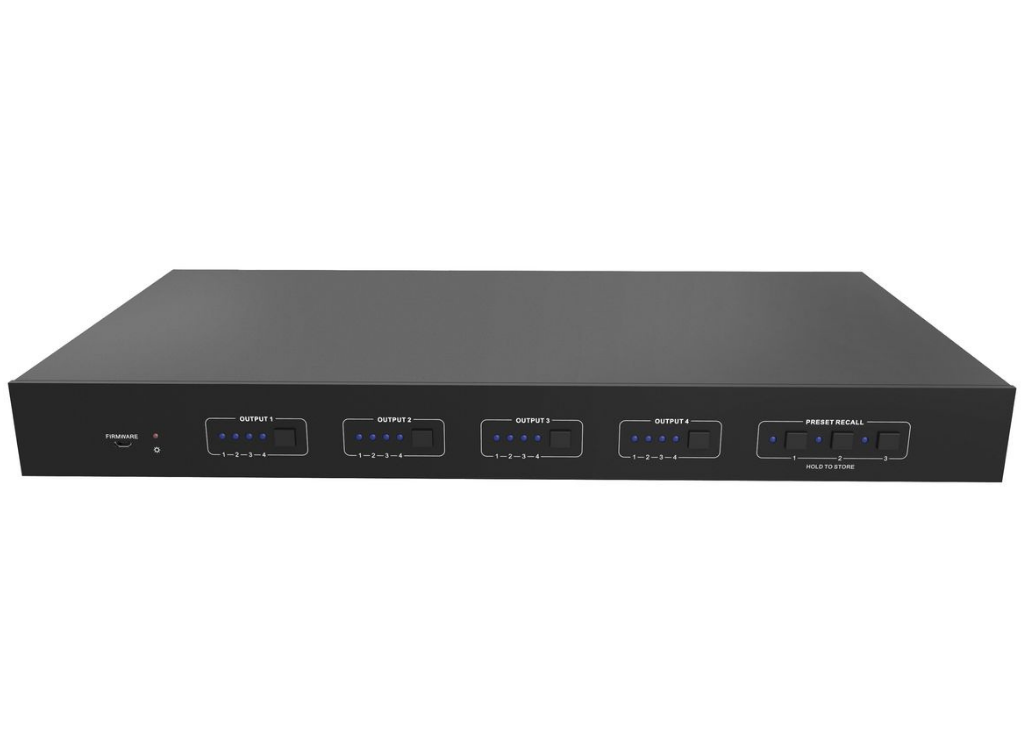

Vivolink Matrix Switcher 4×4 w/ 1 HDMI + 3 HDBaseT Out | VLHDMIMAT4X431

• Description
• Specifications
• Downloads

• Vivolink Matrix Switcher 4×4 w/ 1 HDMI + 3 HDBaseT Out | VLHDMIMAT4X431

  4K HDMI2.0 HDBaseT Matrix HDCP2.2, audio de-embedder HD Audio support, build-in GUI + LAN control

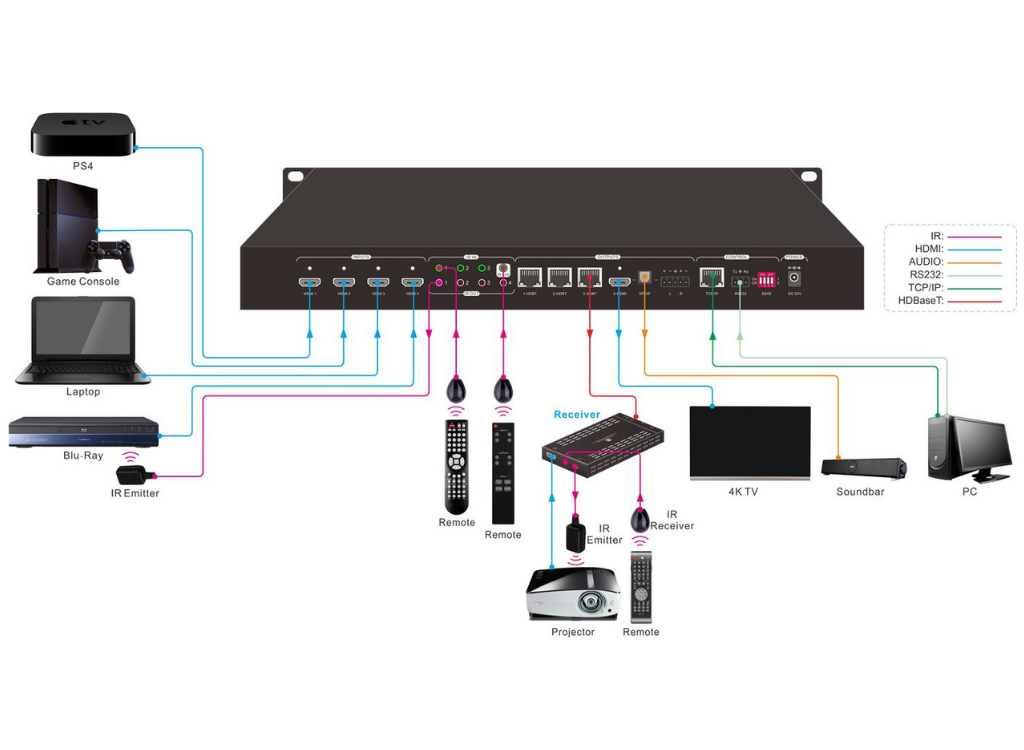

  Typical installations:
  Professional signal distribution with selectable in and outputs


  Function:
  4 HDMI inputs

  3 HDBaseT Outputs

  1 HDMI outputs

  Audio SPDIF (coax) + L/R

  Control: IR + RS232 + TCP/IP

  Compatible receiver: VLHDMIMAT4X431-R

• Category	Details
  Features
  Audio Formats Supported	PCM
  Audio Output Channels	2.0 channels
  Bandwidth	18 Gbit/s
  EDID Support	Yes
  HD Type	4K Ultra HD
  HDCP	Yes
  HDCP Version	2.2
  LED Indicators	Yes
  Maximum Refresh Rate	60 Hz
  Plug and Play	Yes
  Product Colour	Black
  Rack Mounting	Yes
  Remote Control Type	IR + RS232
  Legal Information
  EU ECCN Code	N/A
  US ECCN Code	EAR99
  Operational Conditions
  Operating Temperature	-5 to 55 °C
  Storage Relative Humidity	10 – 90 %
  Storage Temperature	-25 to 70 °C
  Package Dimensions
  Gross Weight (Package)	1.9 kg
  Packaging Content
  AC Adapter Included	Yes
  Cables Included	IR Sensor
  Mounting Brackets Included	Yes
  Remote Control Included	Yes
  Ports & Interfaces
  Audio (L/R) Out	1
  HDMI In	4
  HDMI Version	2.0
  Number of HDMI Outputs	1
  RJ-45 Output Ports	3
  RS-232 Ports	1
  Power
  AC Input Voltage	100 – 240 V
  Product Dimensions
  Net Weight	1.8 kg
  Depth	23.65 cm
  Height	4.4 cm
  Width	43.64 cm
  Technical Details
  Audio Support	Yes

• Description	Downloads
  Datasheet	Download
