• Vivolink HDMI Over IP 120m 1:253 + IR, Transmitter – VLHDMIEXT1-TV2

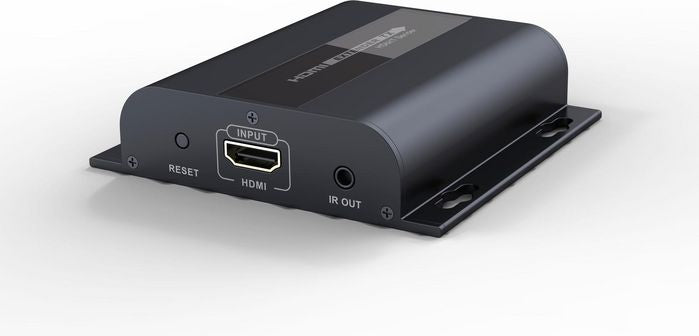

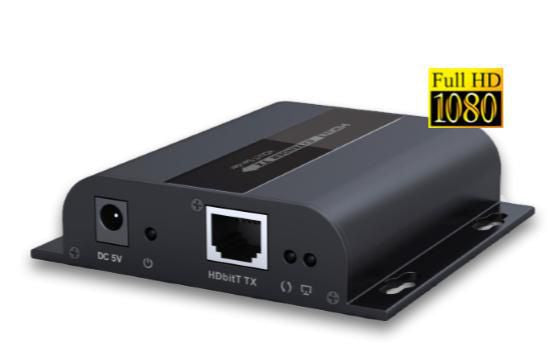

  HDMI over IP 120m 1:253 + IR, Transmitter
  Transmitter unit with IR transmitter Max resolution 1080P@60hz

  VLHDMIEXT1-TV2 is transmitter for VLHDMIEXT1-RV2

  It can extend video/audio/IR with a resolution of 1080P@60 Hz up to 120 meters via single network cable (Cat 5e/6)

  Up to 253 receivers can be connected to one transmitter using Gbit switch.
  One receiver will occupy 18Mbit bandwith.

  Note that this product is not compatible with HDBaseT receivers

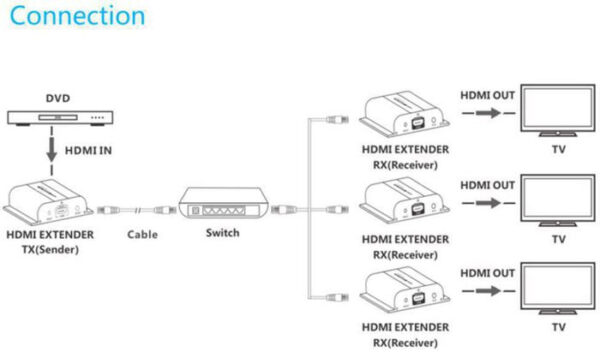

  Typical installation:

  It can be installed anywhere to extend HDMI signal up to 120m including AV/IR control signals

  E.g. Private installation, Info screens in Shops or offices

  Function:

  HDMI extender

  Point to point,Tx to Rx for 120m 1080P@60Hz

  Signal can be spitted with a GBit Switch to several receivers

  One receiver device only occupy 18M bandwidth.

  Key features:

  Super cost-effective HDMI extender over IP network

  TX: 192.168.1.210

  RX: 192.168.1.220

  Supports Full HD resolution 1080P@60 Hz

  Maximum transmission distance 120m

  Supports IR control (IR receiver and transmitter included)

  Signal can be spitted with a GBit Switch to several receivers

• Category	Specification
  Features
  Cable length	120 m
  Cable types supported	Cat5e/Cat6
  HDCP	Yes
  HDCP & EDID bypass	Yes
  HDCP pass-through	Yes
  HDCP version	1.4
  IR pass-through	Yes
  LED indicators	Yes
  Maximum resolution	1920x1080p Pixels
  Maximum transfer distance	120 m
  Product colour	Black
  Remote control type	IR
  Supported video modes	1080p
  Type	AV Transmitter
  Video compression formats	H.264
  Wall mountable	Yes
  Legal Information
  EU ECCN Code	N/A
  US ECCN Code	5A992
  Operational conditions
  Operating relative humidity (H-H)	10 – 90 %
  Operating temperature (T-T)	0 – 60 °C
  Package dimensions (verified)
  Depth Verified	11.9 cm
  Gross Weight Verified	0.306 kg
  Height Verified	8 cm
  Width Verified	15.3 cm
  Packaging content
  AC adapter included	Yes
  Included power plug types	EU
  IR blaster included	No
  IR receiver included	Yes
  Ports & interfaces
  3.5 mm (1/8-inch) in	Yes
  3.5 mm (1/8-inch) out	Yes
  Connectivity technology	Wired
  DC-in jack	Yes
  Ethernet LAN	Yes
  HDMI in	1
  HDMI version	1.4
  Number of HDMI outputs	1
  Remote (IR) input	1
  Remote (IR) output	1
  RJ-45 output ports	1
  Video in	1
  Video out	1
  Power
  AC input frequency	50 / 60 Hz
  AC input voltage	100 – 240 V
  Power consumption (typical)	3.5 Watt
  Product dimensions
  Net Weight (Product, kg)	0.206 kg
  Product Depth	9.4 cm
  Product Height	2.37 cm
  Product Width	9.68 cm
  Technical details
  Audio support	Yes
  Vendor information
  Brand Name	Vivolink
  Warranty	3 Year(s)
  Categories
  Main category	ProAV Solutions
  Subcategory	Signal Management
  Subcategory	Extenders
  Subcategory	AV Extenders
