Vivolink HDMI 2.0 4×2, 4K@60Hz, 18Gbps, HDCP 2.2, SPDIF | VLHDMIMAT4X2RS

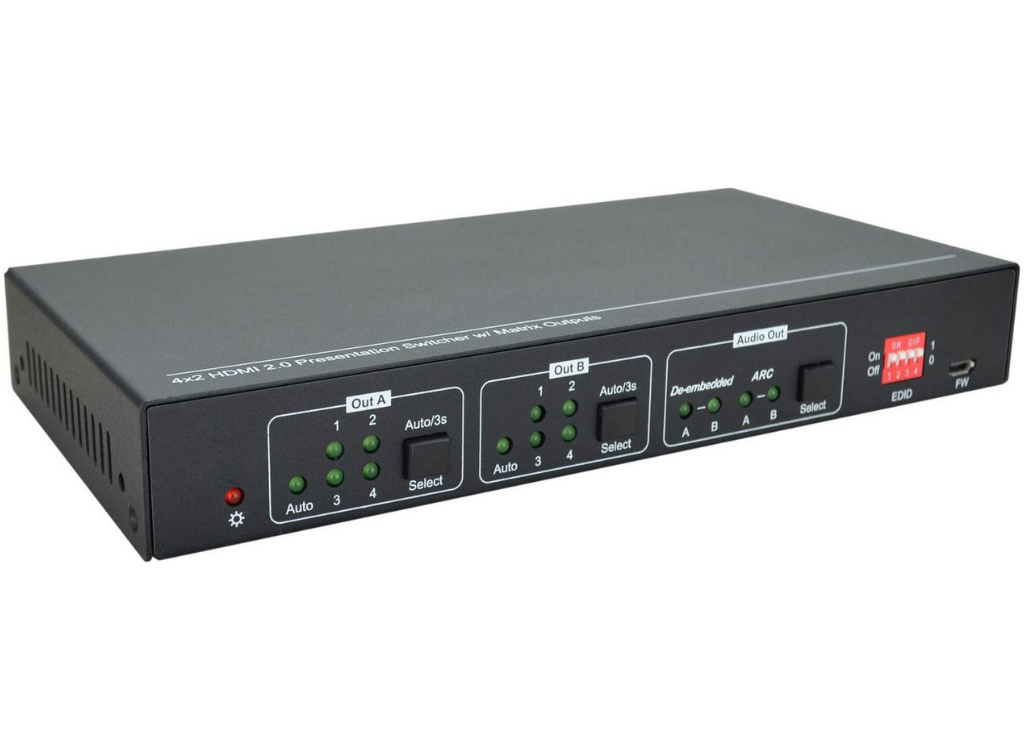

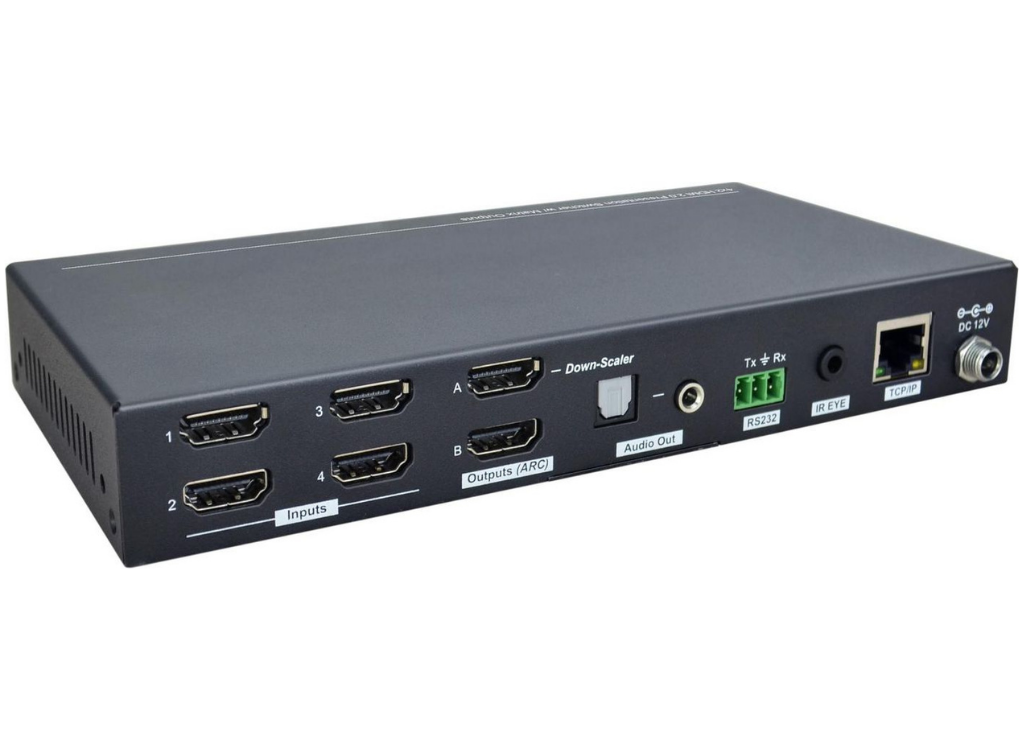

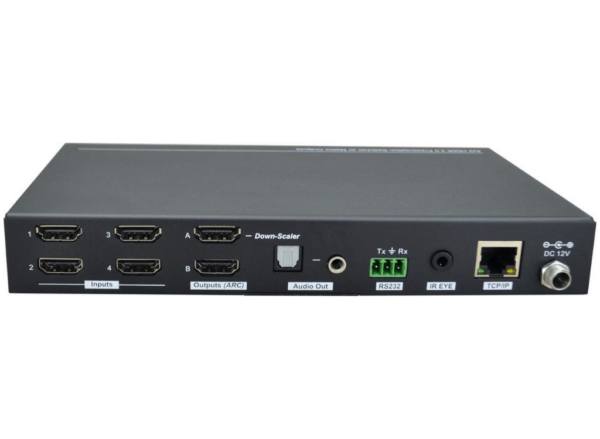

VLHDMIMAT4X2RS is a 4K HDR capable 4×2 HDMI Matrix Switcher that features 18Gbps bandwidth and HDCP2.2 on all inputs and outputs. It’s fully compliant with HDMI2.0 standard and backward compatible with old HDMI1.4 sources and displays. SPDIF and 3.5mm audio breakout audio from corresponding HDMI outputs.
Smart EDID management.
True 4K matrix switcher that can be controlled via WEB GUI (not telnet)
-
Category Specification Design Control Type Buttons Housing Colour Black Display Built-in display: No Features Audio Formats Supported PCM Audio Output Channels 2.0 channels Bandwidth 18 Gbit/s CEC Support Yes EDID Support Yes HD Type 4K Ultra HD HDCP Yes HDCP Version 2.2 HDR Support Yes LED Indicators Yes Maximum Frame Rate 60 fps Maximum Resolution 3840 x 2160 Pixels Plug and Play Yes Product Colour Black Product Type Scaling Matrix Switcher Remote Control Type IR + RS232 Legal Information EU ECCN Code N/A US ECCN Code EAR99 Operational Conditions Operating Temperature -5 to 55 °C Package Dimensions Depth 23.3 cm Gross Weight 1.05 kg Height 8.4 cm Width 26.4 cm Packaging Content AC Adapter Included Yes Cables Included IR Sensor Mounting Brackets Included No Remote Control Included Yes Ports & Interfaces 3.5 mm Out Yes Audio (L/R) Out 1 Digital Audio Optical Out 1 Ethernet LAN (RJ-45) Ports 1 HDMI In 4 HDMI Input Ports Quantity 4 HDMI Output Ports Quantity 2 HDMI Ports Quantity 6 HDMI Version 2.0b Number of HDMI Outputs 2 RJ-45 Input Ports 1 RS-232 Ports 1 S/PDIF Out Port Yes USB Connector Type Micro-USB USB Ports Quantity 1 Power AC Input Frequency 50/60 Hz AC Input Voltage 100 – 240 V Output Current 1000 mA Output Voltage 12 V Power Consumption (Max) 7.5 Watt Product Dimensions Net Weight 0.86 kg Depth 10 cm Height 2.85 cm Width 20 cm Technical Details Audio Support Yes -
Description Downloads Datasheet Download
