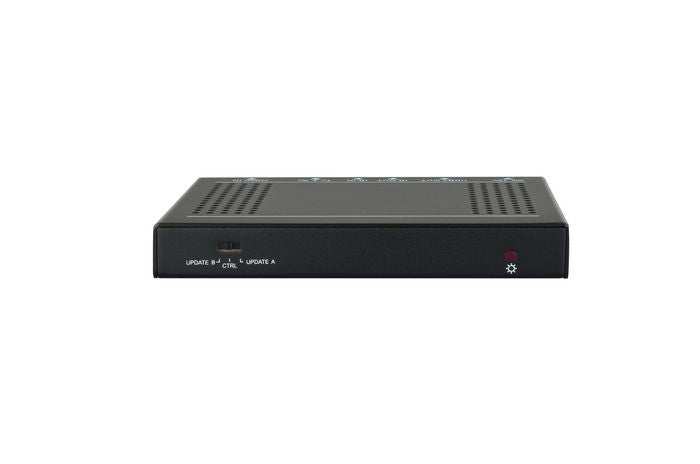

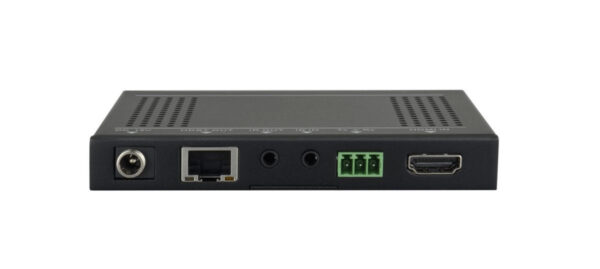

Vivolink HDBaseT Extender Kit HDMI 2.0 18Gbps – VLHDMIEXTHDB2.0

• Description
• Specifications
• Downloads

• Vivolink HDBaseT Extender kit HDMI 2.0 18Gbps – VLHDMIEXTHDB2.0


  HDBaseT Extender kit HDMI 2.0 18Gbps
  Transmitter/Receiver HDMI 2.0 18Gbps,Bi-directional IR, RS232 and CEC, one PSU, HDMI 1.4 and HDCP2.2 compliant

  Typical installation:
  It can be installed anywhere need to extend AV/IR/RS232 control signals
  E.g. Meeting room or Residential or digital signage etc.

  Function:
  HDMI 2.0 extender
  Point to point,Tx to Rx for 70m@1080P,40m 4K@60Hz 4:4:4

  Key features:
  Full HDMI 2.0 compliant
  18 Gbps bandwidth
  Slim 4K HDBT extender.
  Two way POC
  Support Bi-directional IR and RS232
  HDCP2.2 compliant

• Category	Detail
  Features
  Bandwidth	18 Gbit/s
  Cable types supported	Cat5e/Cat6
  CEC pass-through	Yes
  HDBaseT certified	Yes
  HDCP & EDID bypass	Yes
  HDCP pass-through	Yes
  IR pass-through	Yes
  LED indicators	Yes
  Maximum resolution	4096×2160 Pixels
  Maximum transfer distance	70 m
  Product colour	Black
  Remote control type	IR + RS232
  RS-232 pass-through	Yes
  Supported video modes	3840p
  Type	AV transmitter & receiver
  Wall mountable	Yes
  Legal Information
  EU ECCN Code	N/A
  US ECCN Code	5A992
  Operational conditions
  Operating temperature (T-T)	-10 – 50 °C
  Package dimensions (verified)
  Depth Verified	16.1 cm
  Gross Weight Verified	0.662 kg
  Height Verified	12.6 cm
  Width Verified	18.4 cm
  Packaging content
  AC adapter included	Yes
  Included power plug types	EU/GB
  IR blaster included	No
  IR receiver included	No
  Mounting brackets included	Yes
  Ports & interfaces
  3.5 mm (1/8-inch) in	Yes
  3.5 mm (1/8-inch) out	Yes
  Connectivity technology	Wired
  DC-in jack	Yes
  HDMI in	1
  HDMI version	2.0
  Number of HDMI outputs	1
  Remote (IR) input	1
  Remote (IR) output	1
  RJ-45 input ports	1
  RJ-45 output ports	1
  RS-232 input ports	1
  RS-232 output ports	1
  Serial interface type	RS-232
  Serial ports quantity	1
  Video in	1
  Video out	1
  Power
  AC input frequency	50 / 60 Hz
  AC input voltage	100 – 240 V
  External power adapter	Yes
  Power consumption (receiver) (max)	14 Watt
  Power consumption (transmitter) (max)	14 Watt
  Power over Ethernet (PoE)	Yes
  Product dimensions
  Net Weight (Product, kg)	0.5 kg
  Product Depth	16.1 cm
  Product Height	12.6 cm
  Product Width	18.4 cm
  Technical details
  Audio support	Yes
  Vendor information
  Brand Name	Vivolink
  Warranty	3 Year(s)

• VLHDMIEXTHDB2.0 : Product Sheet
