• Vivolink Control Panel 8 Button – VLCP8B


  Control Panel 8 Button
  Vivolink control panel can be used to control all products supporting RS232 or RS485 protocol.
  With the supplied IR blaster it is also possible to control products with IR commands.
  The built in 12v relay can be used to control products like a projector sceen or curtains.

  Typical installations:
  Ideal for meeting rooms
  Can control switching, projectors, curtains, canvas, etc.

  8 function keys with indication lights

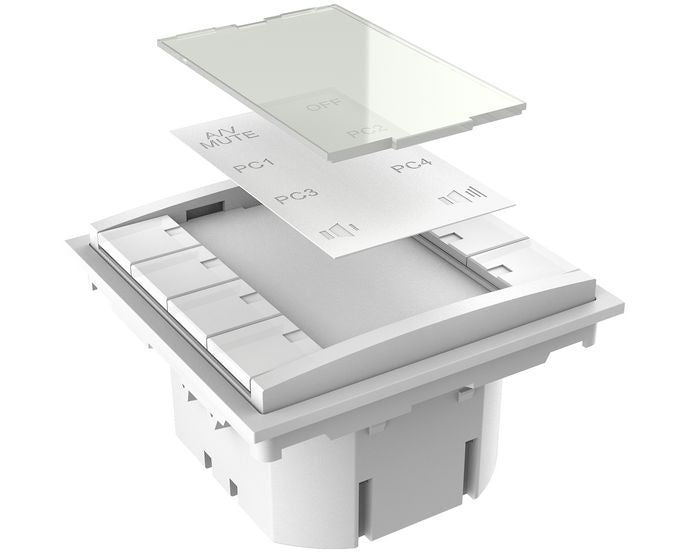

  Customized label print

  Any button can be configured to execute multiple actions through the serial, IR control and Relay ports

  Start the projector (RS232)

  Screen down (Relay)

  Switch on input 1(RS232 parallel connection)

  Mounts in a single size European junction box with 60 mm mounting centers

• Category	Specification
  Design
  Product colour	White
  Legal Information
  EU ECCN Code	N/A
  UNSPSC Code	39122216
  US ECCN Code	EAR99
  Package dimensions (verified)
  Depth Verified	17.2 cm
  Gross Weight Verified	1.012 kg
  Height Verified	9.9 cm
  Width Verified	27.1 cm
  Power
  Input voltage	12 V
  Power source type	DC
  Product dimensions
  Net Weight (Product, kg)	1.01 kg
  Product Depth	17.2 cm
  Product Height	9.9 cm
  Product Width	27.1 cm
  Technical details

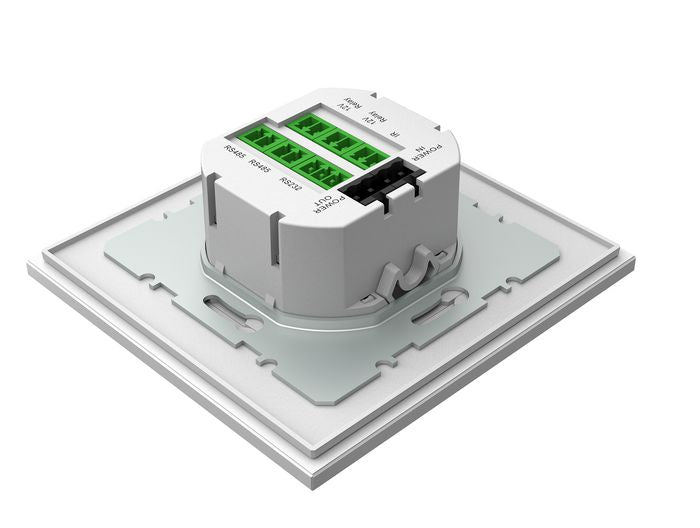

  Connector(s)	DC in, DC out, RS-232, RS-485, IR Out, Relay 12V output
  Illuminable	Yes
  Number of buttons	8 buttons
  Vendor information
  Brand Name	Vivolink
  Warranty	3 Year(s)
