Vivolink 4K@60Hz USB-C Wireless Extender – VLUSBCEXT-WIRELESS

• Description
• Specifications
• Downloads

• Vivolink 4K@60Hz USB-C Wireless Extender – VLUSBCEXT-WIRELESS

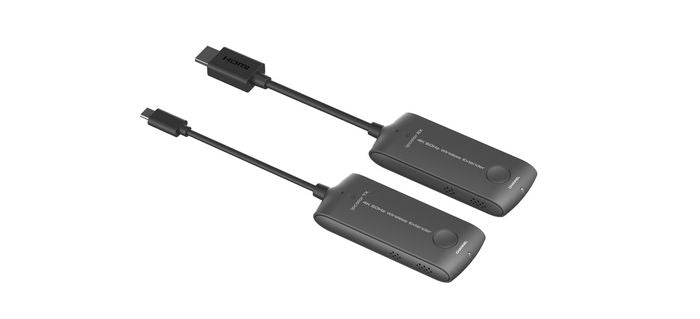

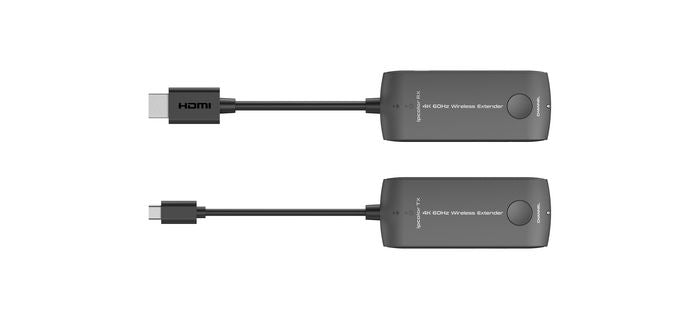

  This is a 4K@60Hz wireless extender, including a transmitter and a receiver.
  USB-C transmitter is powered from USB-C port. HDMI receiver need power from an USB-A port on display/projector
  Power cable (USB-A to Micro USB) is included in the package.

  Supports up to 3840×2160@60Hz backward compatible

  Maximum transmission distance 20m (line of sight)

  Operate on 5G wireless frequency band and is WPA2 encrypted

  Support firmware upgrade via Micro USB port

  Portable design, plug and play

• Category	Specification
  Features
  HDCP & EDID bypass	Yes
  HDCP pass-through	Yes
  HDCP version	2.2
  LED indicators	Yes
  Maximum resolution	3840×2160 Pixels
  Maximum transfer distance	20 m
  Product colour	Black
  Supported video modes	3840p
  Type	Wireless extender
  Legal Information
  EU ECCN Code	N/A
  US ECCN Code	5A992
  Operational conditions
  Operating relative humidity (H-H)	10 – 90 %
  Operating temperature (T-T)	0 – 60 °C
  Package dimensions
  Depth (package, cm)	11.9 cm
  Gross Weight (Package, kg)	0.32 kg
  Height (package, cm)	8 cm
  Width (package, cm)	15.3 cm
  Ports & interfaces
  Connectivity technology	Wireless
  DC-in jack	Yes
  HDMI in	1
  HDMI version	2.0
  Number of HDMI outputs	1
  Power
  Operating voltage (receiver)	5 V
  Operating voltage (transmitter)	5 V
  Power consumption (receiver) (max)	3 Watt
  Power consumption (transmitter) (max)	5 Watt
  Product dimensions
  Net Weight (Product, kg)	0.318 kg
  Product Depth	9.4 cm
  Product Height	2.37 cm
  Product Width	9.68 cm
  Technical details
  Audio support	Yes
  Vendor information
  Brand Name	Vivolink
  Warranty	3 Year(s)

• VLUSBCEXT-WIRELESS : Product Sheet
