• Vivolink 40m Cat 6a F/FTP Cable, 4-Pair, 23 AWG, LSZH, HDBaseT | PROCAT40

  CAT cable for HDBaseT RJ45 /FTP CAT6A 4PR 23AWG installation. Low smoke halogeen free jacket

  Vivolink network cables are designed specifically for HDBaseT transmission. This means that you will get a robust and stable installation.

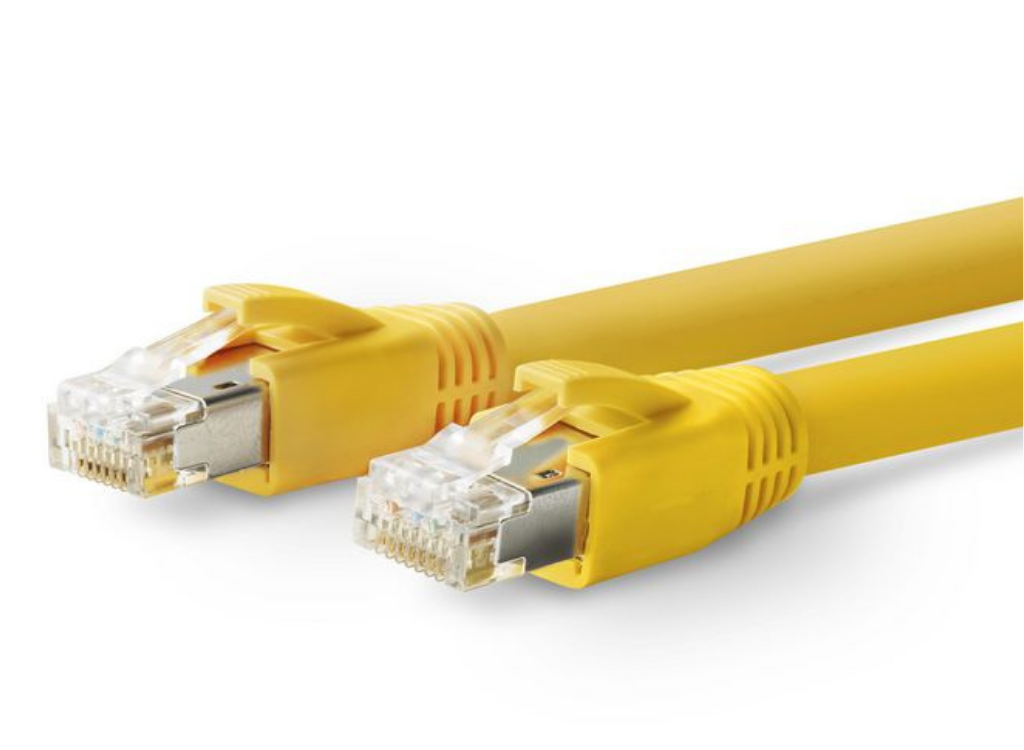

  Cables are assembled with RJ45 connectors in both ends, this will ensures perfect termination in connector and easy installation.

  Solid core wires in pure copper 23AWG ensures rich power perfor mance even on long lengths.

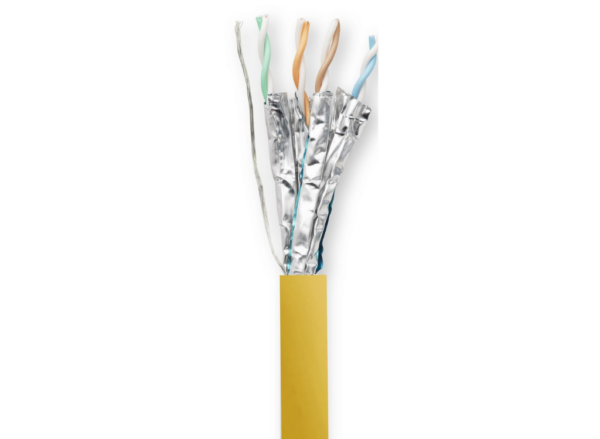

  The individual and outer shielding in aluminum foil protects signal from any disturbance and optimal signal performance.

  The cable jacket is produced in LSZH low smoke, zero halogen material so it can be used for fixed installations in buildings.

  – F/FTP CAT6A 4PR 23AWG TESTED TO 550MHz
  – Outer jacket: LSZH 0D ¯8mm +/- 0.2mm
  – Shielding: Aluminium foil (double shielding)
  – Inner conductor: Pure copper diameter 0.573mm
  – Drain wire: Pure copper 0.16mm

• Feature	Specification
  AWG Wire Size	23
  Brand Compatibility	Any brand
  Cable Length	40 m
  Cable Shielding	F/FTP (FFTP)
  Cable Standard	Cat6a
  Cabling Technology	10/100Base-T(X)
  Certification	HDBaseT
  Conductor Material	Copper
  Conductor Type	Solid
  Connector 1	RJ45
  Connector 1 Gender	Male
  Connector 2	RJ45
  Connector 2 Gender	Male
  Connector Contacts Plating	Gold
  Connector Shield Material	Aluminium
  Connector Shielding	Yes
  Ethernet Interface Type	Fast Ethernet
  Frequency	550 MHz
  Halogen-Free	Yes
  Jacket Material	Low Smoke Zero Halogen (LSZH)
  RoHS Compliance	Yes
  Twisted Pair Coupling Type	4×2
  EU ECCN Code	N/A
  UNSPSC Code (Icecat)	26121609
  US ECCN Code	EAR99
  Package Depth	28 cm
  Gross Weight (Package)	2.73 kg
  Package Height	10 cm
  Package Width	29.5 cm
  Quantity per Pack	1 pc(s)
  Net Weight (Product)	2.35 kg
  Doesn’t Contain	Halogen
  Brand Name	Vivolink
  Warranty	12 Year(s)
  Outer Diameter	8 mm
