Vivolink 20m Pro HDMI Cable Metal Head | PROHDMIHDM20
- Description
- Specifications
- Downloads
-

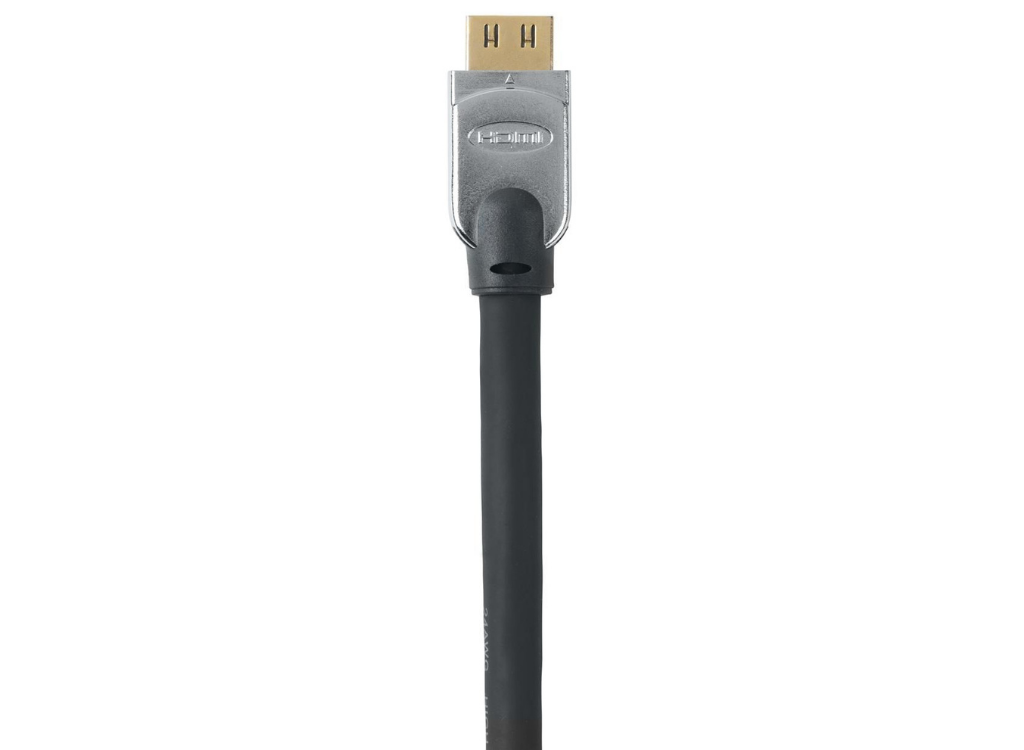

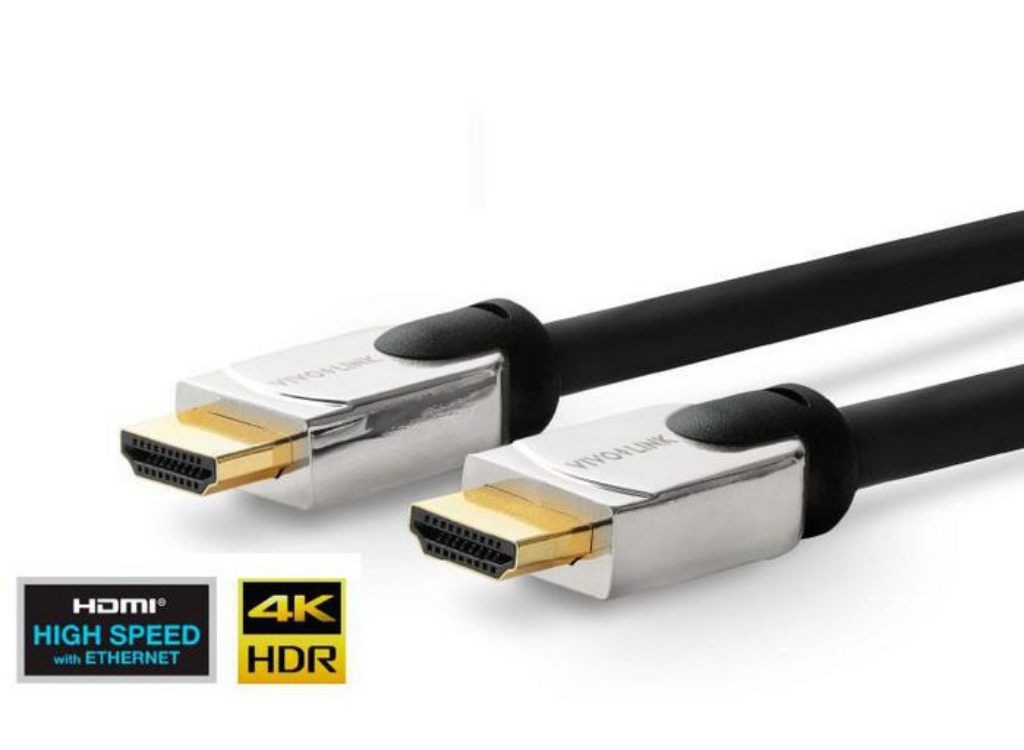

Vivolink 20m Pro HDMI Cable Metal Head | PROHDMIHDM20
High Performance and High Speed HDMI 10.2Gbit Cable with Ethernet and Metal Housing.
Supports Resolutions up to 4K@60Hz with HDCP 2.2, CEC and ARC
Ultra flexible and with Lock Spike
Note: This cable is with HDMI lock. This is to ensures a stable and secure connection between AV equipment (e.g. AV splitters, switches or other AV distribution equipment) in fixed installations. Please add the PROHDMIHDMFM2 cable when using this cable connection with a laptop or other portable devices. This cable protects the interface in your portable device so it will not get damaged when plugging in and out several times.
-
Feature Specification 3D Support Yes Audio Return Channel (ARC) Yes AWG Wire Size 24 Cable Jacket Material Polyvinyl chloride (PVC) Cable Length 20 m Cable Material Copper Colour Depth 16 bit Connector 1 HDMI Type A (Standard) Connector 1 Form Factor Straight Connector 1 Gender Male Connector 2 HDMI Type A (Standard) Connector 2 Form Factor Straight Connector 2 Gender Male Connector Contacts Plating Gold Data Transfer Rate 10.2 Gbit/s Dolby Technologies DTS-HD Master Audio HDCP Yes HDCP Version 2.2 HDMI Ethernet Channel Yes HDMI Version 2.0 High Dynamic Range (HDR) Yes HDR Technology High Dynamic Range 10 (HDR10) Magnetically Shielded Yes Maximum Refresh Rate 60 Hz Maximum Resolution 4096 x 2160 Pixels Number of Shielding Layers 3 Plug and Play Yes Product Colour Black Pull-off Force 2 kg Quantity per Pack 1 pc(s) RoHS Compliance Yes Supported Graphics Resolutions 4096 x 2160 Supported Video Modes 2160p EU ECCN Code N/A UNSPSC Code (Icecat) 43202222 US ECCN Code EAR99 Operating Temperature (T-T) -20 – 60 °C Package Dimensions (Verified) Depth: 23.5 cm, Height: 9.2 cm, Width: 26.1 cm Gross Weight (Package) 1.976 kg Net Weight (Product) 1.876 kg Brand Name Vivolink Warranty 99 Year(s) Cable Diameter 9.5 mm - Downloads
