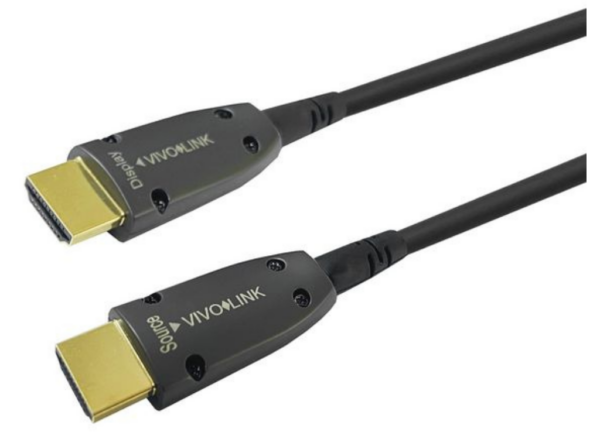

• Vivolink 20m Armoured Optic HDMI 4K Cable | PROHDMIOP20AM

  HDMI 2.0 Support 4K/60Hz 4:4:4 18Gbps, HDR 12bit, HDCP2.2, 3D & ARC. Slim size of 4.0mm.
  Typical installation:

  Places where high resolution is required on long distance.

  Tensile Strength (Pull resistance): 20 kg.

  Maximum pressure load on cable: 305 kg.

• Category	Details
  Features
  3D Support	Yes
  Cable Jacket Material	Low smoke zero halogen (LSZH)
  Cable Length	20 m
  Cable Material	Fiber optic
  Colour Depth	16 bit
  Connector 1	HDMI
  Connector 1 Form Factor	Straight
  Connector 1 Gender	Male
  Connector 2	HDMI
  Connector 2 Form Factor	Straight
  Connector 2 Gender	Male
  Connector Contacts Plating	Gold
  Data Transfer Rate	18 Gbit/s
  Dolby Technologies	DTS-HD Master Audio
  HDCP	Yes
  HDCP Version	2.2
  HDMI Ethernet Channel	Yes
  HDMI Version	2.0
  High Dynamic Range (HDR) Supported	Yes
  HDR Technology	HDR10
  Maximum Refresh Rate	60 Hz
  Maximum Resolution	4096 x 2160 Pixels
  Plug and Play	Yes
  Product Colour	Black
  Quantity per Pack	1 pc(s)
  RoHS Compliance	Yes
  Supported Graphics Resolutions	4096 x 2160
  Supported Video Modes	2160p
  Legal Information
  EU ECCN Code	N/A
  UNSPSC Code	43202222
  US ECCN Code	EAR99
  Operational Conditions
  Operating Temperature	-20 – 60 °C
  Package Dimensions
  Depth (Package)	19.3 cm
  Gross Weight (Package)	0.39 kg
  Height (Package)	4.5 cm
  Width (Package)	20.1 cm
  Product Dimensions
  Net Weight (Product)	0.29 kg
  Product Depth	19.3 cm
  Product Height	4.5 cm
  Product Width	20.1 cm
  Vendor Information
  Brand Name	Vivolink
  Warranty
  Warranty Period	12 Year(s)
  Weight & Dimensions
  Cable Diameter	5 mm
