• Vivolink 1×4 4K@60Hz HDMI Splitter

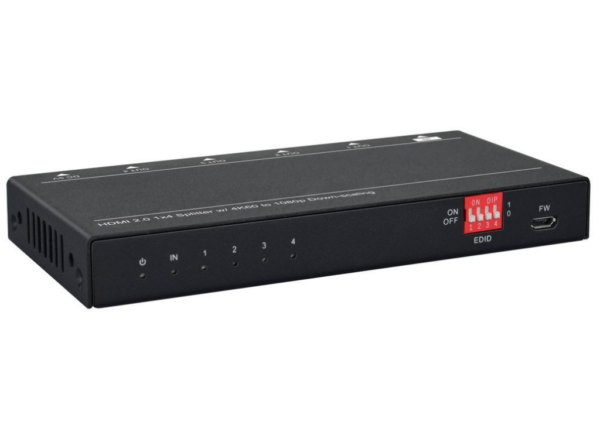

  The VLHDMISP1X4 is a high-performance 1×4 HDMI splitter designed to distribute a single HDMI input to four outputs simultaneously. It supports video resolutions up to 4K@60Hz with 4:4:4 chroma subsampling, HDR10, and Dolby Vision, ensuring exceptional video quality.

  Key features include advanced EDID management with multiple built-in settings selectable via a 4-pin DIP switch, video resolution down-scaling allowing 4K input to be automatically degraded to 1080p output for compatibility with 1080p displays, and support for CEC pass-through. The splitter also provides LEDs to indicate the current operating status and supports convenient firmware upgrades through a Micro-USB port.

  Typical Applications:
  Perfect for distributing HDMI signals in retail stores or at trade shows.

• Category	Details
  Features
  3D	Yes
  Easy to Install	Yes
  HD Type	4K Ultra HD
  HDCP	Yes
  Housing Material	Metal
  LED Indicators	Yes
  Maximum Refresh Rate	60 Hz
  Maximum Resolution	3840 x 2160 Pixels
  Number of Displays Supported	4
  Plug and Play	Yes
  Power LED	Yes
  Product Colour	Black
  Supported Video Modes	3840p
  Legal Information
  UNSPSC Code	52161556
  Operational Conditions
  Operating Temperature	0 – 50 °C
  Package Dimensions
  Depth	12.1 cm
  Gross Weight	0.464 kg
  Height	11.4 cm
  Width	18 cm
  Packaging Content
  AC Adapter Included	Yes
  User Guide	Yes
  Packaging Data
  Quantity per Box	1 pc(s)
  Ports & Interfaces
  DC-in Jack	Yes
  Ethernet LAN	No
  HDMI Version	1.4/2.0
  Video Out	4x HDMI
  Video Port Type	HDMI
  Video Ports Quantity	4
  Power
  Input Voltage	110v – 230v
  Power Consumption	2.5 Watt
  Product Dimensions
  Net Weight	0.36 kg
  Depth	7.04 cm
  Height	1.76 cm
  Width	14.2 cm
  Technical Details
  Cascadable	Yes
  Connector Type	HDMI
  Maximum Cable Length	100 m
