Vivolink 1×2 4K@60Hz HDMI Splitter | VLHDMISP1X2

• Description
• Specifications
• Downloads

• Vivolink 1×2 4K@60Hz HDMI Splitter

  HDMI switcher 4×1 4K@60Hz with RS232 control, ARC and analogue audio de-embedder function
  Vivolink HDMI switcher 4×1 4K@60Hz ARC

  Ultra slim 12mm, with autoswitching

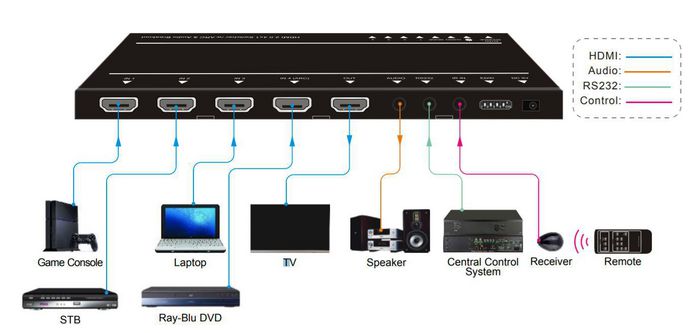

  Typical installations:
  Meeting rooms with four cables at the desk and one monitor
  Fully compliant with HDMI 2.0

  Upgrade FW Version: V1.0.2 New features:
  RS232 feedback on source input
  Autoswitch based on active videosignal
  Improovement of HDCP compatability

  Advanced EDID management: multiple preset and user defined allowed..

  Controllable via RS232 and IR.

  Supports CEC.

  Seven LEDs to indicate the current operating status and to assist troubleshooting an installation.

  RS232 control and audio line out to active speakers.

  Firmware upgrade by Micro-USB port.

  HDMI switcher with 4 HDMI inputs and one HDMI out

  Supports video resolution up to 4Kx2K@60Hz 4:4:4 HDR

  18Gbps high bandwidth

  Fully compliant with the HDMI 2.0 and HDCP2.2 specifications

  Supports audio return channel (ARC).

  Advanced EDID management: multiple preset and user defined allowed.

  Controllable via RS232 and IR

  Supports CEC

  Seven LEDs to indicate the current operating status and to assist troubleshooting an installation

  RS232 control and audio line out to active speakers

• Category	Specification
  Features
  Audio formats supported	PCM
  Audio output channels	2.0 channels
  Bandwidth	18 Gbit/s
  Consumer Electronics Control (CEC) support	Yes
  Extended display identification data (EDID)	Yes
  HD type	4K Ultra HD
  HDCP	Yes
  HDCP version	2.2
  LED indicators	Yes
  Maximum frame rate	60 fps
  Maximum resolution	3840 x 2160 Pixels
  Plug and Play	Yes
  Product colour	Black
  Remote control type	IR + RS232
  Legal Information
  EU ECCN Code	N/A
  UNSPSC Code	52161540
  US ECCN Code	EAR99
  Operational conditions
  Operating temperature (T-T)	-10 – 55 °C
  Package dimensions (verified)
  Depth Verified	13.4 cm
  Gross Weight Verified	0.564 kg
  Height Verified	12.4 cm
  Width Verified	23.9 cm
  Packaging content
  AC adapter included	Yes
  Mounting brackets included	Yes
  Remote control included	Yes
  Ports & interfaces
  3.5 mm (1/8-inch) out	Yes
  Audio (L/R) out	1
  HDMI in	4
  HDMI ports quantity	5
  HDMI version	2.0
  Number of HDMI outputs	1
  RS-232 ports	1
  S/PDIF out port	No
  Video port type	HDMI
  Power
  AC input voltage	100 – 240 V
  Product dimensions
  Net Weight (Product, kg)	0.18 kg
  Product Depth	8.1 cm
  Product Height	1.2 cm
  Product Width	19.4 cm
  Technical details
  Audio support	Yes
  Vendor information
  Brand Name	Vivolink
  Warranty	3 Year(s)
  Weight & dimensions
  Dimensions (WxDxH)	194mm x 81mm x 12mm

• VLHDMISP1X2 : Product Sheet
