Vivolink 100m USB3.2 5Gbit/s 4-Port Extender Kit – VLUSB3EXT100

• Description
• Specifications
• Downloads

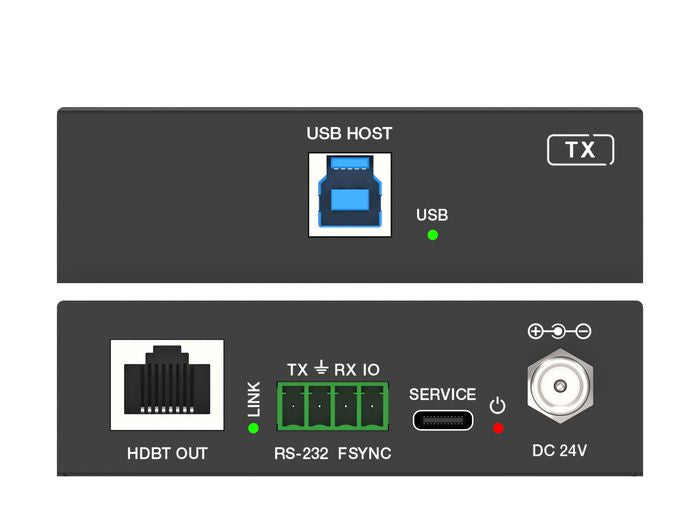

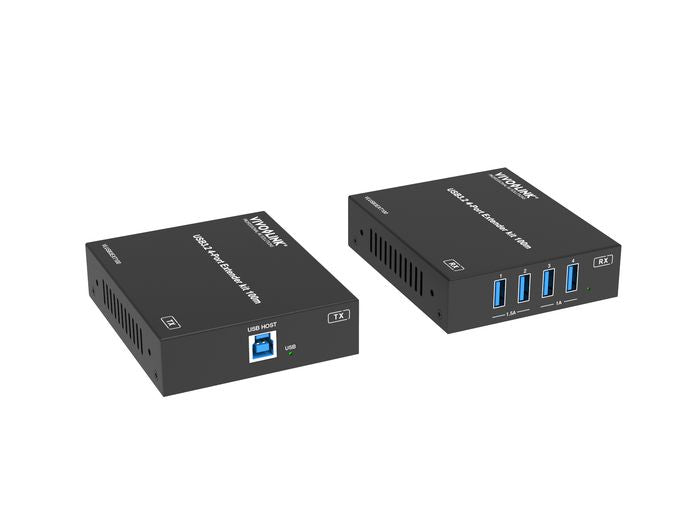

• Vivolink 100m USB3.2 5Gbit/s 4-Port Extender Kit – VLUSB3EXT100


  USB3.2 5Gbit/s 4-Port Extender kit 100m
  The VLUSB3EXT100 extender kit is a transmitter (Tx) and a receiver (Rx) that can be used to connect up to 4 USB devices like: camera, speaker, touch screen or other USB3.2 Gen1 device and signal is transfered via CAT6A network cable and connect to computer with USB3.0 A male connector to computer. USB-B to USB-A cable is not included in the package and should be purchased seperately.

  Typical installation:
  Meeting rooms

  It has four USB ports that can extend USB 3.2 signal up to 100 meters over a Cat5e/6/7 cable.

  The transmitter is powered by the computer and the power supply is at the remote receiver that’s helps provide sufficient power to any type of USB device, such as flash drives, keyboards, mouses, cameras, or printers, etc.

  Extender is build in a durable metal housing and the compact size enables space-saving installation.

• Category	Detail
  Features
  Cable types supported	Cat6a/Cat7
  Connectivity technology	Wired
  Easy to install	Yes
  LED indicators	Power
  Material	Metal
  Maximum transfer distance	100 m
  Plug and Play	Yes
  Product colour	Black
  Type	USB3.2
  Legal Information
  EU ECCN Code	N/A
  UNSPSC Code	43211601
  US ECCN Code	5A992
  Package dimensions
  Gross Weight (Package, kg)	0.438 kg
  Packaging content
  AC adapter included	Yes
  Manual	Yes
  Ports & interfaces
  RJ-45 ports quantity	1
  Power
  AC adapter output current	2 A
  AC adapter output voltage	240 V
  AC input frequency	50 Hz
  Product dimensions
  Net Weight (Product, kg)	0.227 kg
  Receiver
  RJ-45 ports quantity (receiver)	1
  Transmitter
  RJ-45 ports quantity (transmitter)	1
  Vendor information
  Brand Name	Vivolink
  Warranty	3 Year(s)

• VLUSB3EXT100 : Product Sheet
