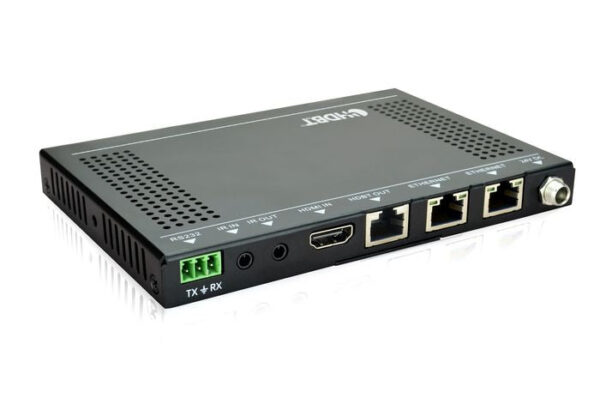

• Vivolink 100m HDBaseT Extender Kit – VLHDMIEXT422


  HDBaseT Extender kit 100m
  Transmitter/Receiver HDMI Two way PoC Bi-directional IR, RS232 and CEC, one PSU and HDCP2.2 compliant

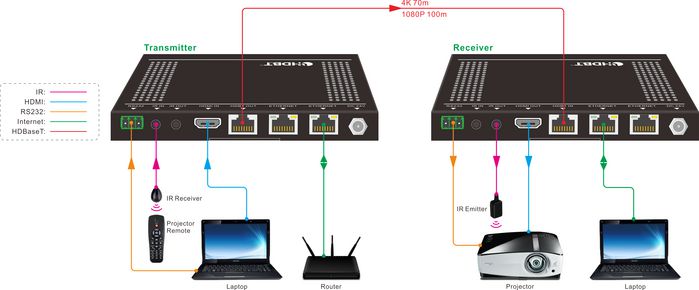

  Typical installation:
  It can be installed anywhere need to extend AV/IR/RS232 control signals
  E.g. Meeting room or Residential or digital signage etc.

  Function:
  HDMI extender
  Point to point Tx to Rx for 100m@1080P,70m@4K

  Ultra-thin design

  Support up to 4K@60Hz 4:2:0 video signal transmission

  HDCP2.2 compliant.

  Maximum transmission distance is up to 70m for 4Kx2K

  Maximum transmission distance is up to 100m for 1080p

  Maximum extension distance is up to 100m for Ethernet

  Two way PoE

  High bandwidth:10.2Gbps

  Support IR/RS232 passthrough

  Use HDBaseT technology

• Category	Detail
  Features
  Bandwidth	10.2 Gbit/s
  Cable types supported	Cat5e/Cat6
  CEC pass-through	Yes
  HDBaseT certified	Yes
  HDCP & EDID bypass	Yes
  HDCP pass-through	Yes
  IR pass-through	Yes
  LED indicators	Yes
  Maximum resolution	4096×2160 Pixels
  Maximum transfer distance	100 m
  Product colour	Black
  Remote control type	IR + RS232
  RS-232 pass-through	Yes
  Supported video modes	3840p
  Type	AV transmitter & receiver
  Wall mountable	Yes
  Legal Information
  EU ECCN Code	N/A
  US ECCN Code	5A992
  Operational conditions
  Operating temperature (T-T)	0 – 50 °C
  Package dimensions (verified)
  Depth Verified	15.9 cm
  Gross Weight Verified	0.938 kg
  Height Verified	15.2 cm
  Width Verified	18.4 cm
  Packaging content
  AC adapter included	Yes
  Included power plug types	EU/GB
  IR blaster included	No
  IR receiver included	No
  Mounting brackets included	Yes
  Ports & interfaces
  3.5 mm (1/8-inch) in	Yes
  3.5 mm (1/8-inch) out	Yes
  Connectivity technology	Wired
  DC-in jack	Yes
  Ethernet LAN	Yes
  HDMI in	1
  HDMI version	2.0
  Number of HDMI outputs	1
  Remote (IR) input	1
  Remote (IR) output	1
  RJ-45 input ports	1
  RJ-45 output ports	1
  RS-232 input ports	1
  RS-232 output ports	1
  Serial interface type	RS-232
  Serial ports quantity	1
  Video in	1
  Video out	1
  Power
  AC input frequency	50 / 60 Hz
  AC input voltage	100 – 240 V
  External power adapter	Yes
  Power consumption (receiver) (max)	10 Watt
  Power consumption (transmitter) (max)	10 Watt
  Power over Ethernet (PoE)	Yes
  Product dimensions
  Net Weight (Product, kg)	0.48 kg
  Product Depth	15.9 cm
  Product Height	15.2 cm
  Product Width	18.4 cm
  Technical details
  Audio support	Yes
  Vendor information
  Brand Name	Vivolink
  Warranty	3 Year(s)
