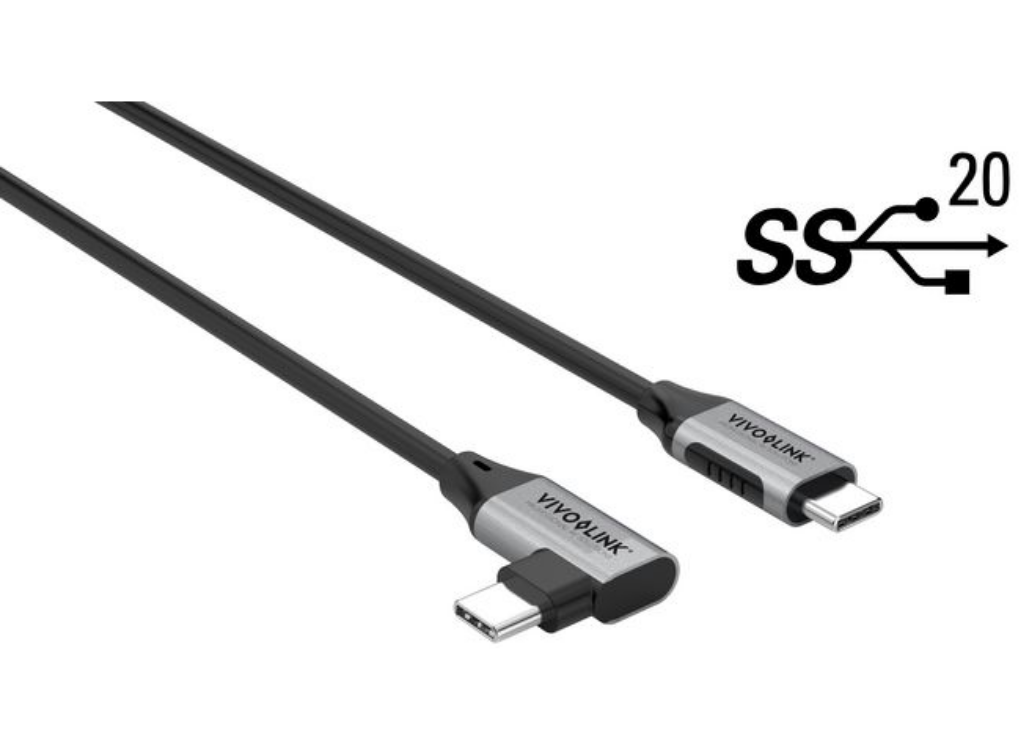

Vivolink 1.2m USB Type-C 3.2 Gen 2, 20Gbps Angled Cable | PROUSBCMM1.2A

• Description
• Specifications
• Downloads

• Vivolink 1.2m USB Type-C 3.2 Gen 2, 20Gbps Angled Cable | PROUSBCMM1.2A

  Vivolink high performance USB-C Cables for meeting rooms. Angled connector in one end as perfect fit to desk USB-C outlet.

  Gen2 – Supports 20 Gbps data 5~20V/5A + E-Mark 100W power

  Support following formats: DisplayLink, DP Alt mode, DisplayPort

• Feature	Specification
  AWG Wire Size	24
  Cable Jacket Material	Polyvinyl chloride (PVC)
  Cable Length	1.2 m
  Conductor Material	Copper
  Connector 1	USB C
  Connector 1 Form Factor	Angled
  Connector 1 Gender	Male
  Connector 2	USB C
  Connector 2 Form Factor	Straight
  Connector 2 Gender	Male
  Connector Contacts Plating	Gold
  Maximum Data Transfer Rate	20000 Mbit/s
  Plug and Play	Yes
  Product Colour	Black
  RoHS Compliance	Yes
  USB Version	USB 3.2 Gen 2 (3.1 Gen 2)
  EU ECCN Code	N/A
  UNSPSC Code (Icecat)	43211617
  US ECCN Code	EAR99
  Gross Weight (Package)	0.06 kg
  Packaging Data (Quantity)	1 pc(s)
  Power Output Current (Max)	5 A
  Output Voltage	5 – 20 V
  Product Net Weight	0.05 kg
  Warranty	2 Year(s)
  Cable Diameter	6 mm
  Packaging Dimensions	Depth: 9.9 cm, Height: 2.8 cm, Width: 11.8 cm
