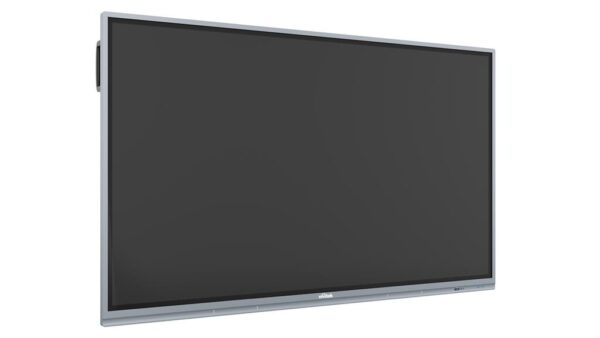

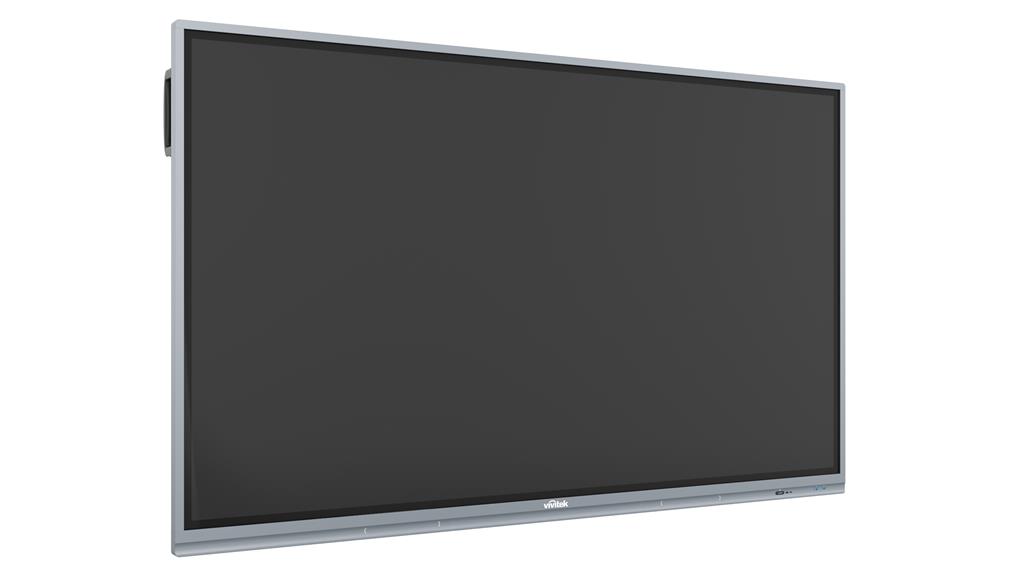

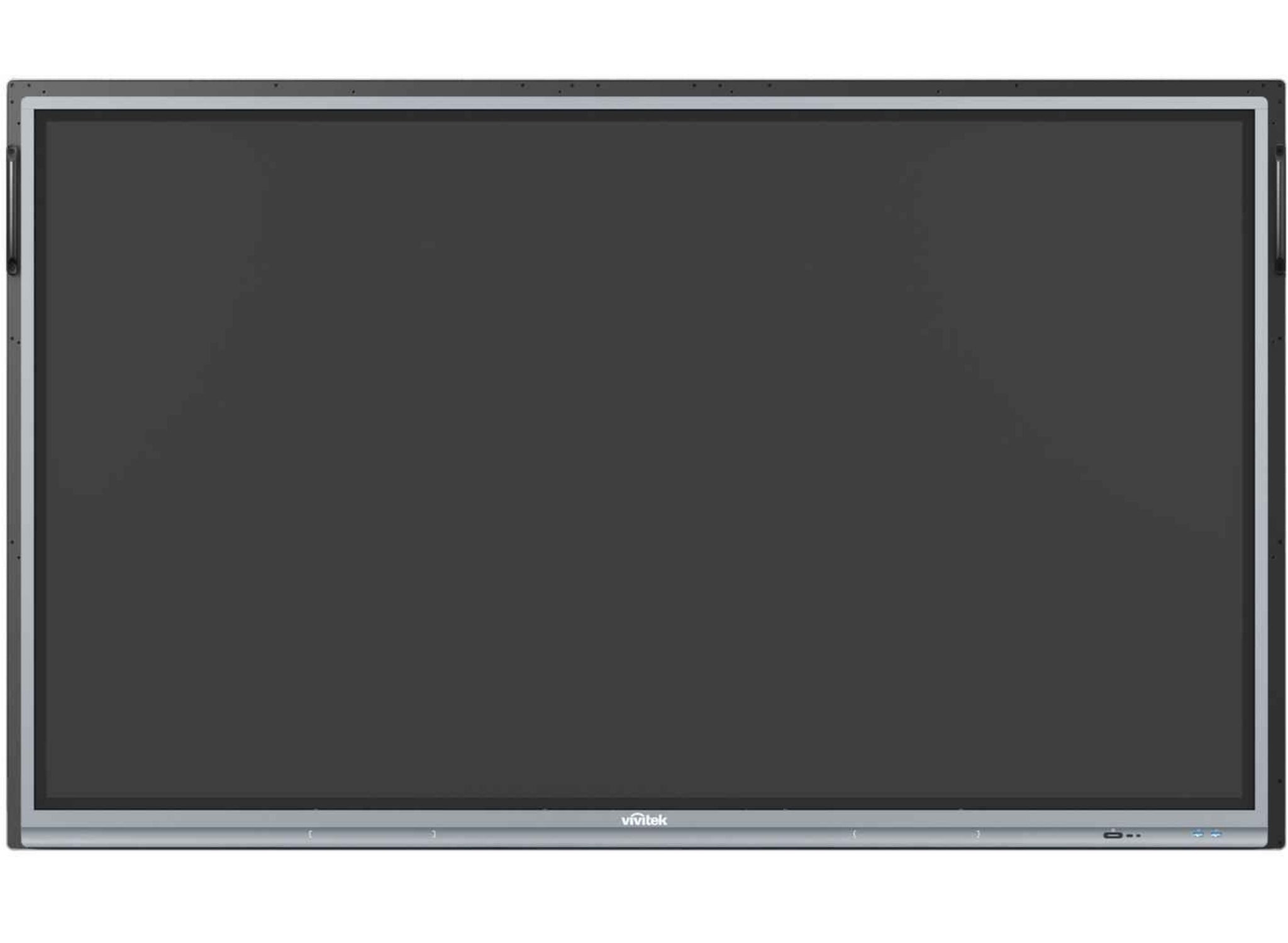

Vivitek NovoTouch EK865i 86″ 4K Android Interactive Display

Vivitek NovoTouch EK865i 86″ 4K Android Interactive Display

• Description
• Specifications
• Downloads

• NovoTouch EK
  4K UHD All-in-One Touch Panel takes business meetings & education sessions to a new level of collaboration.
  The NovoTouch EK series of interactive 4K displays offer the most complete solution for engaging hybrid meetings and classes.
  The displays feature NovoConnect Wireless Collaboration, Video Conferencing, BYOM (optional) and NovoDS Digital Signage functionalities.

  4K resolution for sharing single video content, while in collaboration mode, each split screen is shown in 1080p Full HD.

  In-Plane Switching (IPS-ADS) panel technology offers outstanding details and stunning visuals with Hyper-Viewing Angle.

  The NovoTouch has an Optically Bonded screen that offers better readability, visibility and a larger viewing angle than non-bonded screens.

  Infrared Touch (IR) to ensure flawless touch annotation and smooth gesture recognition.

  Anti-glare and durable surface protects against scratches or screen damage.

  USB Type C port supports high speed transfer of files while simultaneously transmitting video, audio and power from a single cable

  Wireless content sharing from any laptop, tablet or smartphone to the central screen (BYOD)

  Supports connections from 64 participants.
  Split screen allows for 4 participants to present simultaneously.

  The NT Minutes app allows to record any actions taken on the NovoTouch screen.

  NT LiveScreen duplicates the NovoTouch screen across the network to multiple displays enabled with NT LiveReceiver in different rooms. This allows a large group of people to be split across breakout rooms and view the same content.

  Bring Your Own Meeting (BYOM) as optional upgrade to enable the meeting moderator to control meeting peripherals such as Cameras or audio devices directly from their laptop. The BYOM driver is available for Windows and MacOS.

  Picture-in-Picture (PiP) is perfect for multi-taskers as it allows to keep an eye on a floating window while continuing to work on another App.

  Interactive whiteboard app offers mind maps, sticky notes and geometric tools.

  Digital Signage

  The embedded NovoDS digital signage will transform NovoTouch into a digital information board.

  Create and manage digital signage in 3 simple steps Through NovoDS Studio.

  Optional NovoDS Cloud based content creation and device management with role based access and interactive widgets.

  displays offer the most complete solution for engaging hybrid meetings and classes. The displays feature NovoConnect Wireless Collaboration, Video Conferencing, BYOM (optional) and NovoDS Digital Signage functionalities. NovoTouch is available in 65”, 75” and 86” display sizes, all with UHD 4K resolution. NovoTouch is designed to take business meetings and education sessions to a new level of collaboration and interaction

  NovoConnect Wireless Collaboration
  The NovoTouch EK series has built-in NovoConnect wireless presentation and collaboration tools for presentations and interactive engagement in the office or classroom. Supports connections from 64 participants and up to 4 can share their screen simultaneously.

  NT LiveScreen
  Duplicate the NovoTouch screen (with NT LiveScreen*) across the network to multiple displays (with NT LiveReceiver) in different rooms. This allows a large group of people to be split across breakout rooms and still share the same content. NT Minutes The NT Minutes app allows you to record any actions taken on the NovoTouch screen.

  Bring Your Own Meeting (BYOM)
  The BYOM driver is an optional upgrade to the NovoTouch. It enables the meeting moderator to control mainstream meeting peripherals such as cameras or audio devices directly from their laptop. Use with any video conferencing software such as Microsoft Teams, Zoom, Skype, Google meet or Webex for hybrid meeting and distance learning. The BYOM driver is available for Windows and MacOS.

  NovoDS Digital Signage
  The built-in digital signage solution is easy to set up and manage via the optional NovoDS Cloud service or included NovoDS Studio software. The user can toggle between the Wireless Collaboration and Digital Signage function to maximise the use of the display at any time.

  4K UHD display for perfect detail
  When sharing single video content, the display supports 4K resolution, while in collaboration mode, each split screen is shown in 1080p Full HD resolution.

  Quality picture for optimal viewing and annotations
  Backlit D-LED (IPS display) technology offers brighter pictures, flawless colours, richer textures, and extra wide viewing angles (178˚/ 178˚) with an incredibly sharp and crisp images. Designed with Optical Bonding for better annotation and readability – high accuracy and fast response time.

• Feature	Specifications
  Display
  Panel Size	86”
  Type/Technology	Backlit D-LED (IPS-ADS)
  Brightness	500 cd/m²
  Contrast Ratio	5000:1
  Native Resolution	4K Ultra-HD (3840 x 2160)
  Viewing Angle (H/V)	178° / 178°
  Aspect Ratio	16:9
  Refresh Rate (Hz)	60 Hz
  Estimated Life Time	50,000 hours
  Display Color (Bit)	1.07 Billion
  Installation Orientation	Landscape
  Daily Operation (Hours/Days)	16/7
  Touch
  Technology	Infrared Touch
  Touch Points	Annotation 10 Points, Finger Touch 20 Points
  Accuracy	Finger ±1.0mm (Over 90% area), Passive Pen
  Response Time	≤ 6ms
  Touch Resolution	32,768 x 32,768
  Surface Protection	4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness)
  Touch Tools	Finger, Stylus, Glove, Opaque Objects
  Operating System	Android™ v11
  Internal Storage	64GB (eMMC Flash)
  External USB	Yes (FAT32 / NTFS)

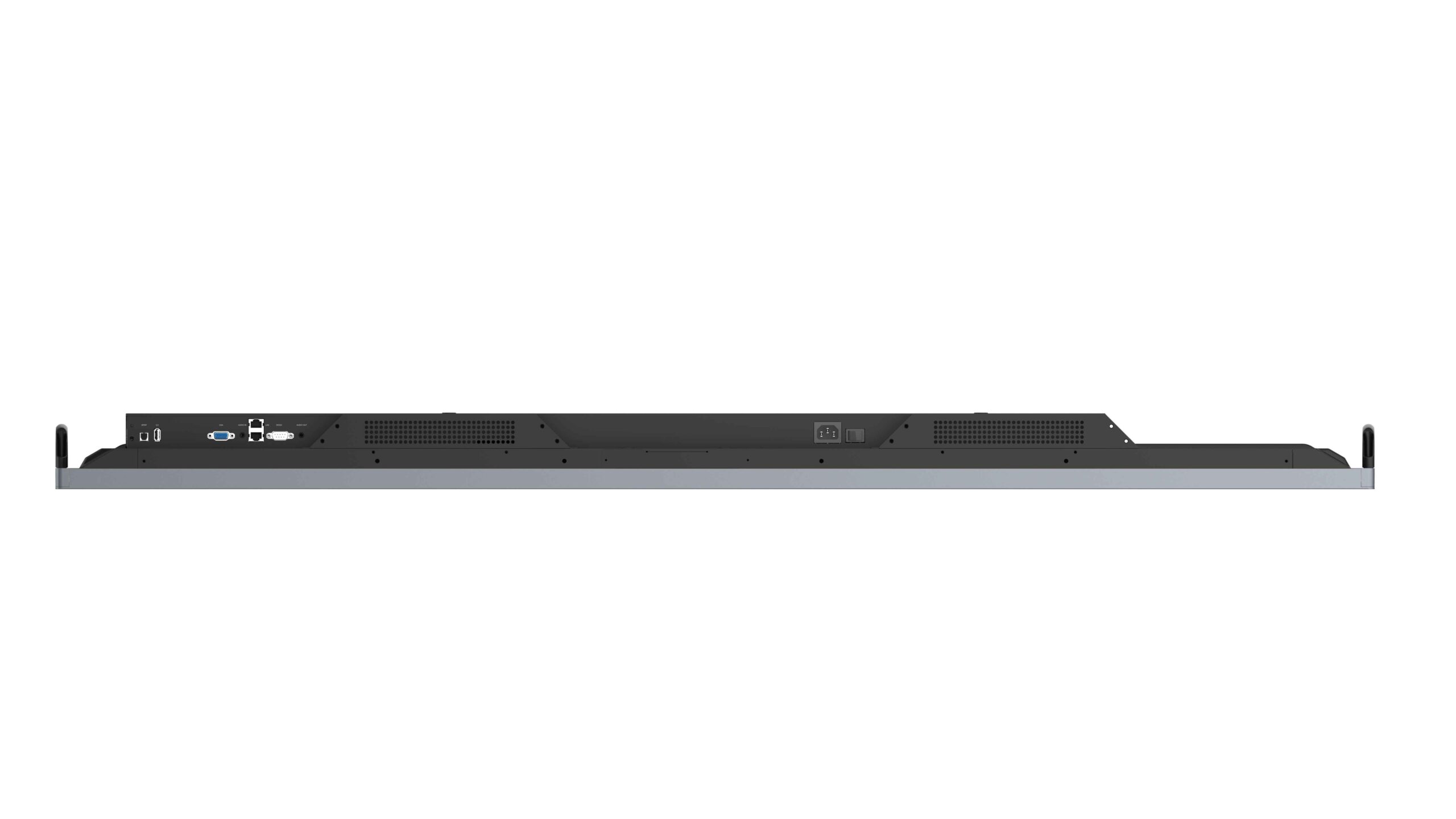

  Connectivity
  Input Display	HDMI v2.0 x3 (HDCP v2.2 Compliant), USB-C x1, VGA-In (x1)
  Audio In	Audio-In (3.5mm) x1
  Output Display	HDMI-Out v1.4 x1 1080p@60Hz
  Audio Out	Audio-Out (3.5mm) x1, SPDIF-Out x1
  Internet	LAN (RJ45, 10/100/1000M) x2
  Control	RS232-In x1
  Wireless
  WiFi (USB Module)	WiFi 6; 802.11 a/b/g/n/ac/ax (2.4GHz/6GHz) USB dongle/Built-in
  Bluetooth	V5.0
  I/R Receiver	Front x1 (±25° Angle, >8m Distance)
  USB
  Front USB-A 2.0	x2
  Side USB-A 3.0	x3, USB-B 2.0 x2 (For Touch Port), USB-C 3.1 (Power 65W) x1
  Bottom USB-A 3.0	x1, USB-B 2.0 x2 (For Touch Port)
  Default Apps
  Wireless Collaboration	Screen mirroring (NovoConnect SW/App), Screen duplication (up to 6) over the corporate network (NT LiveScreen/ NT LiveReceiver), White board (Note), Screen login protection (PIN Code / RFID / NFC Tag), Screen Recording (NT Minutes), BYOM (optional), Google Play, NT App Store
  Platform compatibility (BYOD)	Windows, Ubuntu, MacOS, Chromebook, iOS and Win 10 Miracast
  Digital Signage	Digital signage (NovoDS)
  Expansion	Windows (OPS) Intel Standard 80 Pin OPS (Optional)
  Audio	Speakers 16W x2 (Stereo)
  Sensor	Light Sensor
  Device Management Software/Command	Free Software- Remote Manager, DMD, Supports Crestron IP command
  Power
  Power Supply (Internal)	AC 100 – 240V, 50/60Hz (4.5A)
  Consumption	450W
  Standby Mode	<0.5W (Standby)
  Physical Characteristics
  Dimensions (L x H x D) mm	1,957.4 x 1,160.1 x 91.4
  Weight	65.75 kg
  VESA Mounting (FPMPMI)	6 – M8 × 25mm, 800 x 600
  Color	Silver
  Accessories
  Standard	AC Power Cord (3m), WiFi 6 USB Module, HDMI Cable, Touch USB Cable, Audio Cable, Stylus (x2), Remote Control (W/Batteries), Documentation Kit, Wall Mount Kit
  Optional	LauncherPlus, LauncherOne
  Warranty
  Standard	3-Year warranty on the panel
  Education	5-Year warranty on the panel, where end customer is a school, university, or training center. Education product registration required within 180 days of purchase for extended warranty to be valid
