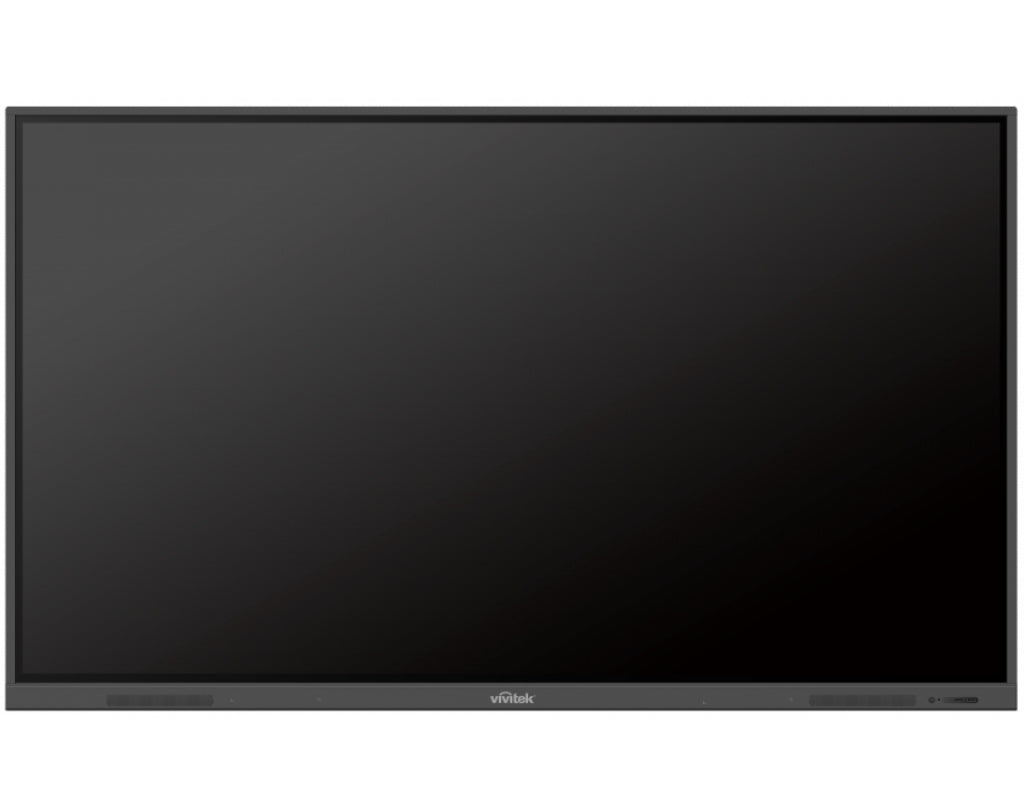

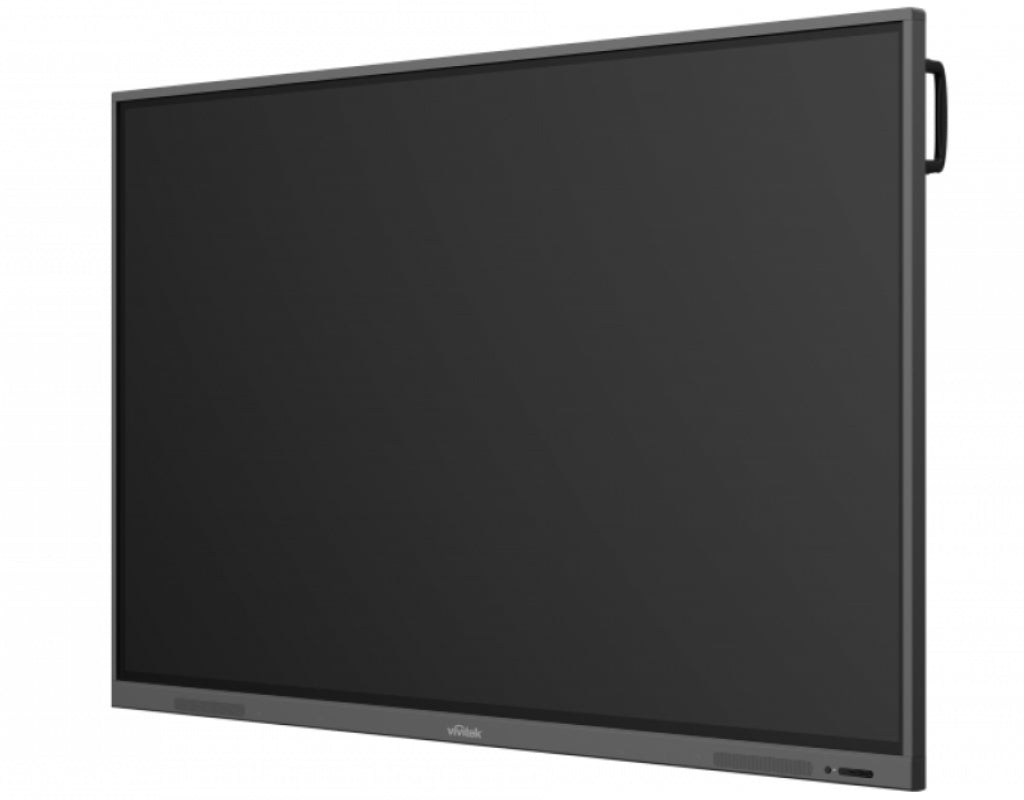

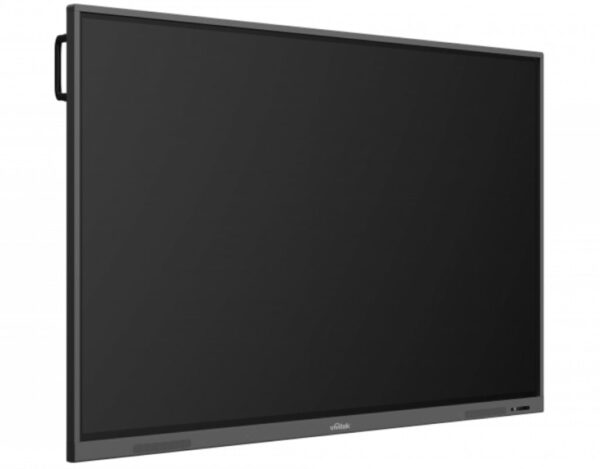

Vivitek NovoTouch EK653i 65” 4K Android Interactive Display

Vivitek NovoTouch EK653i 65” 4K Android Interactive Display

• Description
• Specifications
• Downloads

• NovoTouch All-in-One Collaborative
  Touch Panel Suited for both
  Corporate and Education Users

  The NovoTouch is the ultimate All-in-One Touch Panel, that combines a 4K –UHD resolution, Wireless Collaboration, Video Conferencing, Digital Whiteboard, and Digital Signage functionalities. Designed to take business meetings or education sessions to a new level of collaboration and interaction. With the NovoConnect built in solution, meeting participants can extend the laptop screen to the flat panel and compare information and collaborate with each other. The moderator feature keeps you in control of the meeting, while on-screen annotation allows for collaboration in real time. The NovoTouch is fully compatible with the ever-popular BYOD practice. Meanwhile, hybrid meetings with on-site and remote participants are facilitated with the video conferencing capabilities that include pre-installed Zoom, Teams or Skype for Business. Furthermore, the NovoTouch panel can be switched from collaboration to Digital Signage mode in between meetings to transform idle screens into digital announcement boards.

  Features
  4K-UHD (3840 x 2160) resolution
  In-Plane Switching (IPS-ADS) panel technology offers outstanding detail and stunning visuals with Hyper-Viewing Angle
  Flawless touch annotation provides high accuracy, fast response time and smooth gesture recognition
  Anti-glare and durable surface protects against scratches or screen damage
  Android 8.0 and Google G-suite are pre-installed, along with many Apps
  Remote Manager for centralized device management
  AES-256 Encryption, Password Protected,Dual Network Environment, ISO 27001 Certified
  Available in sizes 65’’, 75” and 86’’

  Wireless Collaboration
  AV/IT convergence – simple, secure wireless collaboration
  Up to 64 participants can be connected and up to 4 can share their screen simultaneously
  Dynamically switch between participants’ screens
  Annotate and highlight your discussion points in real time
  Screen duplication to multiple locations over the network
  NT app store enables you to access pre-selected apps, additional apps available to download separately
  Video Conferencing compatible with preloaded popular conferencing Apps
  Connect wirelessly via webbrowser, App, software or optional USB LauncherPlus

  Digital Signage
  The embedded NovoDS digital signage will transform NovoDisplay into a signage board
  4K to 4K dual-video decoding
  Design, publish, manage, 3 simple steps to create digital signage
  Optional NovoDS Cloud allows signage playlist access and controls via a web interface, from your computer or mobile devices

• Feature	Specifications
  Model Name	EK653i
  DISPLAY
  Panel Size	65”
  Type/Technology	Backlit D-LED (IPS-ADS)
  Brightness	500 cd/m²
  Contrast Ratio	4000:1
  Native Resolution	4K Ultra-HD (3840 x 2160)
  Viewing Angle (H/V)	178° / 178°
  Aspect Ratio	16:9
  Refresh Rate (Hz)	60 Hz
  Estimated Life Time (Typ)	30,000 Hours
  Display Color (Bit)	1.07 Billion
  Installation Orientation	Landscape
  Daily Operation (Hours/Days)	16/7
  TOUCH
  Technology	Infrared Touch
  Touch Points	Annotation 10 Points, Finger Touch 20 Points
  Touch Resolution	32,768 x 32,768
  Surface Protection	4mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness)
  Touch Tools	Finger, Stylus, Glove, Opaque Objects
  OPERATING SYSTEM
  System Version	Android™ v8.0
  CPU	Multi-Core High-Performance ARM®CPU
  GPU	4*Mali™ G51
  RAM	3GB DDR3
  Internal Storage	16GB (eMMC Flash) (About 9GB User Availability)
  CONNECTIVITY
  Input	Display HDMI v2.0 (x3), VGA-In (x1)
  Audio	Audio-In (3.5mm) (x1)
  Output	Display HDMI-Out v2.0 (x1)
  Audio	Audio-Out (3.5mm) (x1), SPDIF-Out (x1)
  Internet	LAN (RJ45) (x1)
  Control	RS232-In (x1)
  Wireless
  WiFi (USB Module)	IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
  I/R Receiver	Front (x1) (±25° Angle, >8m Distance)
  USB
  Front USB 2.0	(x2)
  Side USB 3.0	(x3), USB Type B (x2)(For Touch Port)
  Bottom USB 2.0	(x1)
  DEFAULT APPS
  Wireless Collaboration	Screen mirroring (NovoConnect), Screen duplication over the corporate network (NT LiveScreen/ NT LiveReceiver), White board (Note), Screen login protection (Screen Lock), Screen Recording (NT Minutes), Video Conferencing, Over 50 Apps Built-In (NT App Store)
  Digital Signage	Digital signage (NovoDS)
  EXPANSION
  Windows (OPS)	Intel Standard 80 Pin OPS
  AUDIO	Speakers 16W x2 (Stereo)
  POWER
  Power Supply (Internal)	AC 100 – 240V, 50/60Hz (3.0A), AC 100 – 240V, 50/60Hz (4.0A), AC 100 – 240V, 50/60Hz (4.5A)
  Consumption	300W, 400W, 450W
  Standby Mode	<0.5W (Standby)
  PHYSICAL CHARACTERISTICS
  Dimension (L x H x D) mm	1,488.7 x 897 x 92 (58.6” x 35.3” x 3.6”), 1,709.39 x 1,020.05 x 91.2 (67.3” x 40.1″ x 3.6”), 1,957.4 x 1,160.1 x 91.4 (77.1” x 45.7″ x 3,6”)
  Weight	41.4kg (91.3lbs), 55.3kg (122lbs), 70.8kg (156.1lbs)
  VESA Mounting (FPMPMI)	4 – M6 × 25mm, 600 x 400mm (23.6” x 15.7”), 4 – M8 × 25mm, 800 x 400mm (31.5” x 15.7”)
  Color	Grey
  ACCESSORIES
  Standard	AC Power Cord, VGA Cable, HDMI Cable, USB Cable, Audio Cable, Stylus (x2), Remote Control (W/Batteries), Wall Mount Kit, WiFi USB Module, Documentation Kit
  Optional	LauncherPlus WQL400, LauncherPlus QL300

• Description	Downloads
  Vivitek NovoTouch Series Datasheet	Downloads
