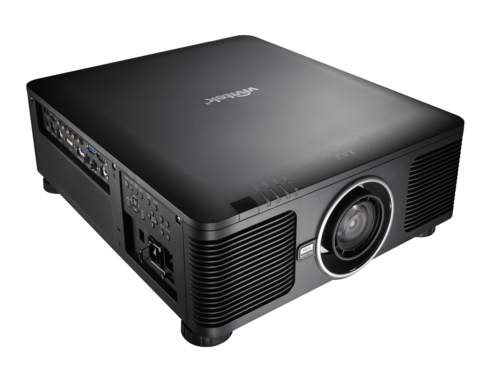

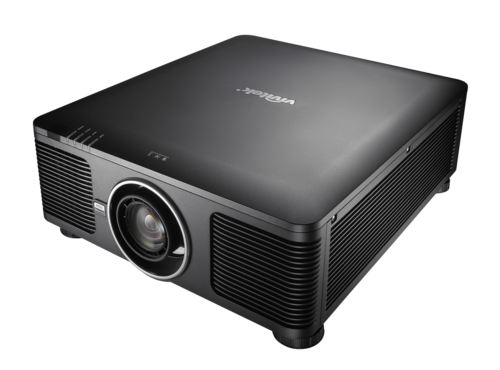

Vivitek DU8395Z-BK Brings Superb Laser Projector – 15000 Lumens

Vivitek DU8395Z

Brings Superb Laser Projector – 15000 Lumens

• Description
• Specifications
• Downloads

• Power and performance
  The DU8395Z is designed for advanced projection requirements such as mapping, edge blending or picture-in-picture mode. The WUXGA laser projector offers a constant light output of 15,000 lumens and a 3,000,000:1 dynamic contrast ratio for clear, crisp, and bright projection image. The device offers an compelling mix of features and connectivity options.Vivitek DU8395Z
  Vivitek DU8395Z

  Key features
  DLP® technology for vibrant and rich picture quality
  Impressive 15,000 ANSI lumens of brightness, WUXGA resolution, and 3,000,000:1 Dynamic contrast ratio for clear, crisp and bright projection
  Long lasting laser light source for constant brightness level and color performance for +30,000 hours operations in Eco mode
  Installation flexibility is ensured with 8 optional lenses from 0.38:1 to 5.31-8.26:1 throw ratio range
  Motorized lens with Lens Positioning Memory (LPS)
  Supported 3G-SDI / HDBaseT™ interface for distribution of HD video and digital audio content
  Excellent color performance Rec709, EBU, SMPTE, Dynamic Black Settings
  Projection image alignment is built-in, along with multi-screen edge-blending, warping and keystone correction features and 360° installation angle flexibility
  High Standard Anti-Dust IP6X compliance to extend projector life
  Supported network & projector installation control software

• Native Resolution	WUXGA (1920 x 1200)
  Brightness	15000 ANSI Lumens
  Contrast Ratio	30,000:1 / Dynamic: 3,000,000
  Max. Supported Resolution	WUXGA (1920 x 1200) @60Hz
  Native Aspect Ratio	16:10
  Lamp Life and Type	Lamp free design. Laser light source lasts up to 20,000 hours
  Display Type	Single chip DLP® Technology by Texas Instruments
  Chip Size	0.67” DMD
  Throw Ratio	8 optional lenses from 0.38 to 8.26:1 throw ratio range
  Zoom Ratio	Motorized Zoom & Focus
  Lens Shift Range	Vertical: +64%, -33%; Horizontal: +24%, -14%
  Offset	Motorized Lens Shift
  Keystone Correction	Vertical ±40°, Horizontal ±60°
  Video Compatibility	SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)
  I/O Connection Ports	VGA-In (15pin D-Sub), HDMI (x2), DVI-D, Component (5 BNC) (RGBHV) , VGA-Out (15pin D-Sub), RJ45 (1: HDBaseT/LAN), 12v Trigger, RS-232, 3D-Sync (x2: In and Out), 3G-SDI (x2: In and Out), Remote Jack(wire remote)
  Dimensions (W x D x H)	500 x 580 x 205 mm
  Weight	29 kg
  Noise Level	42dB (Eco)
  Power	Supply: AC 100-240V. 50/60Hz. Consumption: <0.5W (Standby)
  3D Ready(DLP link, PC+Video)	Yes
  Standard Accessories	VGA Cable, User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
  Optional Accessories	Remote Control P/N: 5042221900
  Warranty	Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)
  UPC Code	DU8395Z-BK: 813097 025111

• Item	Type
  Vivitek DataSheet	Download
  Vivitek User Manuals	Download
