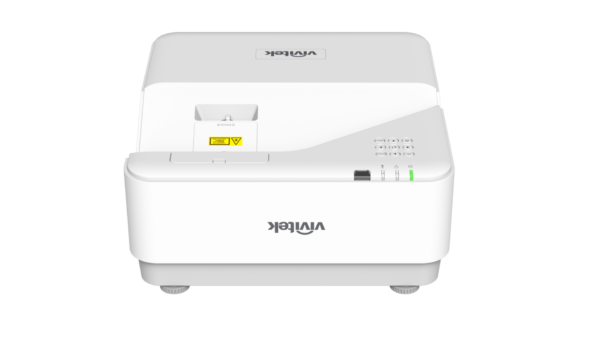

Vivitek DU775Z-UST Ultra Short Throw Laser Projector – 5000 Lumens
Vivitek DU775Z-UST
Ultra Short Throw Laser Projector – 5000 Lumens
- Description
- Specifications
- Downloads
-
WUXGA Ultra-Short-Throw Laser projector with Best in Class image quality
The DU775Z-UST, is a highly advanced Ultra Short Throw Laser Projector, perfectly suited to the needs of museums, galleries, educators, training spaces, immersive applications, hospitality and signage applications. Its compact footprint, large image size and 4K-UHD compatibility ensure it is well-suited to locations where space is at a premium but a large, powerful, projection image is still required. The DU775Z-UST is designed with a new Tele-centric lens system to achieve a very low defocus range and flare value at large image sizes, while the Concave Reflect Mirror reduces any image distortion. It offers native WUXGA resolution and a high brightness of 5000 ANSI lumens with 3,000,000:1 contrast ratio.Key features
DLP® and BrilliantColor™ 0.47” DMD panel technology
High-Performace 0.25:1 Ultra Short Throw with Tele-centric lens designed
High brightness of 5,000 lumens with 3,000,000:1 contrast ratio
Up to 4K-UHD (3840 x 2160) @60Hz signal compatibility
Large projection 150″ (100% focus) without image distortion
360° Installation, the projectors can be installed with no limitation on projection angle
Power USB-A for signage players or wireless collaboration devices
Support network control / Vivitek PJ-Control for easy communications and remote control over an IT network
Optional interactive function available in IR Pen & Finger Touch
Integrated network monitoring and management solutions including Crestron® RoomView™, as well as others
5 year education warranty -
Native Resolution WUXGA (1920×1200) Brightness 5000 ANSI Lumens Contrast Ratio 3,000,000:1 Max. Supported Resolution UHD (3840 x 2160) @60Hz Native Aspect Ratio 16:10 Lamp Life and Type Laser light source 20,000 / 30,000 Hours (Normal / Eco. Mode) Display Type Single chip DLP® Technology by Texas Instruments Chip Size 0.48” DMD Throw Ratio 0.25:1 Image Size (Diagonal) 70″- 150″ (100% Focus) Projection Distance 336mm~739mm Zoom Ratio Fixed Offset 122% ±5% Interactivity Optional Keystone Correction Vertical: ±15 steps Speakers 10W x 2 I/O Connection Ports VGA-In (15pin D-Sub) (x1), HDMI (HDMI-In x2, HDMI-Out x1), Audio-In (RCA) , Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (Mini-Jack), RJ45, RS-232, 3D-Sync, USB A (5V/2A (Power Only)), USB B (Service) Dimensions (W x D x H) 380 x 405 x 150 mm Weight 8.9 kg Noise Level 32dB/27dB (Normal/Eco. Mode) Control Software PJ-Tool V3.0 3D Ready(DLP link, PC+Video) Yes Standard Accessories User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord Optional Accessories Remote Control P/N: 5042149001, Interactive Pen P/N: IR Pen: DT01, Finger Touch: DT03, Optional Wall Mount: %WM-4 Warranty Standard Laser Phosphor Projector Warranty: 5-Year warranty on projector/ 5-year or 10000h on the Laser Phosphor illumination source (whichever comes first) UPC Code 813097025463 -
