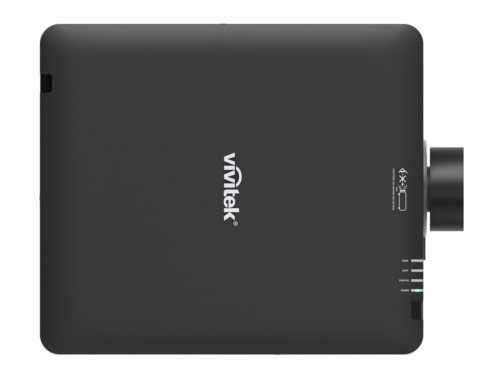

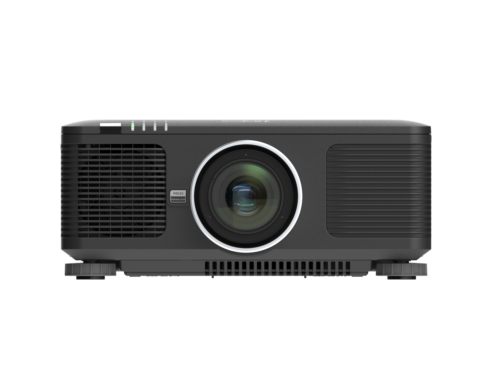

Vivitek DU6298Z Brings Superb Laser Projector – 10000 Lumens

Vivitek DU6298Z

Brings Superb Laser Projector – 10000 Lumens

• Description
• Specifications
• Downloads

• Power and performance
  The DU6298Z WUXGA is an extreme versatile large venue projector, designed to deliver a brightness of 10,000 ANSI Lumens, 30,000:1 contrast ratio for outstanding picture quality and high flexibility for installation. With Vivitek’s next-generation colour technology, multiple modes, hardware features and High Dynamic Range (HDR10) support, DU6298Z users can be assured of rich, vibrant and precise colours that help create brilliant, accurate, high contrast, full spectrum images. With a user-friendly projector control tool and support for nine motorized lenses, the projectors are specifically designed to handle portrait mode installation and 360° operation for projection from virtually any angle.Vivitek DU6298Z
  Vivitek DU6298Z

  Key features
  DLP® technology for vibrant and rich picture quality
  High brightness 10.000 ANSI Lumens with 30,000 hrs. laser life (Eco mode)
  Powered Lens Control with Lens Positioning Memory (LPS)
  Excellent color performance – Rec 709, HDR, Dynamic Black Settings
  Constant Brightness to extend light source life & easy blending
  High Standard Anti-Dust compliance to extend projector life
  360° free angle & geometric adjustment provides a flexible installation options
  HDMI 2.0 support UHD-4K signal
  HDBaseT™ interface for the transmission of high quality audio and video (4K) data over 100M
  Supported network & projector installation control software
  Installation flexibility is ensured with 9 optional lenses from 0.38:1 to 5.31-8.3:1 throw ratio range

• Native Resolution	WUXGA (1920 x 1200)
  Brightness	10000 ANSI Lumens
  Contrast Ratio	Dynamic Contrast Ratio 3,000,000:1
  Max. Supported Resolution	UHD (3840×2160) @60Hz
  Native Aspect Ratio	16:10
  Lamp Life and Type	Laser light source lasts up to 20,000 hours
  Display Type	Single chip DLP® Technology by Texas Instruments
  Chip Size	0.67” DMD
  Throw Ratio	9 optional lenses from 0.38 to 8.26:1 throw ratio range
  Zoom Ratio	1.25x Power Zoom / Power Focus
  Lens Shift Range	Vertical: -15% to +55%, Horizontal: -5% to +5%
  Keystone Correction	Vertical: +/-30 Steps; Horizontal: +/-30 Steps
  Video Compatibility	SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i)
  I/O Connection Ports	VGA-In (15pin D-Sub), HDMI (2x), DVI-D, Component (5 BNC) (RGBHV) , Audio-In (RCA) , VGA-Out (15pin D-Sub), Audio-Out (RCA), Audio-Out (Mini-Jack), RJ45 (HDBaseT/LAN), 12v Trigger, RS-232 (In 1x / Out 1x), 3D-Sync (3D-Sync In 1x/Out 1x), USB A (Power: 5V/2.0A), USB miniB (for Service), Microphone (Mini-Jack), Remote Jack(wire remote)
  Dimensions (W x D x H)	580 x 500 x 210 mm
  Weight	26 kg
  Noise Level	38dB/35dB (Normal/Eco. Mode)
  Power	950W (Normal Mode), 760W (Eco. Mode), <0.5W (Standby Mode), <2W (LAN Standby Mode)
  Control Software	Projector Installation Control Tool
  3D Ready(DLP link, PC+Video)	Yes
  Standard Accessories	VGA Cable, User Manual (CD), Lens Cap, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
  Optional Accessories	Remote Control P/N: 5042221900
  Warranty	Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)
  UPC Code	DU6289Z-BK: 813097024428

• Item	Type
  Vivitek DataSheet	Download
  Vivitek User Manuals	Download
