Vivitek DK553 NovoDisplay 55″ 4K Digital Signage Display

Vivitek DK553 NovoDisplay 55″ 4K Digital Signage Display

• Description
• Specifications
• Warranty
• Downloads

•
  NovoDisplay DK
  Digital Signage Display with Collaboration Functionality
  The NovoDisplay DK offers 4K Ultra-HD (3,840 x 2,160) resolution. With the included NovoDS Digital Signage software you will create, publish and manage content ranging from promotional announcements to company messages. With the added NovoConnect Wireless Collaboration solution, the NovoDsiplay can easily be switched to presentation mode. The NovoDisplay DK is suitable for commercial applications such as hospitality, retail, education and business.

  4K Ultra-HD (3,840 x 2,160).

  In-plane switching (IPS-ADS) panel technology offers outstanding details and stunning visuals with Hyper-Viewing Angle.

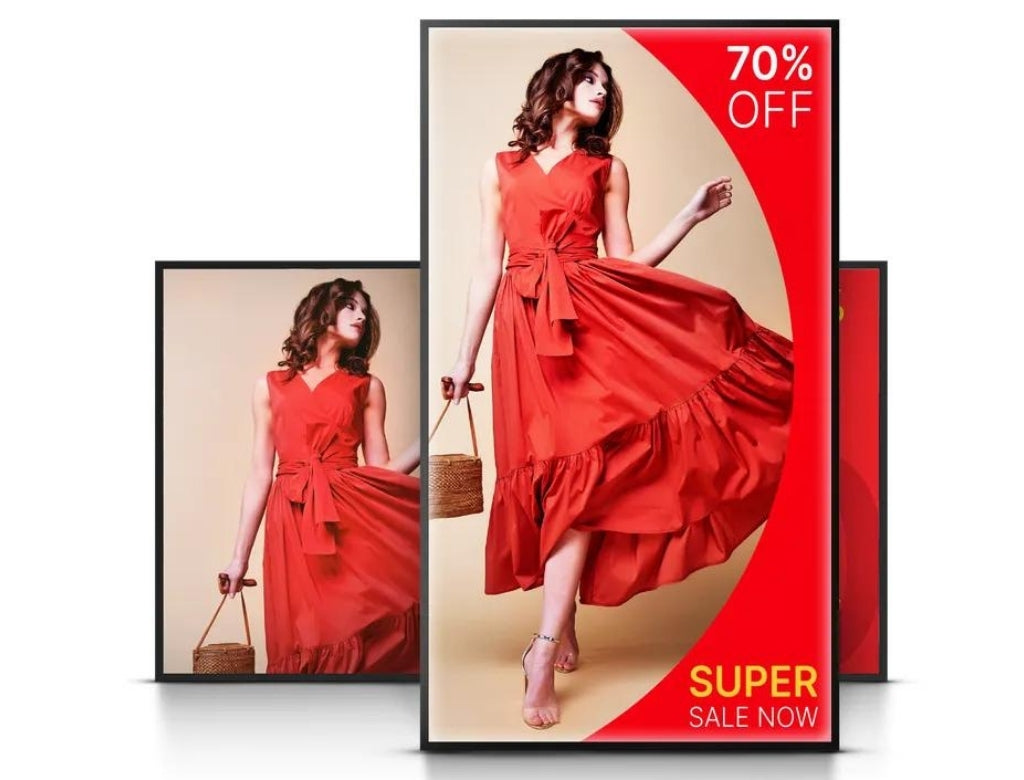

  Support Landscape & Portrait Installation.

  Wireless Collaboration

  Wireless content sharing from laptop, tablet or smartphone to the central screen.

  Video Conferencing compatible with preloaded popular conferencing Apps.

  Up to 8 participants can be connected and up to 2 can share their screen simultaneously.

  Digital Signage

  The embedded NovoDS digital signage allows to create, publish and manage promotional announcements and company messages.

  The optional NovoDS Cloud offers a Bulletin board template that allows for easy creation of a pin board layout and interactivity with documents.

  Design, publish and manage, 3 simple steps to create digital signage.

  People counting widget to monitor and manage real time occupancy for use in public spaces.

  Built for 24/7 operation.

• Attribute	Specification
  Screen Size	55″
  Resolution	4K
  Panel Surface	NA
  Brightness cd/m² (typ.)	500
  Installation Orientation	Portrait / Landscape
  Viewing Angle (H/V)	178° / 178°
  Daily Operation	24/7
  Memory	DDR3 4G
  Storage	eMMC 32GB
  Speaker	10W x2 (stereo)
  Ambient Light Sensor	Yes
  Wireless	WiFi 5 / Bluetooth 4.2
  Interactivity	NA
  Internet	LANx1
  Low Blue Light & Flicker Free	NA
  OPS expansion	Android 80pin, VKG-G1 (option)
  Bezel Even	Yes
  USB C	NA
  Software – Remote Management Tool	Yes
  Google Play Store	NA
  Novo Stage	NA
  Software – Wireless Collaboration	Yes (2 splits / 4 splits w OPS)
  Screen Recording	NA
  Screen Sharing	NT LiveReceiver Only (w OPS)
  On-Screen Annotation	NA
  White Board	NA
  Miracast	Yes (w OPS)
  Google Cast	Yes
  AirPlay	Yes
  BYOM	NA
  USB plug-and-play	Yes (w LauncherPlus)
  Software – Digital Signage
  Creating / Edit Playlist	Yes
  Publish Content	Yes
  Scheduling Playback	Yes
  Content Management System	Yes
  Screen Orientation	Portrait / Landscape
  Announced Board	Yes
  Social Media Integration	Yes (Twitter, Instagram, Facebook)
  YouTube/IP Streaming	Yes
  Calendar	Yes
  System
  Power Supply	AC 100 – 240V, 50/60Hz
  Power Consumption	≤198W
  Dimension	1,241.7 x 729.3 x 76.5mm
  Weight	14.2kg

• Vivitek aims for the utmost level of satisfaction and offers a warranty scheme for the EMEA region where all Vivitek’s projectors are warranted against failure for a period of two, three or five years depending on the model and number of hours operated.

  Standard warranty
  3-Year warranty on projector, 1-year or 1,000h on lamp (whichever comes first)


  Entry level models warranty
  2-Year warranty on projector, 1-year or 1,000h on lamp (whichever comes first).


  Education models warranty
  5-Year warranty on projector, 3-year or 2,000h on lamp (whichever comes first). ST/UST models and projectors listed in the education portfolio and where end customer is a school or university. Education product registration required within 90 days of purchase for extended warranty to be valid.

  Ultra Short Throw Laser Phosphor warranty
  3-Year warranty on projector/ 3-year or 10. 000h on the Laser Phosphor illumination source (whichever comes first).

  Large Venue projector warranty for UHP lamp based models
  5-Year warranty on projector, 1-year or 1,000h on lamp (whichever comes first).

  Large Venue projector warranty for Laser Phosphor models
  5-Year warranty on projector, 5-year or 20,000h on the Laser Phosphor illumination source.(Whichever comes first)

  Standard Laser Phosphor Projector Warranty
  5 -Year warranty on the projector; 5 -year or 10,000h on the Laser Phosphor illumination source (whichever comes first)

  Vivitek is commited to deliver products of high reliability to the market to meet customer requirements, as well as a high-level of satisfaction and enjoyment
