Vivitek DK433 NovoDisplay 43″ 4K Digital Signage Display

Vivitek DK433 NovoDisplay 43″ 4K Digital Signage Display

• Description
• Specifications
• Warranty
• Downloads

•
  NovoDisplay DK
  Digital Signage Display with Collaboration Functionality
  The NovoDisplay DK offers 4K Ultra-HD (3,840 x 2,160) resolution. With the included NovoDS Digital Signage software you will create, publish and manage content ranging from promotional announcements to company messages. With the added NovoConnect Wireless Collaboration solution, the NovoDsiplay can easily be switched to presentation mode. The NovoDisplay DK is suitable for commercial applications such as hospitality, retail, education and business.

  4K Ultra-HD (3,840 x 2,160).

  In-plane switching (IPS-ADS) panel technology offers outstanding details and stunning visuals with Hyper-Viewing Angle.

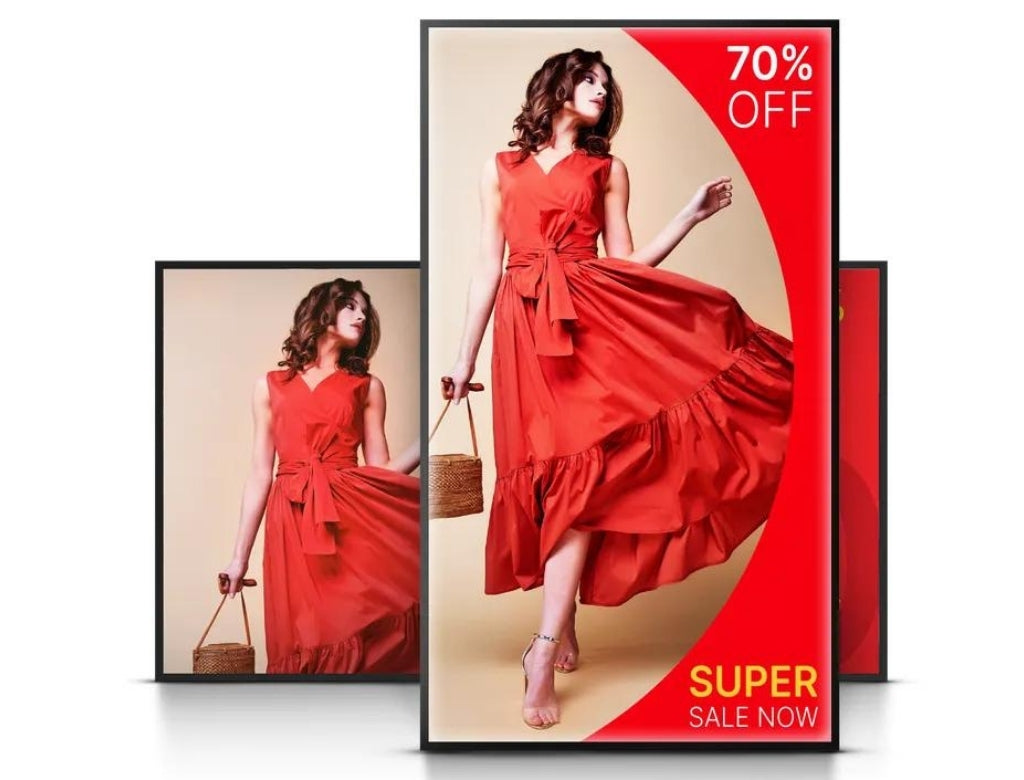

  Support Landscape & Portrait Installation.

  Wireless Collaboration

  Wireless content sharing from laptop, tablet or smartphone to the central screen.

  Video Conferencing compatible with preloaded popular conferencing Apps.

  Up to 8 participants can be connected and up to 2 can share their screen simultaneously.

  Digital Signage

  The embedded NovoDS digital signage allows to create, publish and manage promotional announcements and company messages.

  The optional NovoDS Cloud offers a Bulletin board template that allows for easy creation of a pin board layout and interactivity with documents.

  Design, publish and manage, 3 simple steps to create digital signage.

  People counting widget to monitor and manage real time occupancy for use in public spaces.

  Built for 24/7 operation.

• Brand/ Model Name	DK433	DK553	DK653	DK753	DK863
  Display
  Panel Size	43”	55”	65”	75”	86”
  Type/Technology	Backlit D-LED
  Brightness (Typ)	500 cd/m²
  Native Resolution	4K Ultra-HD (3840 x 2160)
  Viewing Angle (H/V)	178° / 178°
  Aspect Ratio	16:9
  Response Time (MS)	8 ms
  Estimated Life Time	50,000 Hours
  Display Color (Bit)	1.07 billion (10-bit)
  Installation
  Orientation	Portrait & Landscape
  Daily Operation	24/7
  Bezel Size	43”- 7.9mm/ 55”- 9.9mm/ 65”- 14.8mm/ 75”- 15.3mm/ 86”- 18mm
  Connectivity
  Input	HDMI v2.0(ARC, HDCP v2.2) x2, Audio-In (3.5mm) x1 RS-232 (RJ45) x1
  Output	HDMI-Out x1 4K@60Hz (Optional), USB–A x2 (Support up to 32GB), microSD Slot x1 (Support up to 32GB), Audio-Out (3.5mm) x1, RS-232 x1, RJ45 x1
  WiFi	802.11ac x1
  IR Receiver (Front)	x1 (±25° Angle, >8m Distance)
  System
  OS Version	Android™ v9.0
  Internal Storage	32GB (eMMC Flash) Standard
  Digital Signage
  Supported Widget	Announcement Mode, Agenda, Social Networks, Weather, Calendar, Clocks, HTML 5 Rendering, Remote Media, People Counting (camera not included)
  Video decoding	Single 4K@60fps, Dual 1080p@30fps
  Wireless Collaboration	BYOD Supported
  System
  Simultaneous Connections	Simultaneous
  On-screen NovoConnect Lite – 8 connections / 1, 2 split screen
  Speaker	Internal 10 x2 (Stereo)
  Power
  Power Supply (Internal)	AC 100-240V, 50/60Hz
  Consumption (without OPS)	≤198W	≤198W	≤220W	≤330W	≤410W
  Standby Mode	<0.5W (Standby)
  Physical Characteristics
  Dimension (L x H x D)mm	961.6 x 567.3 x 72.8	1,243.2 x 714 x 69.6	11461.4 x 846.9 x 80.4	1682 x 962.2 x 76.3	1,714.2 x 992.4 x 97.2
  Weight Kg	8.9kg	14.2kg	22.8kg	31.2kg	42.8kg
  VESA Mounting (FPMPMI)	4 – M6, 400 x 400mm	4 – M8, 600 x 400mm
  Frame Color	Black
  Accessories	Standard AC Power Cord, Remote Control, Documentation Kit
  Optional	NovoDS Cloud, OPS Package (including NovoConnect full version, NT Live 2-way, and BYOM), LauncherPlus(WQL-400), LauncherOne, VIVOTEK SC81831 camera, Wall Mount Kit
  Warranty	Standard 3 years warranty

• Vivitek aims for the utmost level of satisfaction and offers a warranty scheme for the EMEA region where all Vivitek’s projectors are warranted against failure for a period of two, three or five years depending on the model and number of hours operated.

  Standard warranty
  3-Year warranty on projector, 1-year or 1,000h on lamp (whichever comes first)


  Entry level models warranty
  2-Year warranty on projector, 1-year or 1,000h on lamp (whichever comes first).


  Education models warranty
  5-Year warranty on projector, 3-year or 2,000h on lamp (whichever comes first). ST/UST models and projectors listed in the education portfolio and where end customer is a school or university. Education product registration required within 90 days of purchase for extended warranty to be valid.

  Ultra Short Throw Laser Phosphor warranty
  3-Year warranty on projector/ 3-year or 10. 000h on the Laser Phosphor illumination source (whichever comes first).

  Large Venue projector warranty for UHP lamp based models
  5-Year warranty on projector, 1-year or 1,000h on lamp (whichever comes first).

  Large Venue projector warranty for Laser Phosphor models
  5-Year warranty on projector, 5-year or 20,000h on the Laser Phosphor illumination source.(Whichever comes first)

  Standard Laser Phosphor Projector Warranty
  5 -Year warranty on the projector; 5 -year or 10,000h on the Laser Phosphor illumination source (whichever comes first)

  Vivitek is commited to deliver products of high reliability to the market to meet customer requirements, as well as a high-level of satisfaction and enjoyment

• Description	Downloads
  Vivitek Datasheet	Download
  Vivitek Full Line	Download
