• Vision Techconnect TC3-AMP Digital Stereo Amplifier and CS-1900 Pair Ceiling Speakers kit

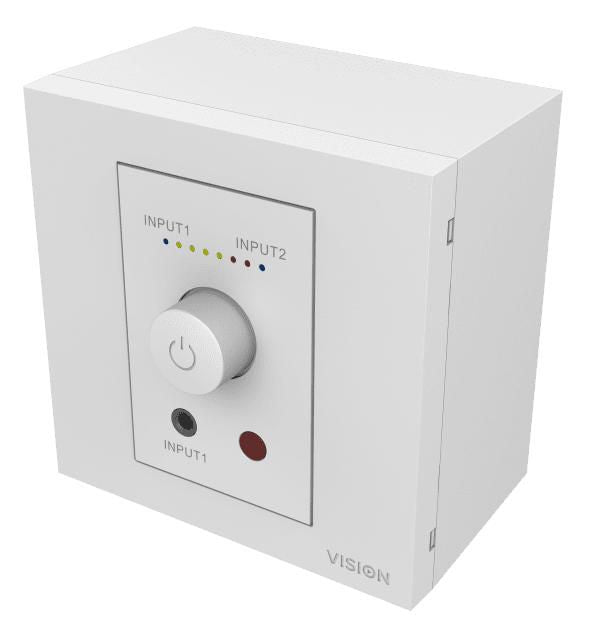

  Front Panel Input
  Two Inputs are wired into the rear with removable phoenix connectors, but Input 1 is also duplicated on the front panel with a minijack socket for convenience. This “half-normalled” input disconnects the rear terminal while in use.

  D-Class Amplifier
  Digital amplifiers use no power unless they are amplifying program, so even on at full volume; unless it is receiving input it is effectively off. Digital amplifiers also have the advantage of running cold so a bulky heatsink is not necessary


  Power Four Speakers
  Don’t let size deceive you: the Techconnect Amp can drive into a 4 ohm load allowing you to power up to four 8 ohm speakers (or two 4 ohm speakers).

  Preset Memory
  By default when power is activated the Techconnect Amp turns on and resumes the most recent settings. For hospitality applications it can be set to return to a preset input and level whenever it is powered on – for example in hotel guest rooms.

  Tactile Dial
  A simple clear control interface makes the product easy to use long press on the dial to power on and off. Short press to change input.

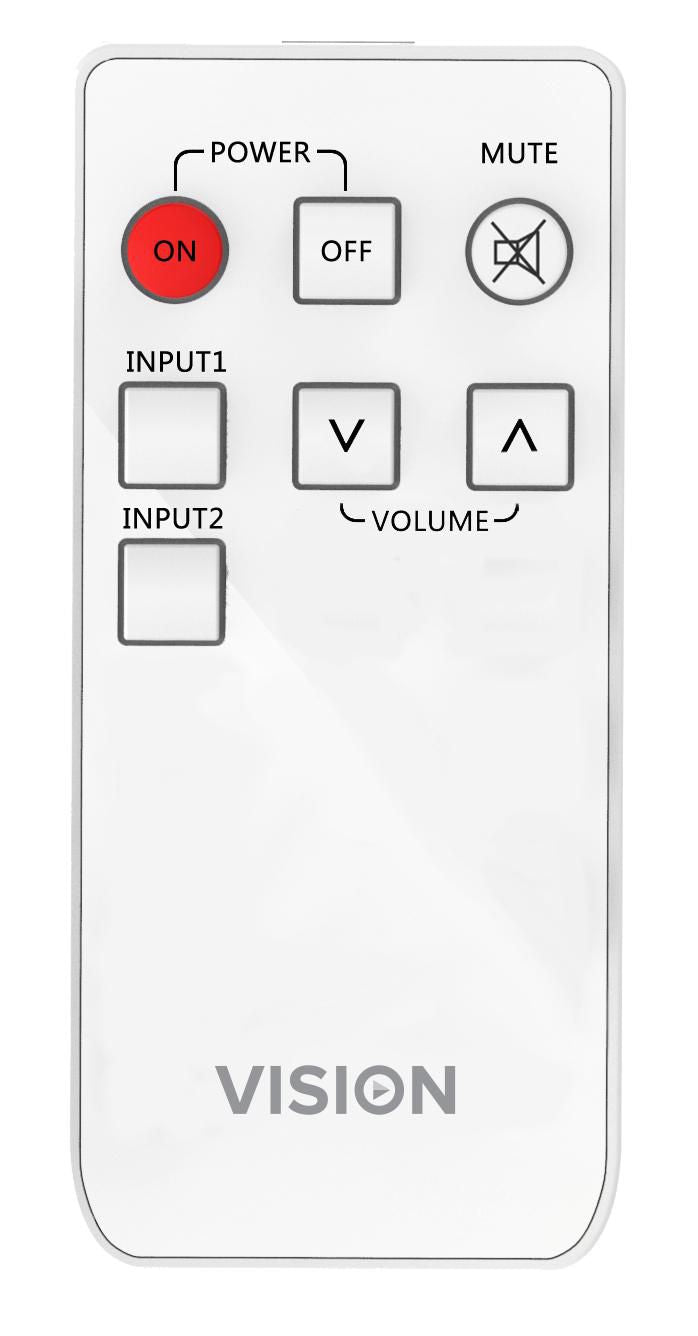

  Remote Control
  A remote control is included and IR receivers are positioned on the front and rear for integration with a control system such as the Techconnect Control. Note: there is no tone control with this amplifier. Vision’s spare remote controls have tone buttons but they do not work with this product.

  Easy to Install and Uninstall
  A robust module that is easy to install or remove and disconnect from the front. Removable phoenix connectors allow non-technical end users to uninstall it very easily if required.

  Cables Included
  Speaker cable is included plus short input cables are included for connection to the rear of adjacent input modules on the Techconnect.

  Secure
  Ideal when you don’t have furniture to sit an amplifier on, and because it is mounted to the wall it is much less obvious as a target for theft.

  Close at Hand
  Can be positioned anywhere in the room making it perfect for training rooms, boardrooms, and classrooms.

  Integrated Techconnect Family
  Included is a single-gang backbox and surround, or alternatively you can mount it in a double-gang surround with other Techconnect modules.

• Category	Feature
  General
  Enclosure Colour	White
  Product Type	Audio system
  Warranty	Lifetime limited
  Miscellaneous
  Components	Amplifier, speaker system
  Accessories	Mounting hardware, power adapter, audio cable, remote, speaker cable
  Power
  Voltage Required	AC 120/230 V (50/60 Hz)
  Connections
  Rear Inputs	2 x audio line-in (Phoenix-type)
  Front Input	Audio line-in (3.5 mm mini-jack)
  Dimensions & Weight
  Speaker System	22.7 x 8.7 x 22.7 cm / 1.52 kg
  Amplifier	4.2 x 6.4 x 4.6 cm / 63 g
  Audio System
  Channels	Stereo, 2 channels
  Output Power	25W per channel
  Input Impedance	50 kOhm
  Input Sensitivity	500 mV
  Functions	Amplifier, in-wall mountable
  Frequency Response	80 – 22000 Hz
  SNR	98 dB
  THD	1%

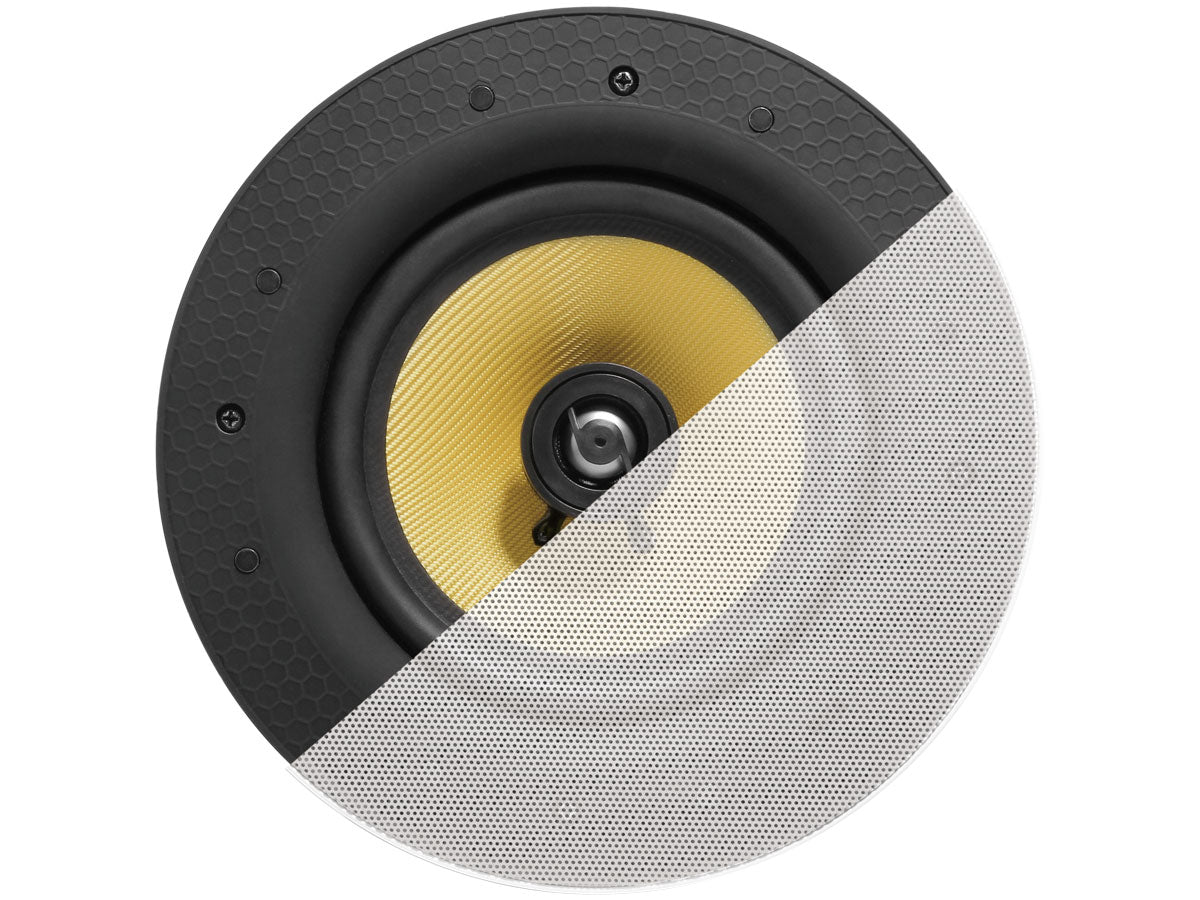

  Speaker System
  Speakers	2-way external, 60W, 8 Ohm
  Frequency Response	60 – 20000 Hz
  Sensitivity	90 dB/Watt
  Drivers	6.5″ woven kevlar woofer, 1″ mid-range, 0.75″ titanium tweeter
